1. Project Introduction

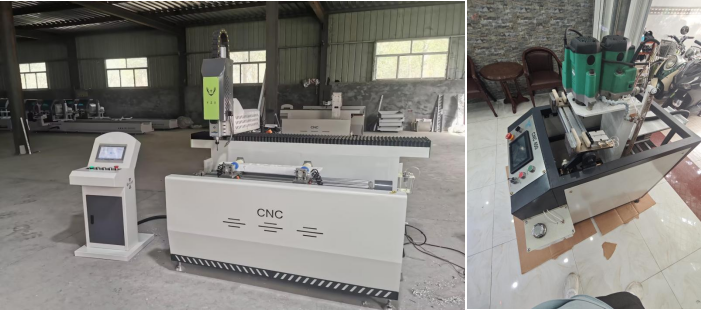

WECON aluminum window drilling and milling machine solution is equipped with LX5V controller, ig series HMI and VD2 series servo. It can process and cut aluminum windows through graphic editing, dxf file import and g-code file import.

2. Debugging Steps

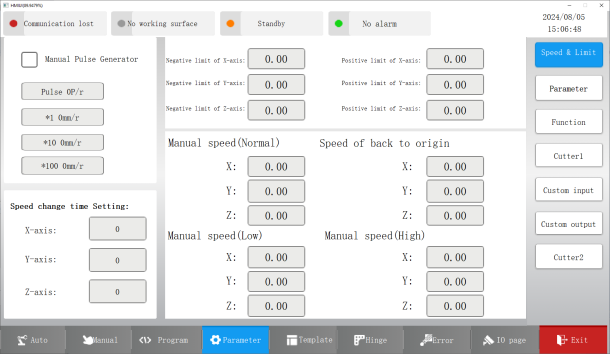

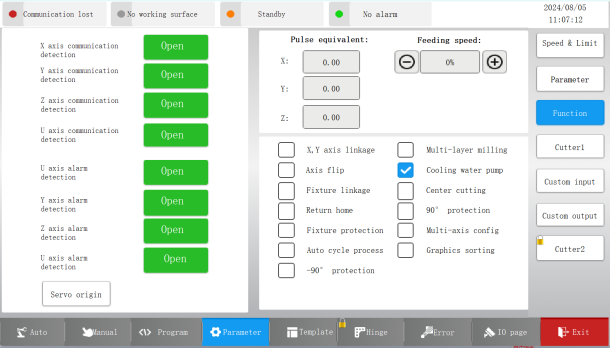

2.1 Confirm the movement directions and pulse equivalents of the XYZ axes.

2.2 Confirm the positive and negative limit values in the XYZ direction.

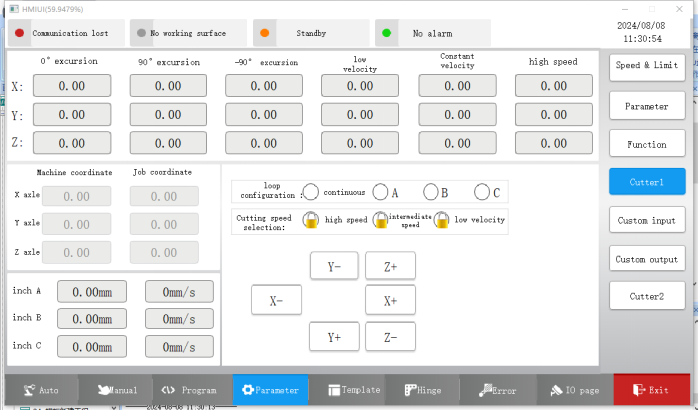

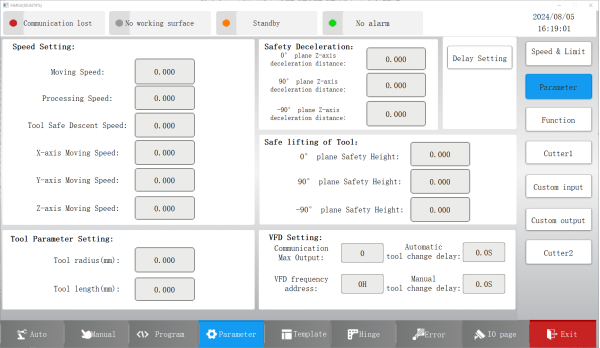

2.3 Confirm processing parameters such as processing speed, cutter radius and length

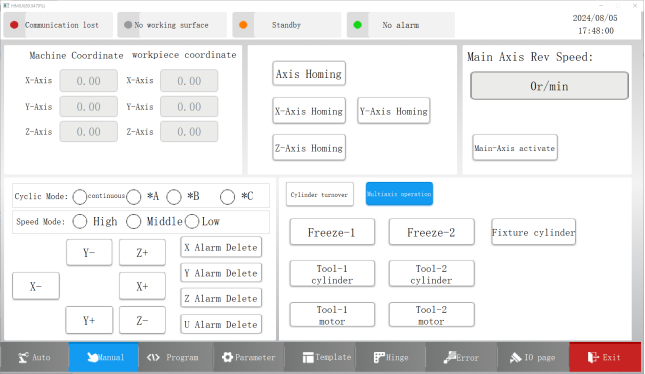

2.4 Test single axis homing function and system homing function

2.5 Set offset distance of three processing interfaces.

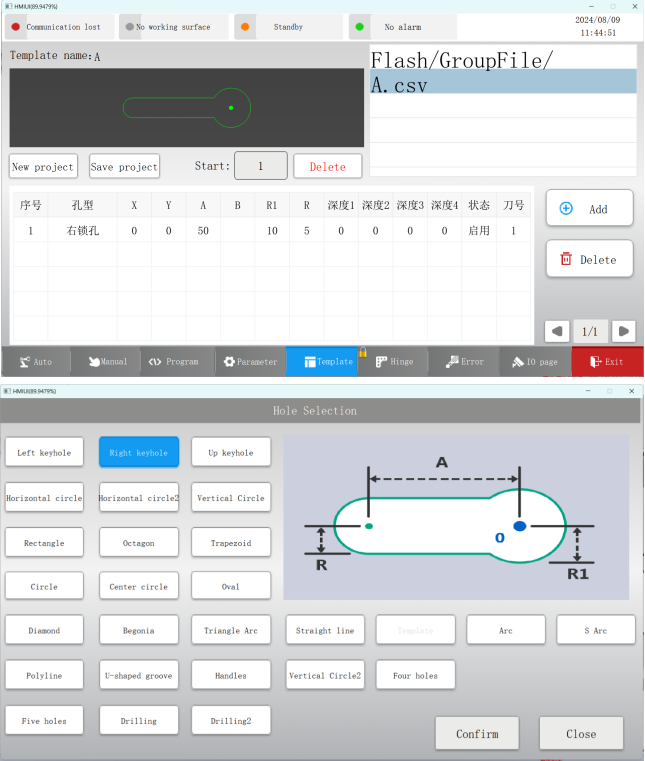

2.6 Graphic editing and template function test

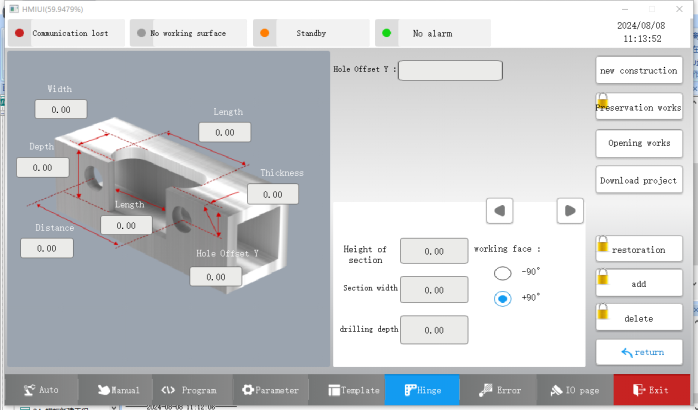

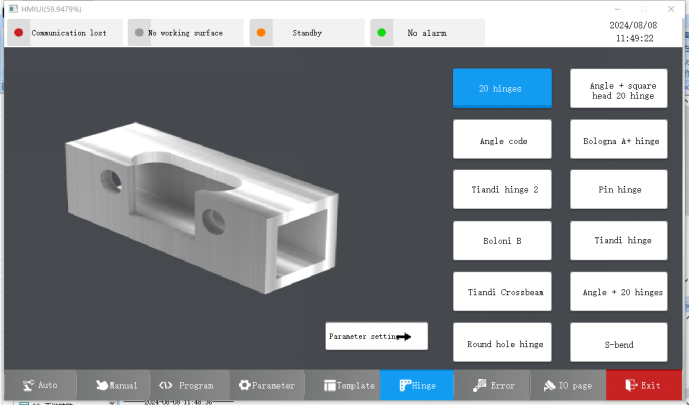

2.7 Hinge processing test

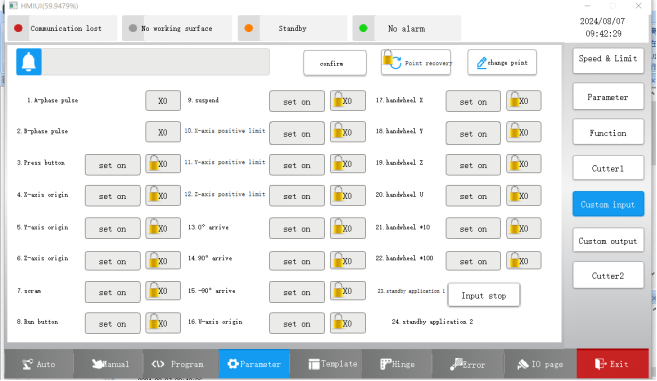

2.8 Custom IO test
