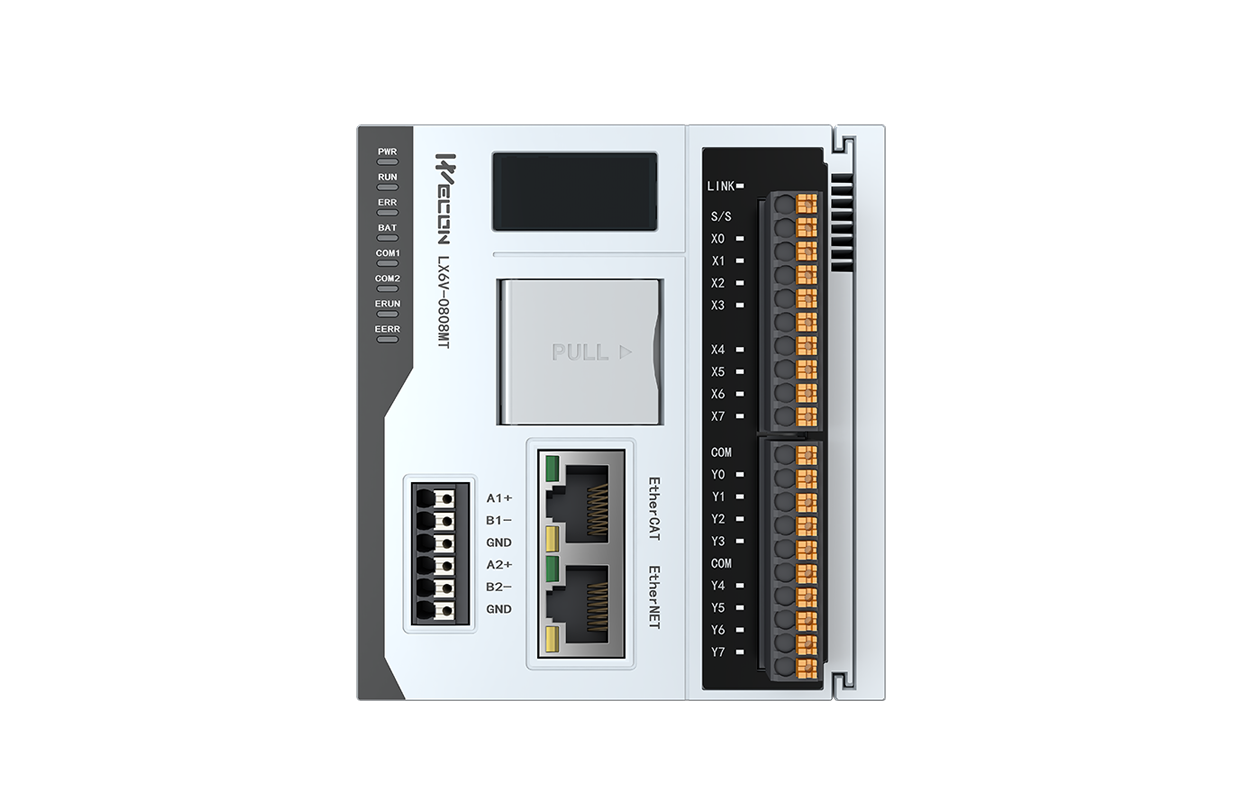

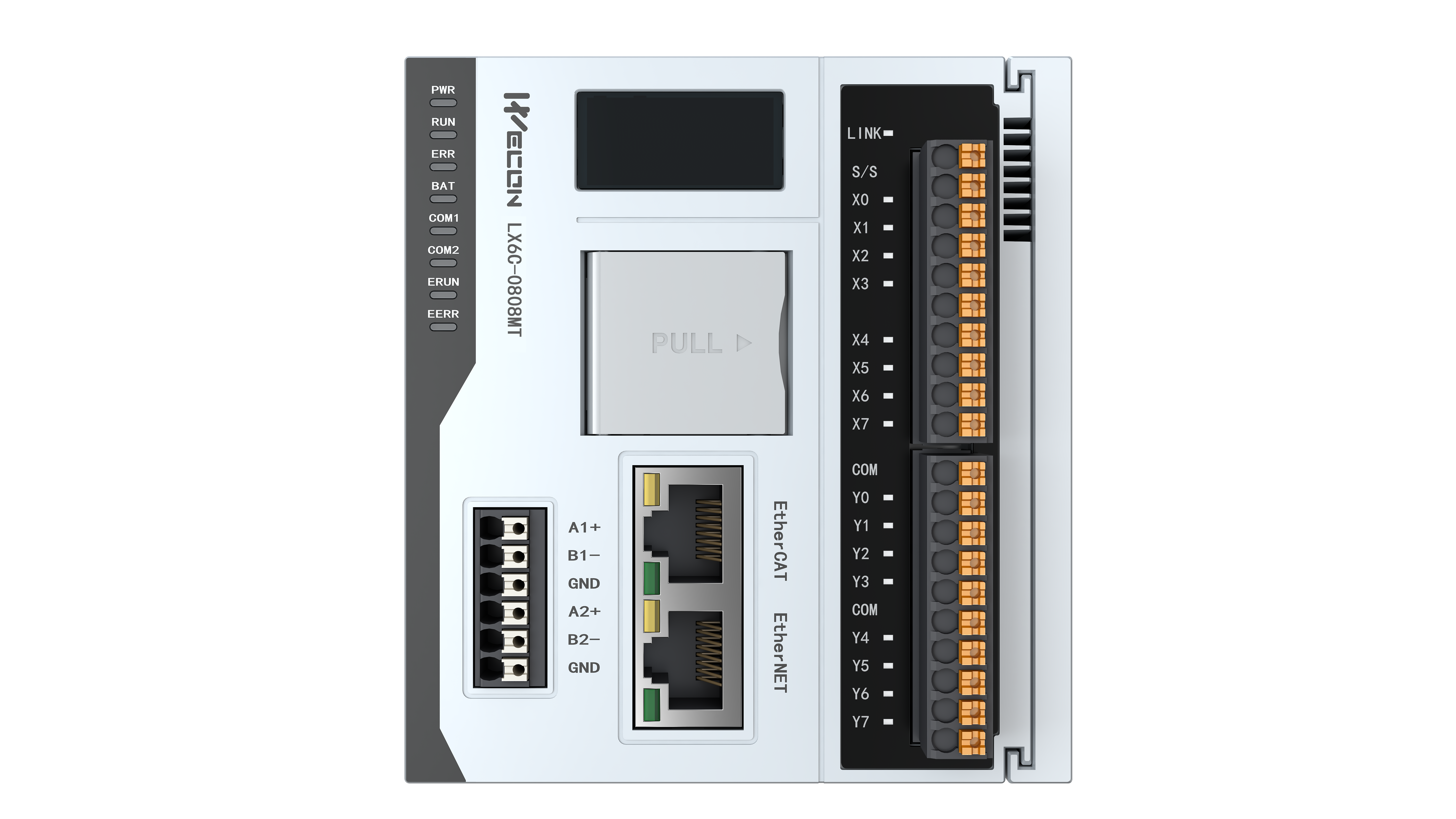

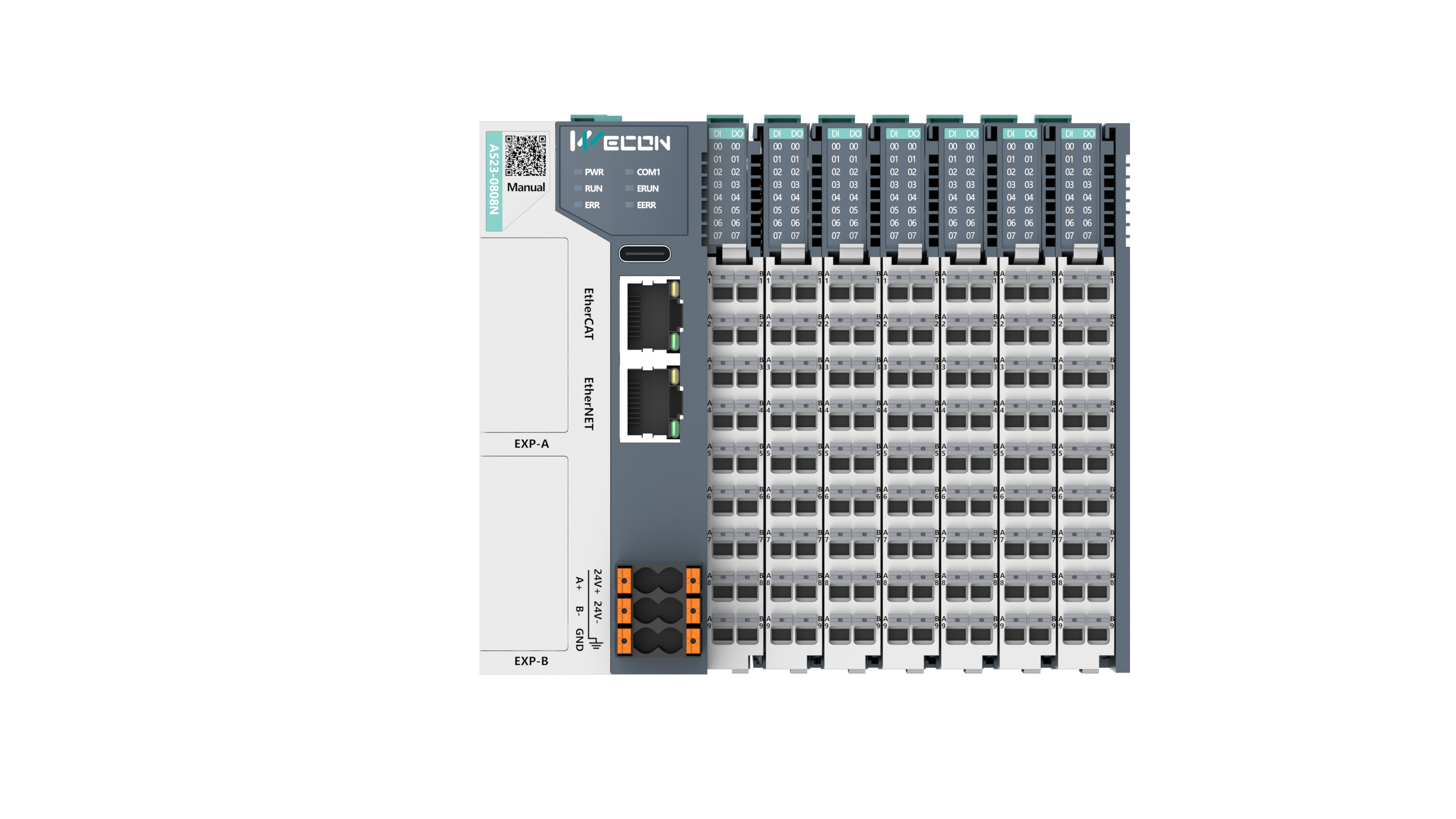

• Supports EtherCAT and USB TYPE-C

• Supports IEC61131-3 LD programming mode, free-tag protocol,

  faster and more efficient communication

• 5MB large program capacity

• 512KB latched capacity

• 100KB register capacity

• 5MB free tag capacity

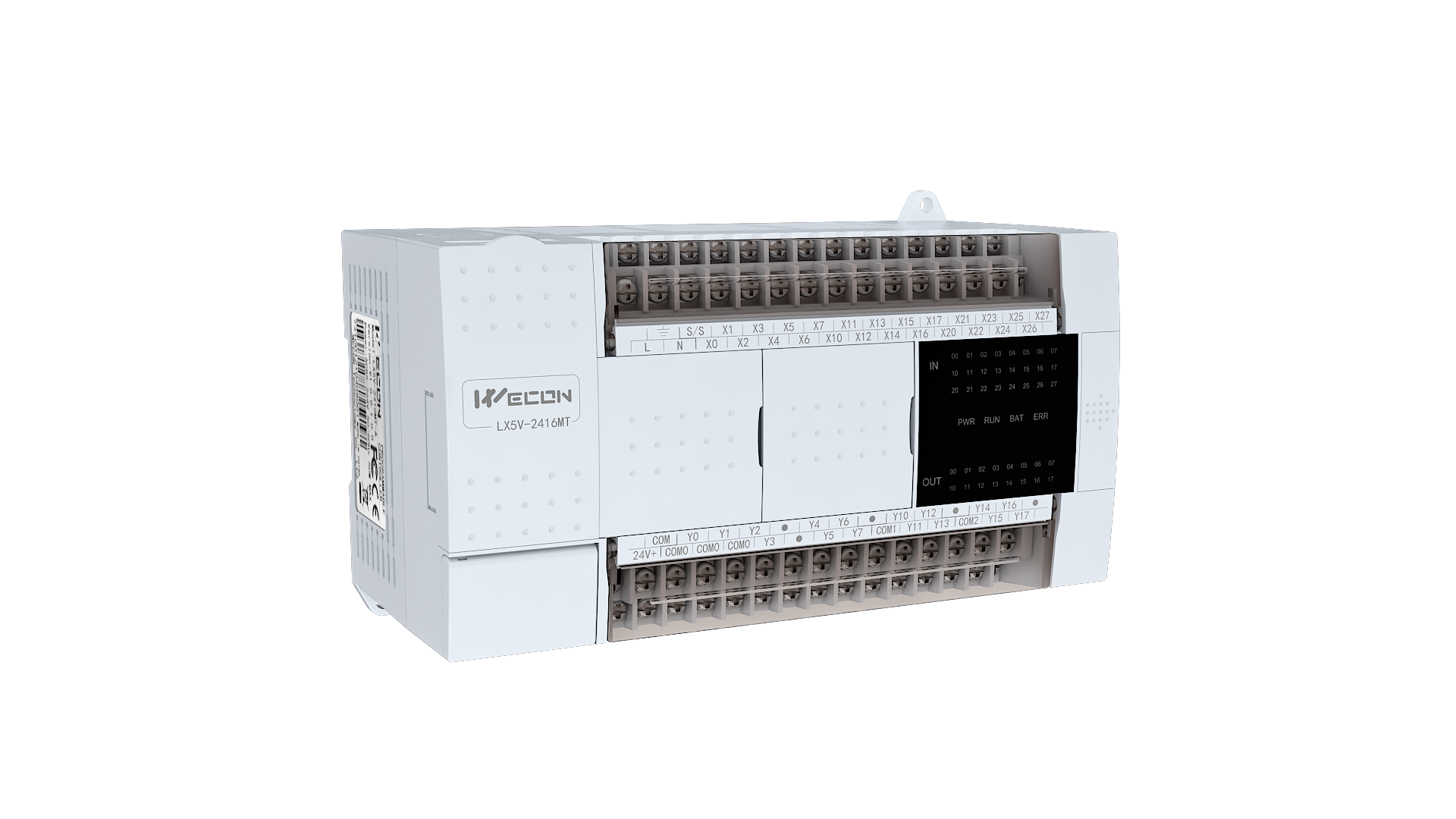

LX5V Series

LX5V series



• 8-axis high speed pulse input and output

• The basic execution speed is 0.01us~0.03us

• 8 external X interrupts supported(both rising and falling)

• (High baud rate)921600bps

• 100us high-speed timing interrupt

• Maximum 100 high-speed counting interrupts

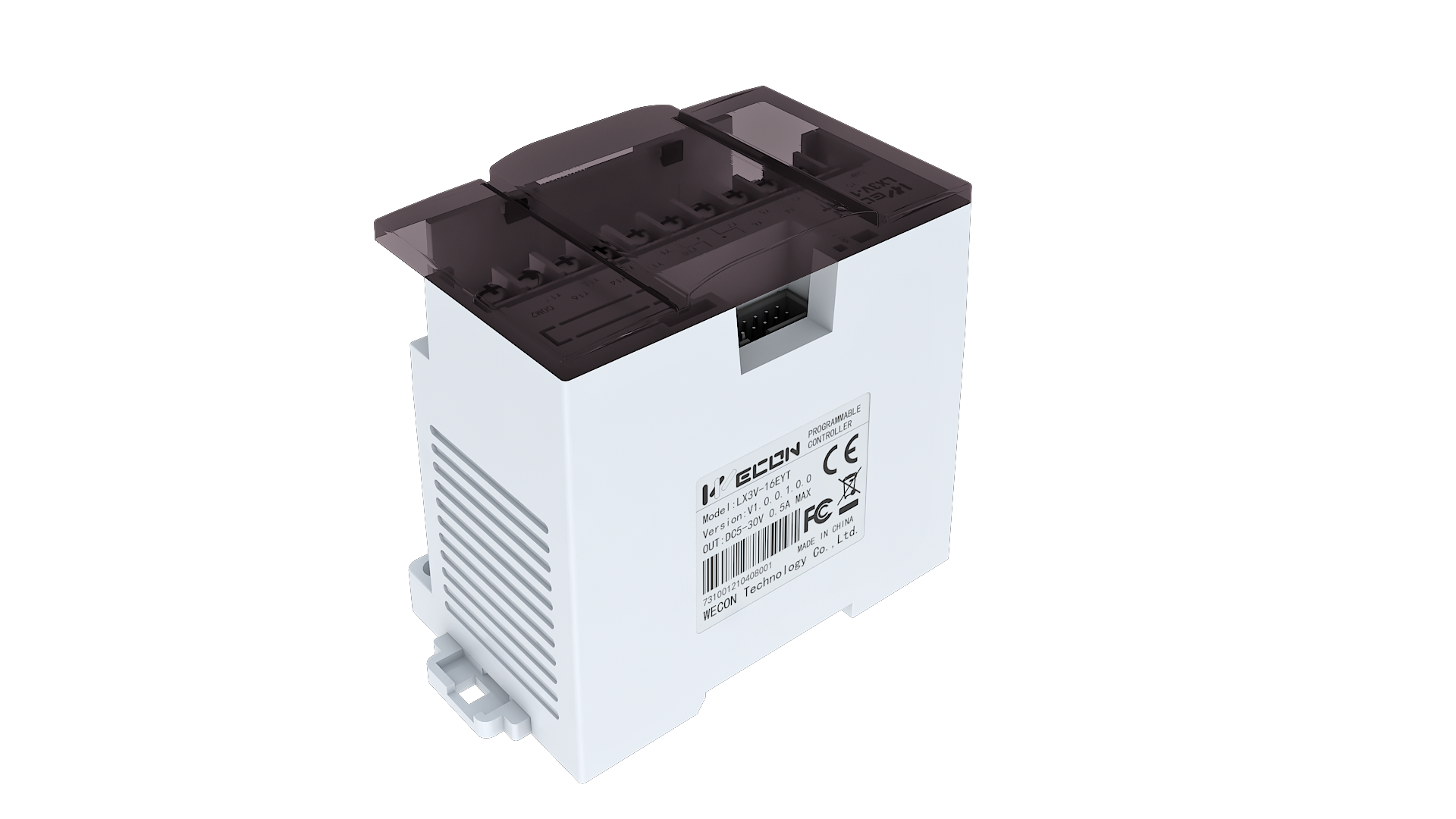

LX5S Series

LX5S series



lHigh speed pulse input and output

lThe basic execution speed is 0.03us~0.08us

l6 external X interrupts supported(both rising and falling)

lUSB power supply supported

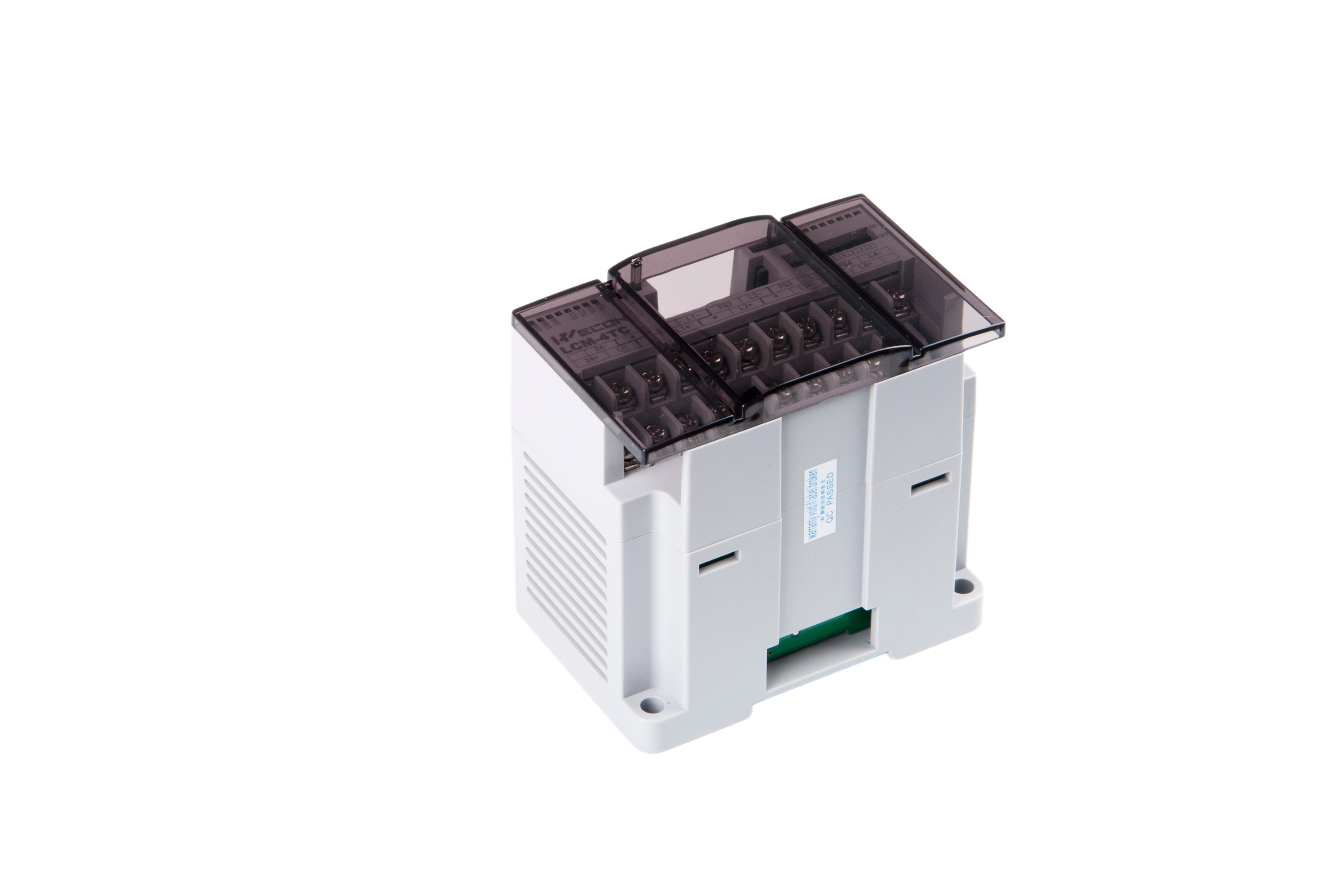

LX3V Series

LX3V series



• High speed pulse input and output

• Support encoder (AB phase)

• Up to 200K pulse signal

• Power-down save

• Program encryption protection

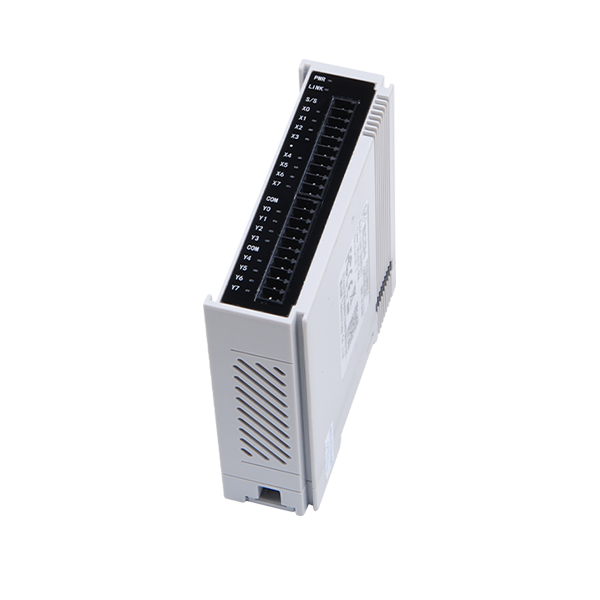

Expansion module

• Multi-module connection

• AD module resoluion :16 bits

• WT module resoluion :24 bits

• DA module resoluion :12 bits

Website information is being updated…

BD Module

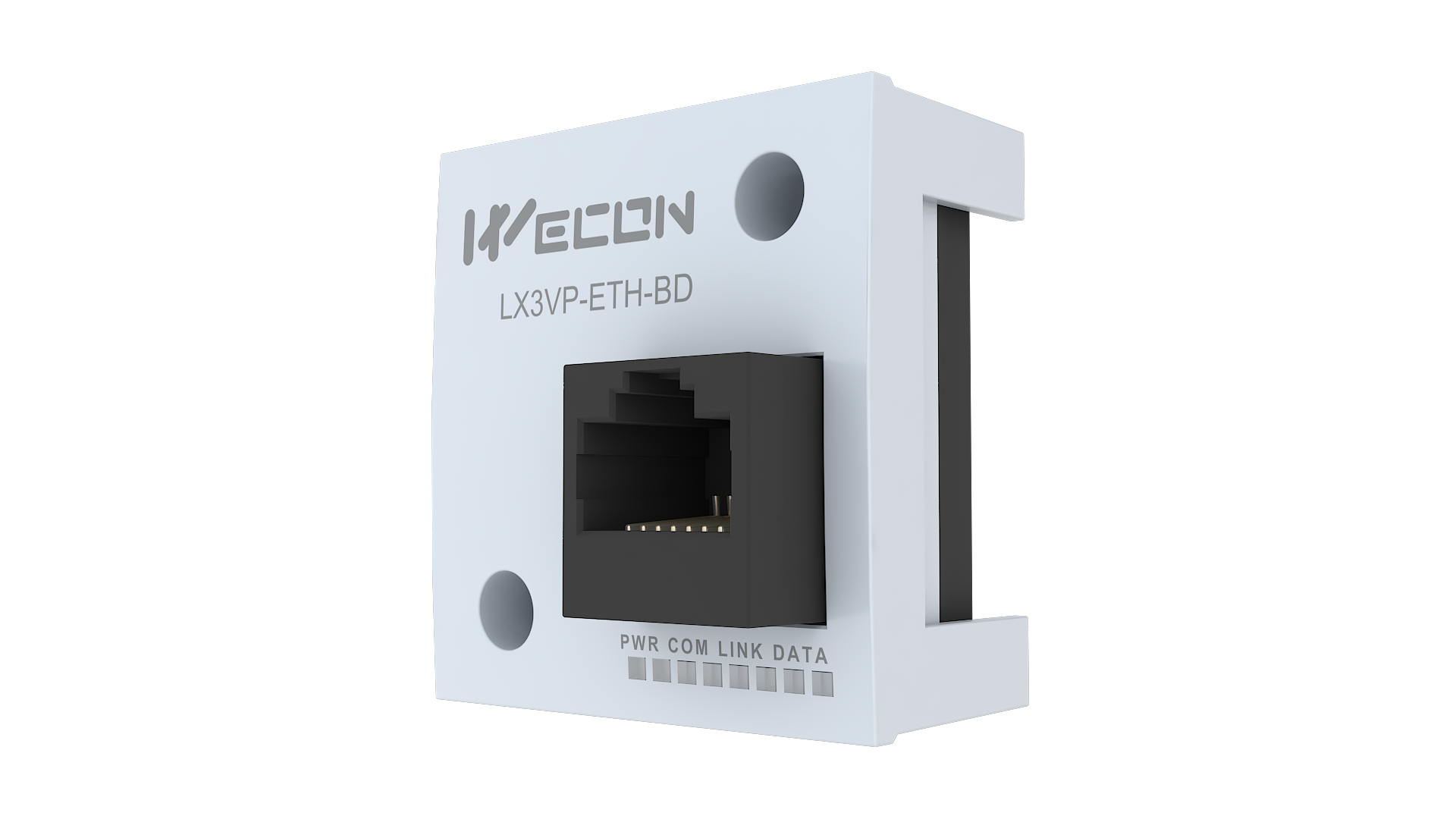

LX3VP-ETH-BD

• Supports Modbus-TCP protocol

•  Maximum 8 devices can be connected (no master-slave) to one LX3VP-EH-BD module.

•  For Good real-time communication,strong correction ability and stable communication.

•  Supports CANopen standard protocol DS301 V4.02.

•  Supports 16 slave device when used as master.

•  Free configuration by using CANopen network configuration software "CANopen Tool".

•  It works as a master or a slave.

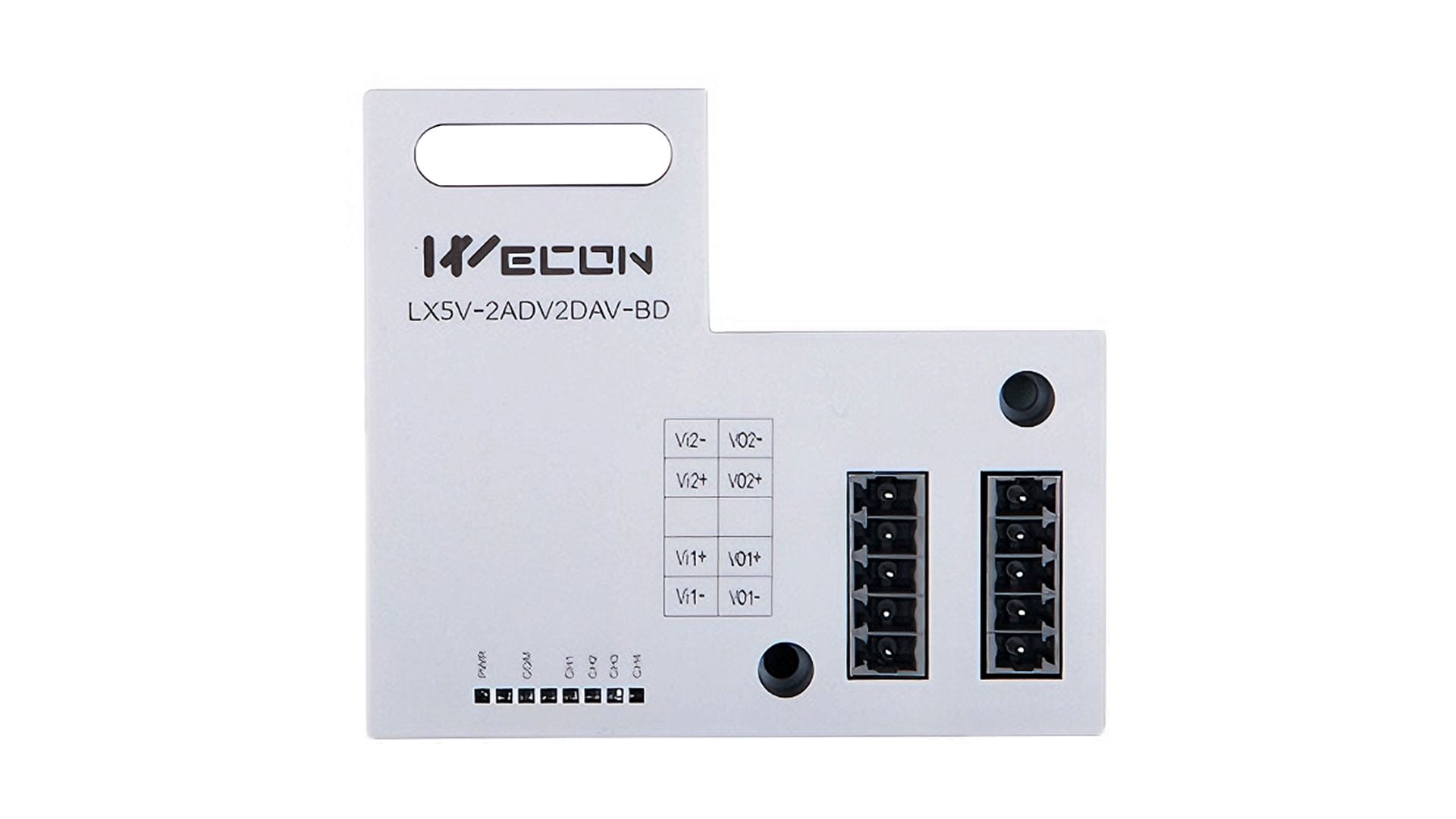

LX5V BD Module

Website information is being updated…
