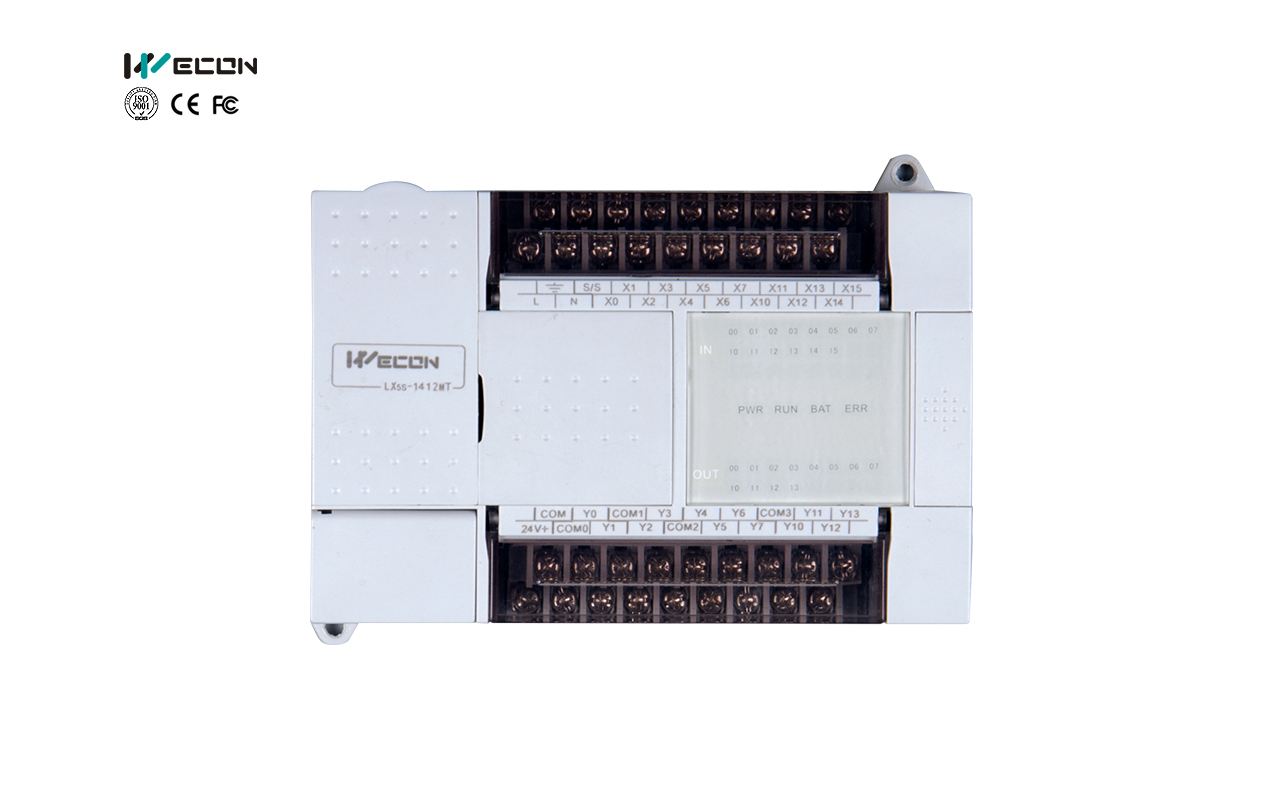

LX5S-1412MT-A(D/AN/DN)

14/12

Transistor

2

YES

2

2

1

YES

AC(DC)

Optional

LX5S-1412MR-A(D/AN/DN)

14/12

Relay

2

N/A

0

2

1

YES

AC(DC)

Optional

LX5S-1412MR2H-A(D/AN/DN)

14/12

Mix

2

YES

2

2

1

YES

AC(DC)

Optional

Running Mode

Round Scan / Interrupt / Event

Programming

Instruction list/ladder diagram

Total Instructions

Basic Instructions: 29 / Application Instructions: 170

Execute time

Basic Instructions: 0.03-0.08us

System Storage

512KB

Download/ Monitoring

Programming cable (serial type) / Micro USB

High Speed Pulse Output

Transistor type; 2 channels/200KHz

High Speed Counter Interrupt

100 Channels

External  Input Interrupt

X0-X5 supports both rising and falling edges

Timer Interrupt

100 channels, support 0.1ms interrupt

High Speed Input Single

2 channel 150K Hz;

4 channel 10KHz

High Speed Input AB Phase

1 channel 100K Hz, supports 2 or 4 frequency times,

2 channels 10K Hz, supports 2 or 4 frequency times

Holding Addresses

Adjusted by software

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1（RS422 / RS485),

COM2（RS485）

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃

Humidity

35~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

USB Supply

YES

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<60W

<30W

Power Output

DC 24V 700mA

<30w(Not include the external power supply for modules)

Output Mode

--

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

--

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

--

0.1mA / DC 30V

Min. Load

--

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
