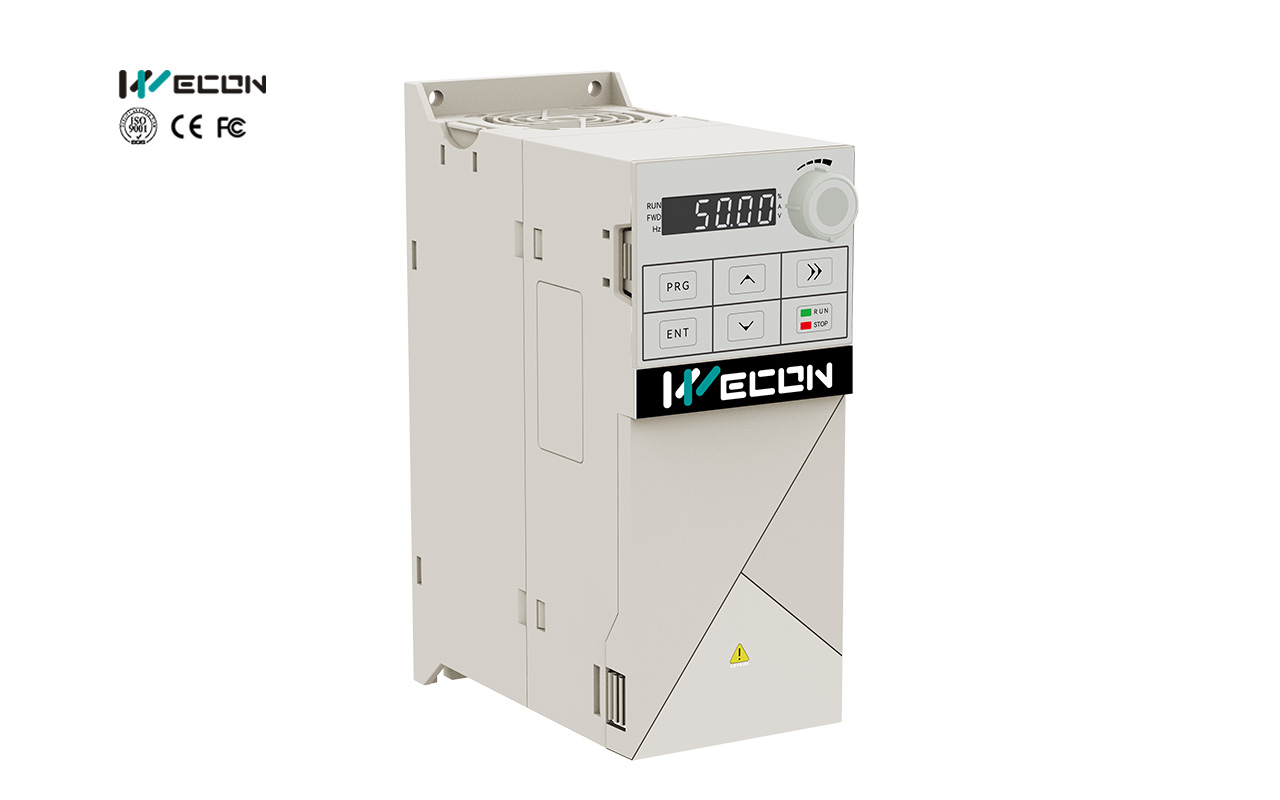

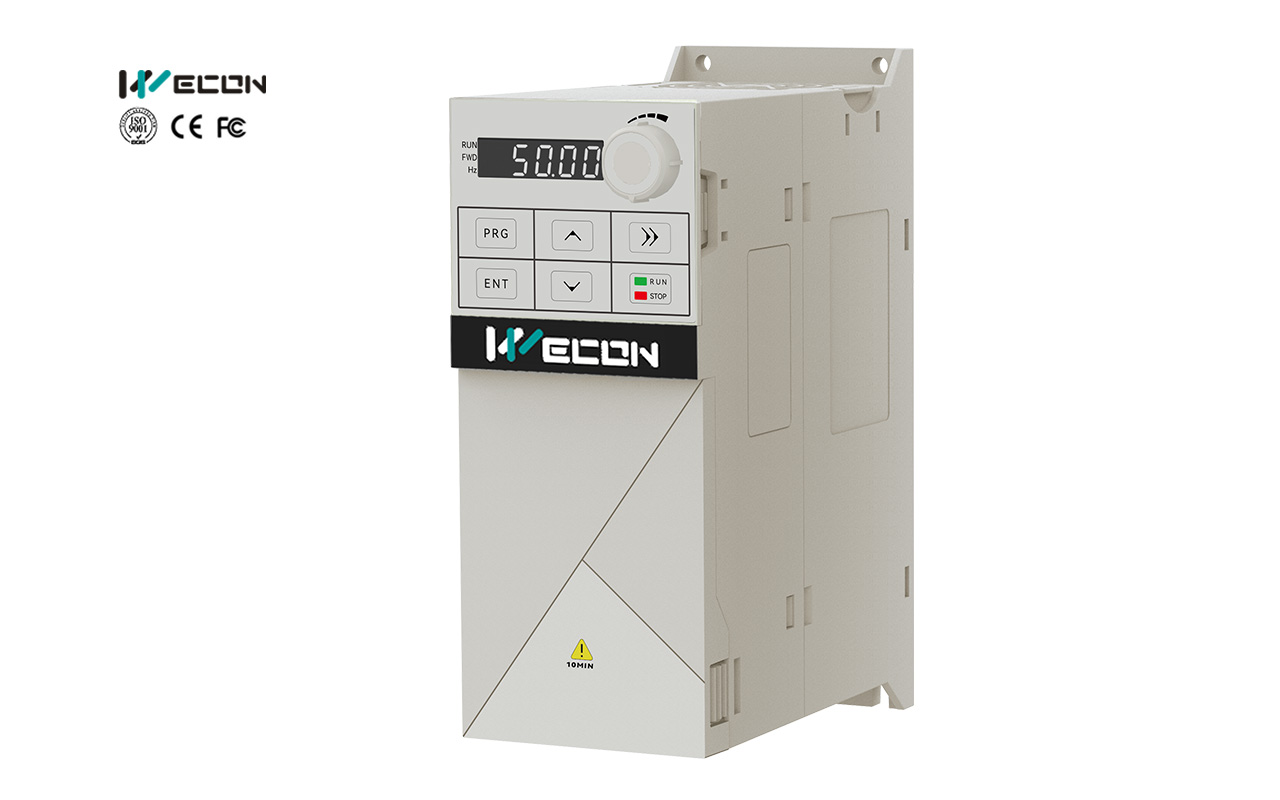

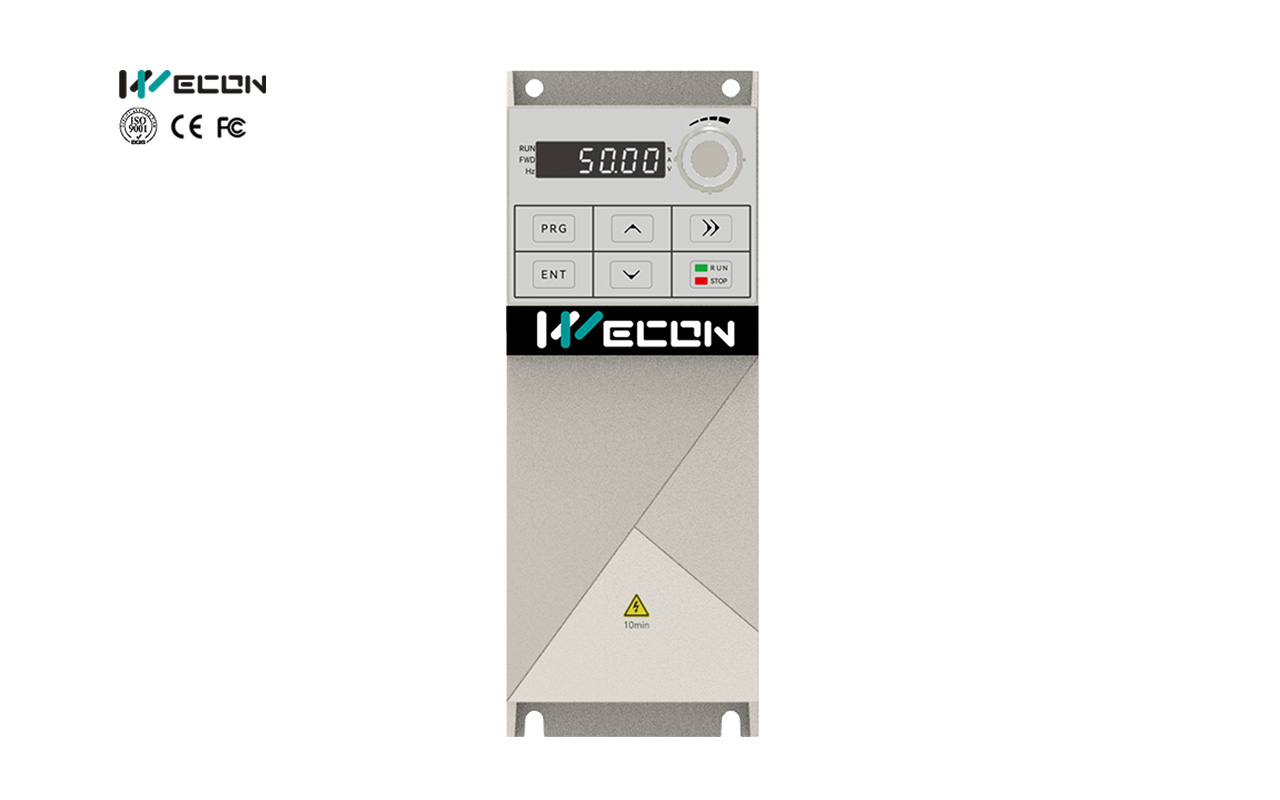

1. Support EtherCAT, Profinet protocol;
2. Wide voltage input;
3. Compatible with synchronous /asynchronous motor;
4. Narrow-body and compact structure;
5. Rich application, macro parameters.
Available for 220V-240V / Single phase, 380V-480V / Three phase
【Easy Maintenance】
The cooling fan can be removed independently without complicated operations.
【Independent Air Duct Design】
The entire series features an independent air duct design,
enhancing product protection and preventing issues
such as moisture and dust accumulation on the circuit boards.
【Convenient and Easy to Use】
Standard with removable keyboard, can be equipped with control cabinet installation.
【High Efficiency Heat Dissipation】
Side opening ventilation, radiator special design, can significantly improve the heat dissipation efficiency.
(additional side hole dust cover, flexible use)
【Single Side Wiring】
Single-sided wiring is beneficial to the layout o internal components of the supporting control cabinet, making the installation location more flexible.
【Narrow-body Structure Appearance】
Realize compact product volume, support seamless side-by-side installation, reduce the volume by about 44%compared to traditional products.(4kW)
【Excellent Suppression Effect of Overcurrent and Overvoltage】
VC has excellent overcurent / overvoltage suppression capabilities,ensuring stable operation of equipment in extreme conditions and avoiding abnormal downtime.
【Flexible Options for Expansion】
The full range of expansion interfaces are reserved,and I/O expansion modules,
bus communication expansion modules, PG encoder expansion modules can
be selected as needed, making the functional configuration more flexible.
【Flexible Terminal Switching】
More flexible for specific applications,AI terminal can be converted to DI terminal via parameters.
Model | kW | HP | Power capacity (kVA) | Rated input current(A) | Rated output current(A) | Integrated with brake function |
Input：Single-phase 200~240V & Output Three-phase 0~Input | ||||||
VC-2SR75B-E | 0.75 | 1 | 1.5 | 8.2 | 4.5 | YES |
VC-2S1R5B-E | 1.5 | 2 | 3 | 14 | 7 | YES |
VC-2S2R2B-E | 2.2 | 3 | 4 | 23 | 9.6 | YES |
Input：Three-phase 380~480V & Output Three-phase 0~Input | ||||||
VC-4TR75B-E | 0.75 | 1 | 1.5 | 3.4 | 2.5 | YES |
VC-4T1R5B-E | 1.5 | 2 | 3 | 5 | 3.8 | YES |
VC-4T2R2B-E | 2.2 | 3 | 4 | 5.8 | 5.1 | YES |
VC-4T004B-E | 4 | 5.5 | 5.9 | 10.5 | 9 | YES |

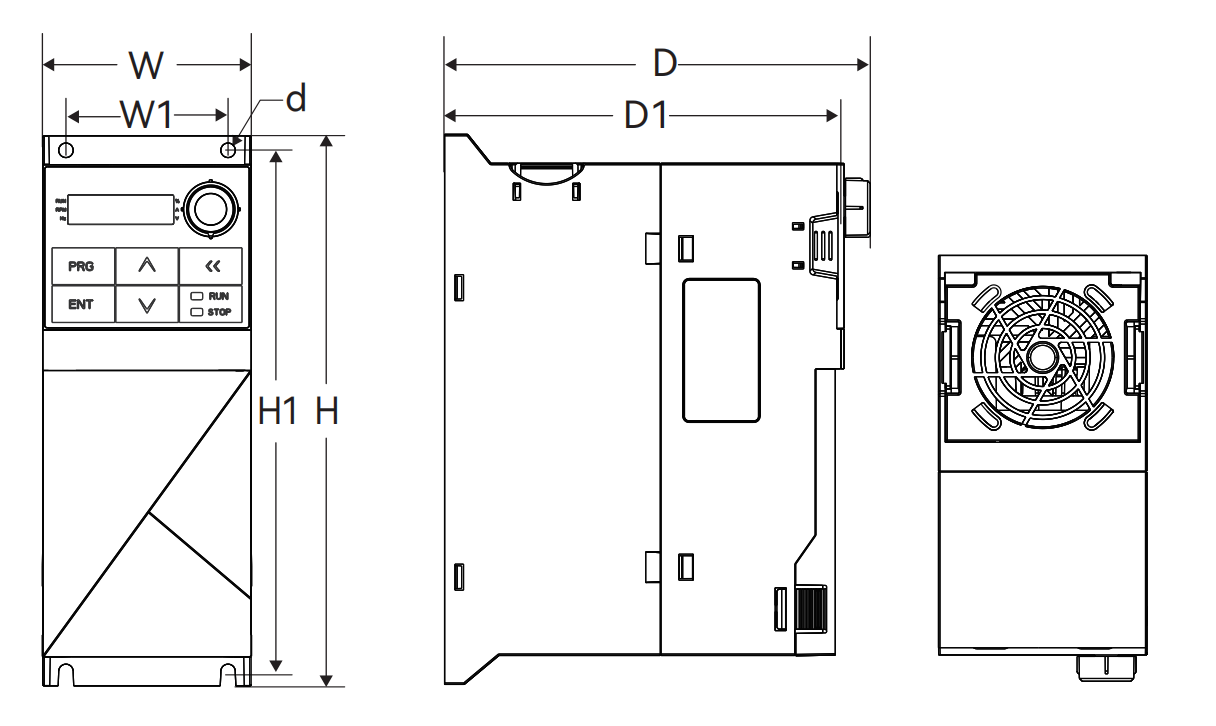

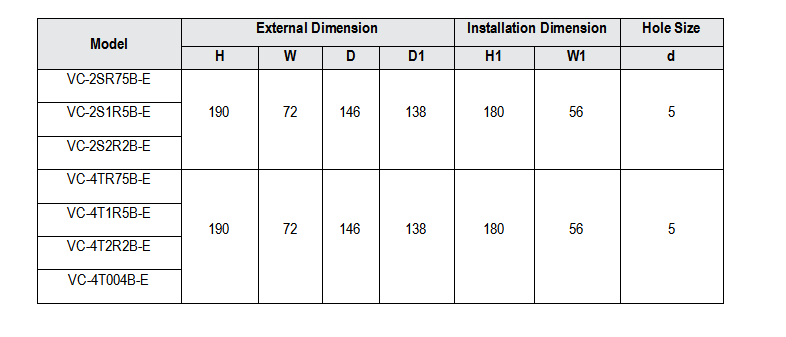

Specification
| Item | Specification | ||
| Controlled Characteristic | Control mode | V/F | SVC |
| Starting torque | 1Hz/100% Rated torque | 0.5Hz/150% Rated torque | |
| Range of speed regulation | 1:50 | 0.111111111 | |
| Rotating speed | ≤1% Rated synchronous speed | ≤0.5% Rated synchronous speed | |
| Carrier srequency | 0.6kHz~16kHz | ||
| Overload capacity | 150% Rated current 60s；180% Rated current 2s | ||
| Torque boost | Automatic torque increase； Manual torque increase 0.1～30.0% | ||
| I/O | The range of input voltage | Single-phase 200V-240V；Three-phase 380V-480V Allowable fluctuation range：-15%～10% | |
| The range of input frequency | 50/60Hz Allowable fluctuation range：±5% | ||
| The range of output voltage | 0～Input,Fluctuation range：＜5% | ||
| The range of output frequency | SVC:0-500Hz V/F：0-1000Hz Fluctuation range：±5% of Maximum frequency | ||
| Run Control | Run command channel | 3 kinds of channels: Operation panel setting, Control terminal setting, Serial communication port given, Can change by different ways | |
| Frequency source | Digital setting, panel pulse potentiometer setting, linear voltage setting, curve voltage setting, analog current setting, serial communication setting, etc. Can be switched in a variety of ways | ||
| Auxiliary frequency source | Multiple auxiliary frequency sources. Frequency synthesis and frequency fine-tuning can be performed | ||

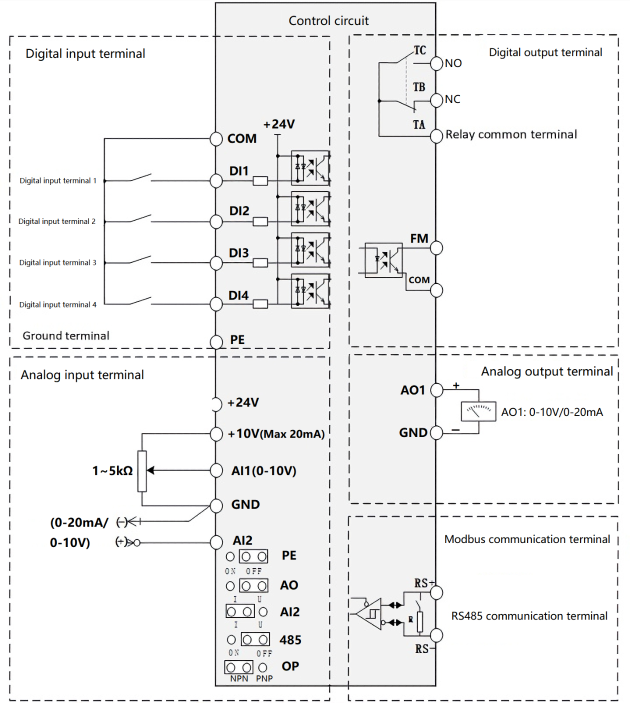

| Digital input terminal | There are four DI1-DI4, of which DI4 supports high-speed pulse input, up to 20kHz input, and supports NPN PNP switching | ||
| Analog input terminal | Two AI1-AI2 (You can change the terminal function to DI input by setting parameters) The AI2 can switch the current/voltage input through the jumper cap | ||
| Basic Function | DC braking function | DC braking frequency:0.00 Hz ~ 60.00 Hz;Braking time:0.0 s ~ 60.0s | |
| Braking action current value:0.0% ~ 150.0% | |||
| V/F curve | Linear, multi-point type, square type, 1.1-1.9 power curve, V/F completely separated type | ||
| Acceleration and deceleration curves | Linear or S-curve acceleration and deceleration mode, acceleration and deceleration time range：0~6500s | ||
| Multi-speed operation | Up to 16 segment speeds are achieved through the control terminal | ||
| External keyboard | Standard, can upload and down-transfer inverter function code information, to achieve fast parameter replication | ||
| Built-in PID | It is convenient to realize the closed-loop control system of process control | ||
| Automatic voltage adjustment AVR | Standard, automatic current and voltage limit during operation to prevent frequent overvoltage trip | ||
| Over voltage over loss rate control | Automatic current and voltage limit during operation to prevent frequent overvoltage trip | ||
| Fast current limiting function | The standard configuration minimizes overcurrent faults and protects the normal operation of the equipment | ||
| Torque qualification and control | Automatic torque limit during operation to prevent frequent overcurrent tripping | ||
| Power on the safety self-test of peripheral devices | It can realize the safety detection of peripheral devices such as grounding and short circuit | ||
| Timing control function | Timing control function: set time range 0h ～ 65000h | ||
| Defensive function | Power-on motor short circuit detection, input and output phase loss protection, over current protection, over voltage protection, under voltage protection, overheat protection, overload protection | ||
| Display and Keyboard Operation | LED display | 5 digit LED display | |
| Parameter locking function | Set parameter read-only control to prevent misoperation | ||
| Service Environment | Place of use | Indoor, free from direct sunlight, no dust, corrosive gas, flammable gas, oil mist, water vapor, dripping or salt | |
| Altitude | Less than 1000m; When the sea level is higher than 1000m, the sea level must be reduced by 1% for every 100m rise. The maximum sea level is 2000m | ||
| Environment temperature | -20℃~45℃,Derating is required when the temperature exceeds 45℃. For every 1℃ increase in the ambient temperature, the derating is about 1%. The maximum ambient temperature is 50℃ | ||
| Humidity | ≤95%RH，Avoid condensation | ||
| Vibration | Vibration acceleration less than 0.6g | ||
| Storage temperature | -25℃~60℃ | ||
