200KW-280KW INVERTER

1. SVC Control Mode: Maximum Output Frequency 320Hz

2. VF Control Mode: Maximum Output Frequency 1000Hz

3. Excellent Braking Function

4. Superior Control Performance,Optimized PID function

5. Random Carrier Function

6. Short-circuit protection in power-to-GND

7. Support speed mode and torque mode,low speed with high torque output

Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase


Software&manual Inquiry sales@we-con.com.cn
Introduction
Specification
Physical & Electrical

The VB series high-performance frequency inverters use the international mainstream 32-bit DSP as the main control chip. It has fast calculation speed, high control accuracy, and powerful control performance. Using well-known brand power devices and raw materials, processed with advanced manufacturing technology to meet the high-quality needs of our customers.


Maximum Output Frequency Improved

SVC Control Mode: Maximum Output Frequency 320Hz

VF Control Mode: Maximum Output Frequency 1000Hz

A maximum output frequency of 1000Hz in VF control mode can meet

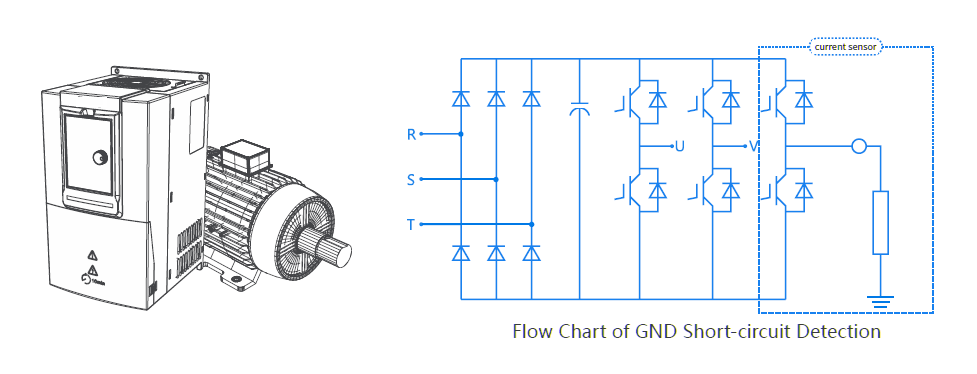

various speed control demands from customers Flow Chart of GND Short-circuit Detection


Excellent Braking Function

【Over-excitation Braking Function】

The over-excitation braking function can help with a prompt braking action even without the braking unit on some occasions.



【Dynamic Braking Function】

The braking torque could be higher and braking time shorter if working with a braking resistor.

The 0.75-22KW models are designed with built-in braking units.

(Remarks) The braking performance varies from motor characteristics and load conditions.


Superior Control Performance

The improved low frequency and high torque quick- starting performance brings a faster response speed and a higher production efficiency The probability

of equipment failure and shutdown can be reduced effectively with the enhanced current suppression algorithmso as to ensure a more stable processing capacity of the equipment.



Random Carrier Function

Noise Reduction

The random carrier function helps reduce the noise of the equipment so as to improve the environmental comfort.



Motor GND Short-Circuit Detection

The motor GND short-circuit detection function makes sure that the equipment is operating under normal andsafe conditions thus improving the safety coefficient.


Model

KW

HP

Rated input current(A)

Rated output current(A)

Input Voltage

General type / Fan type

 Integrated with brake function

VB-4T200G/4T220P

200 / 220

275 / 300

385 / 430

377 / 426

380~440V

/ Three phase

General type / Fan type

N/A

VB-4T220G/4T250P

220 / 250

300 / 340

430 / 468

426 / 465

380~440V

/ Three phase

General type / Fan type

N/A

VB-4T250G/4T280P

250 / 280

340 / 380

468 / 525

465 / 520

380~440V

/ Three phase

General type / Fan type

N/A

VB-4T280G/4T315P

280 / 315

380 / 430

525 / 590

520 / 585

380~440V

/ Three phase

General type / Fan type

N/A



Control characteristic

Control mode

V/F Control; Sensorless Vector Control (SVC); Torque Control

Starting torque

G Type: 0.5Hz/150 % (SVC); P Type: 0.5Hz/100%

Speed adjustment range

1:100 (SVC)

Speed holding precision

± 0.5 % (SVC)

Overload capability

G Type: 150 % rated current for 60s; 180 % rated current for Is

P Type: 120 % rated current for 60s; 150 % rated current for Is

Input / Output

Input voltage

380V/415V/440V;  fluctuation range: 380V(-15%)~440V(+10%)


Input frequency

50/60Hz, fluctuation range: ±5%

Output voltage

0-rated input voltage

Output frequency

SVC: 0~320Hz, V/F: 0~1000Hz

Analog input

2 channels

Digital input

6 channels

Input / Output terminals

Analog output

2 channels

Digital output

1 channel

Relay output

2 channels

RS485 communication terminal

1 channel

Power supply

2 channels (1 channel 10V, 1 channel 24V)

Application environment

Attitude

Lower than 1000m, service is derated capability above 1000m,

derate 1% capacity every 100m increased in height.

Environment temperature

-10°C ~ + 40°C (service is derated capability for 40°C ~ 50°C)

Humidity

<95%RH, no water condensation

Vibration

< 5.9m/s2 (0.6g)

Storage temperature

-40°C~+ 60°C

Enclosure

Shell Material

Metal

Overall Size (mm)

1570.00H*600.00W*408.00D

Weight (Kg)

180

Package dimensions (mm)

1670.00H*745.00W*650.00D
