CPU A35, 4GB Flash, 512M DDRAM;
Display: 10.1 inches; Resolution: 1024*600
Interfaces: a serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485;
USB interfaces: USB2.0 Host or USB2.0 Type-C;
Remote monitoring and WVPN pass-through download;
Supports related functions of V-NET, Ethernet pass-through download and sync data to cloud;
Support IP Camera, 2 Ethernet Port.
Model | V-Net Functions | MQTT | Lua Script | LAN Monitoring | 4G / WIFI | |||||||
Realtime Data | Alarm Data | History Data | APP & Remote Control | Remote Update HMI | WVPN | Cloud SCADA | Pass-through | |||||
PI8101ig(N) | 300 | 200 | 100 | P | P | P | P | Serial | P | P | P | X |
SPECIFICATIONS
Main | Processor | High Performance CPU |
Display | Size | 10.1" |
Screen | TFT | |
Resolution | 1024*600 | |
Brightness (cd/m2) | 400 | |
Backlight | LED | |
Backlight Lifetime | 50,000 hours | |
Touch Panel | High precision four-wire resistive | |
Storage | Memory | 512 MB |
Flash | 4 GB | |
SD Card Slot | YES (TF) | |
USB Port | USB Host : USB2.0 x1 USB Device: USB Type-C 2.0 x1 | |
RTC | Real-time clock | Yes |
Calendar | Yes | |
I/O Port | COM1 | CN1:RS422/RS485 CN2:RS232 CN3:RS485 |
COM2 | -- | |
COM3 | -- | |
Ethernet | X2 | |
CANopen | -- | |
Power | Rated Power | < 10W |
Power Voltage | DC 24V | |
Input range | DC 12 ~ 28V | |
Shell Color | Grey | |
Enclosure | Shell Material | Plastic+ABS(Polycarbonate) |

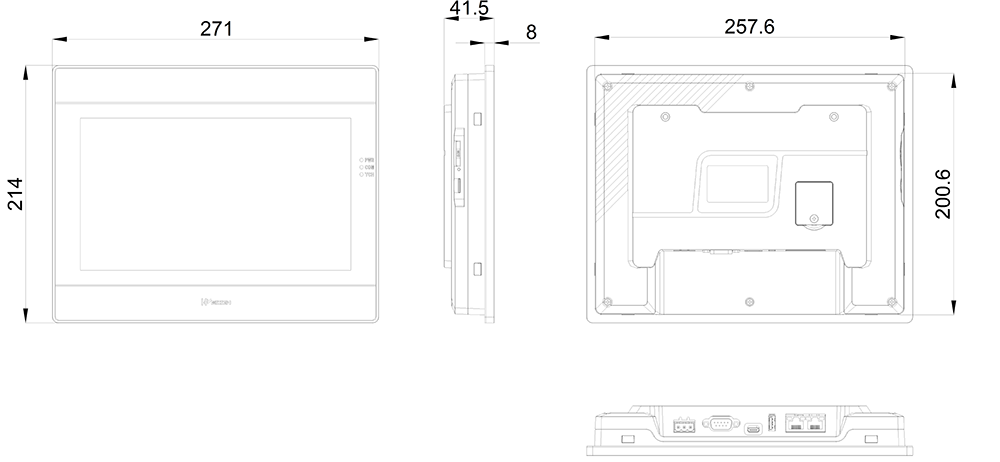

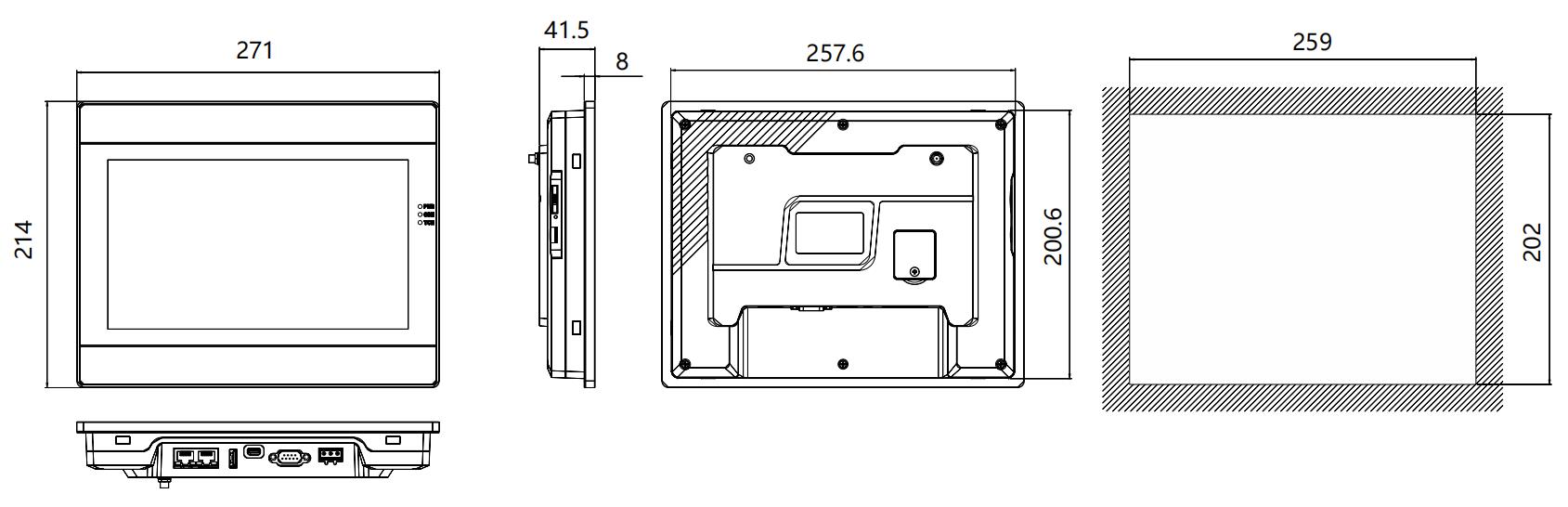

Overall Size (mm) | 272.0W*214.0H*41.5D | |
Mounting Size (mm) | 257.6W*200.6H | |
Mounting Method | Panel Mount | |
Weight (Kg) | 1.02 | |
Environment | Working Temperature | -10 ~ 55°C |
Storage Temperature | -20 ~ 70°C | |
Humidity | 10 ~ 90％RH (Non-condensing) | |
Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
Cooling | Air Cooling | |
Software | Programming | PI Studio |
Remote Access | YES | |
Email Alarm | YES | |
IP Camera | -- | |
Audio Output | -- | |
Video Player | -- | |
Data Tool | Yes | |
Certificates | IP Code | IP65 (Front panel) |
CE | CE Marked | |
FCC | FCC Class A |
