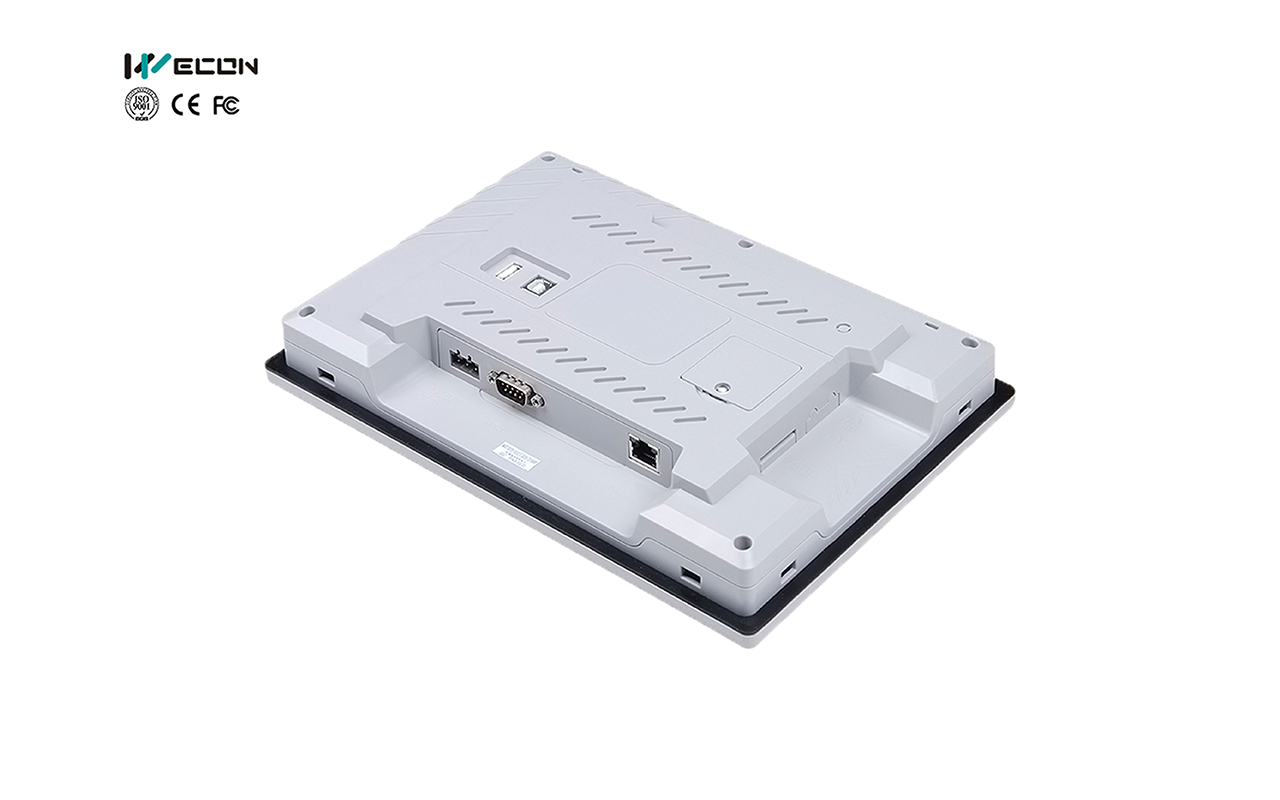

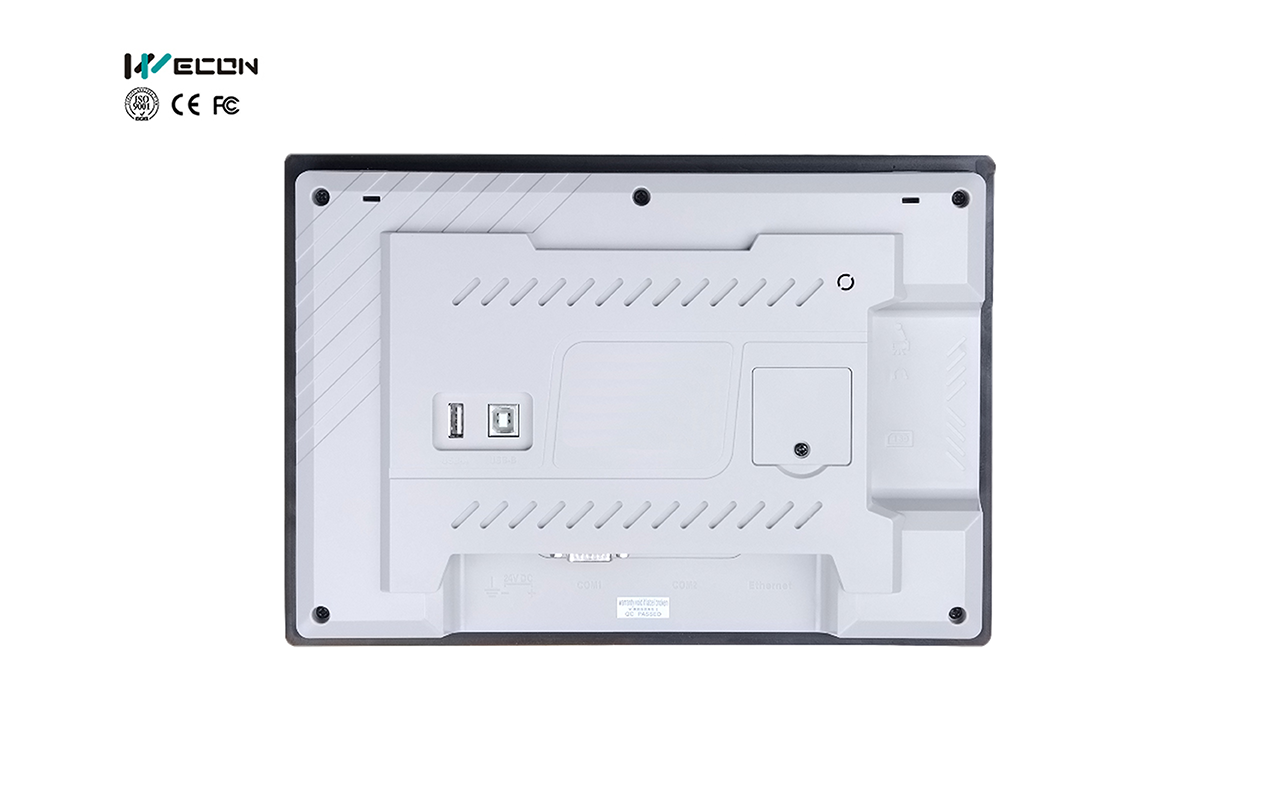

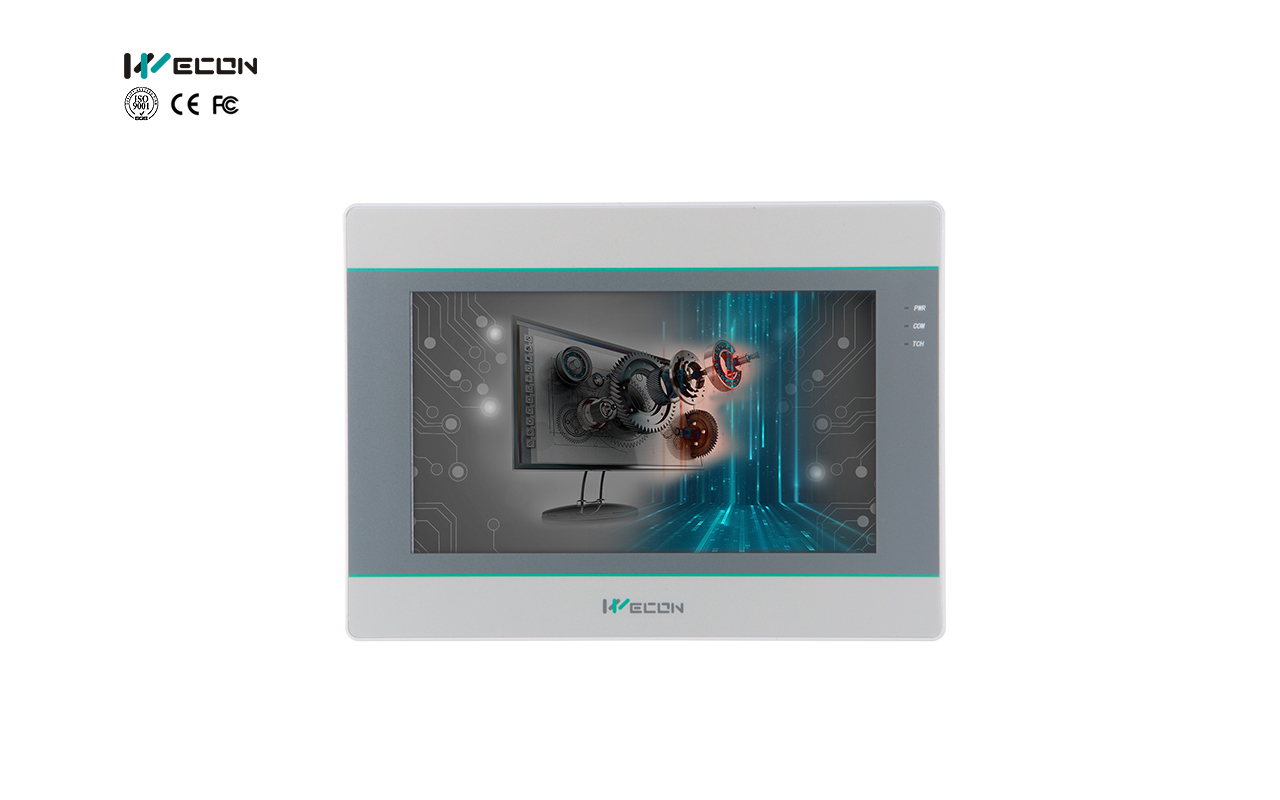

PI8102ig HMI

CPU A35,4GB Flash,512M DDRAM;
Display: 10.1 inches; Resolution: 1024*600
Interfaces: a serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485;
USB interfaces:USB2.0 Host or USB2.0 (Can not use at the same time);
Remote monitoring and WVPN pass-through download;
Supports related functions of V-NET, Ethernet pass-through download and sync data to cloud;
Support IP Camera.

Software&manual Inquiry sales@we-con.com.cn
Specification
Physical & Electrical


Model

V-Net Functions

MQTT

Lua Script

LAN Monitoring

4G / WIFI

Realtime Data

Alarm Data

History Data

APP & Remote Control

Remote Update HMI

WVPN

Cloud SCADA

 Pass-through

PI8102ig

300

200

100

P

P

P

P

Serial

P

P

P

X

PI8102ig (G)

300

200

100

P

P

P

P

Serial

P

P

P

4G

PI8102ig (W)

300

200

100

P

P

P

P

Serial

P

P

P

WIFI



SPECIFICATIONS

Main

Processor

High Performance CPU

Display

Size

10.1"

Screen

TFT

Resolution

1024*600

Brightness (cd/m2)

350

Backlight

LED

Backlight Lifetime

50,000 hours

Touch Panel

High precision four-wire resistive

Storage

    Memory

512 MB

Flash

4 GB

SD Card Slot

YES

USB Port

USB2.0 Host + USB2.0 Client

(Could not use at the same time)

RTC

Real-time clock

Yes

Calendar

Yes

I/O Port

COM1

CN1:RS422/RS485

CN2:RS232

CN3:RS485

COM2

--

COM3

--

Ethernet

x1

CANopen

 --

Power

Rated Power

< 10W

Power Voltage

DC 24V

Input range

DC 12 ~ 28V

Shell Color

Grey

Enclosure

Shell Material

Plastic+ABS(Polycarbonate)

Overall Size (mm)

272.0W*191.0H*41.5D

Mounting Size (mm)

260.0W*179.0H

Mounting Method

Panel Mount

Weight (Kg)

1.02

Environment

Working Temperature

-10 ~ 55°C

Storage Temperature

-20 ~ 70°C

Humidity

10 ~ 90RH (Non-condensing)

Vibration Resistance

10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)

Cooling

Air Cooling

Software

Programming

PI Studio

Remote Access

 YES

Email Alarm

YES

IP Camera

 --

Audio Output

 --

Video Player

 --

Data Tool

Yes

Certificates

IP Code

IP65 (Front panel)

CE

CE Marked

FCC

FCC Class A

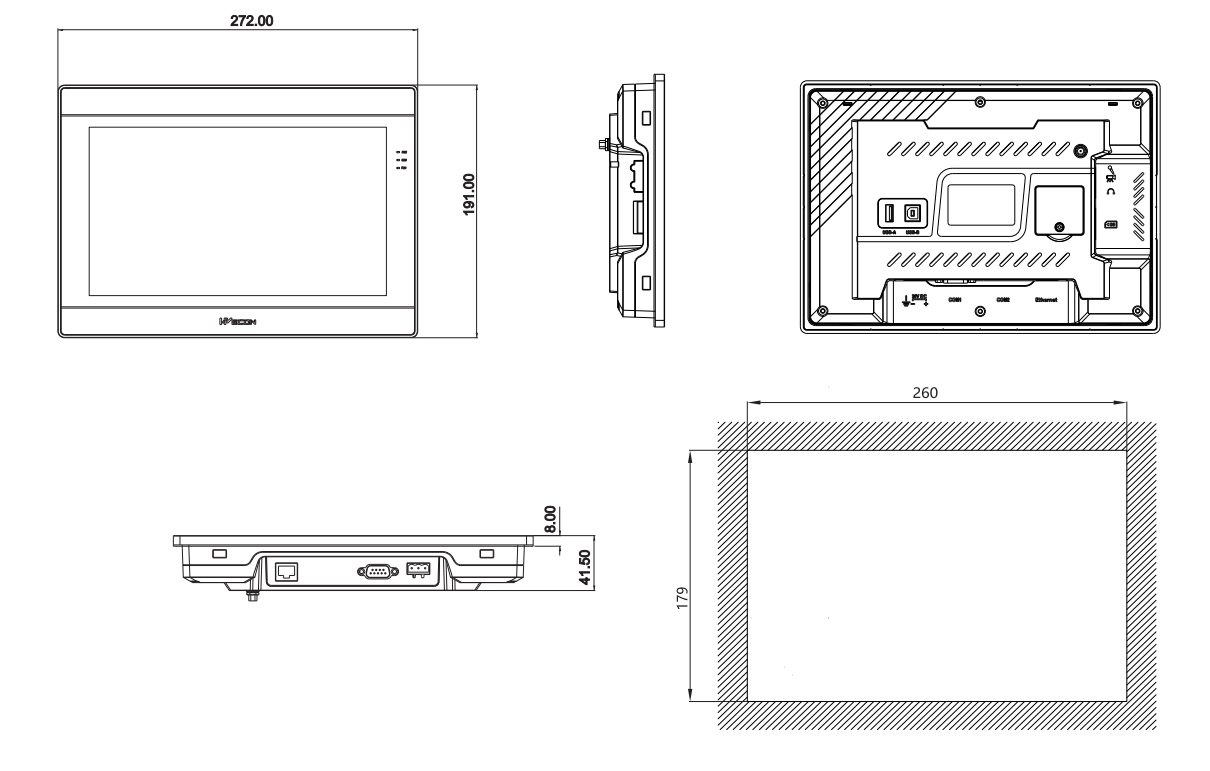

PI8102ig installation.png
