1. Small size, saving installation space;
2. Compatible with guide rail, easy and quick to install;
3. Multiple protection mechanisms, safe and secure;
4. 0-400Hz output frequency range;
5. 150% overload for 60s.

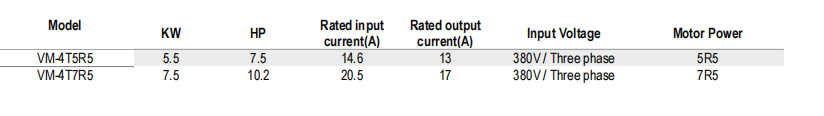

Available for 220V/Single phase, 380V/Three phase, 220V/Three phase

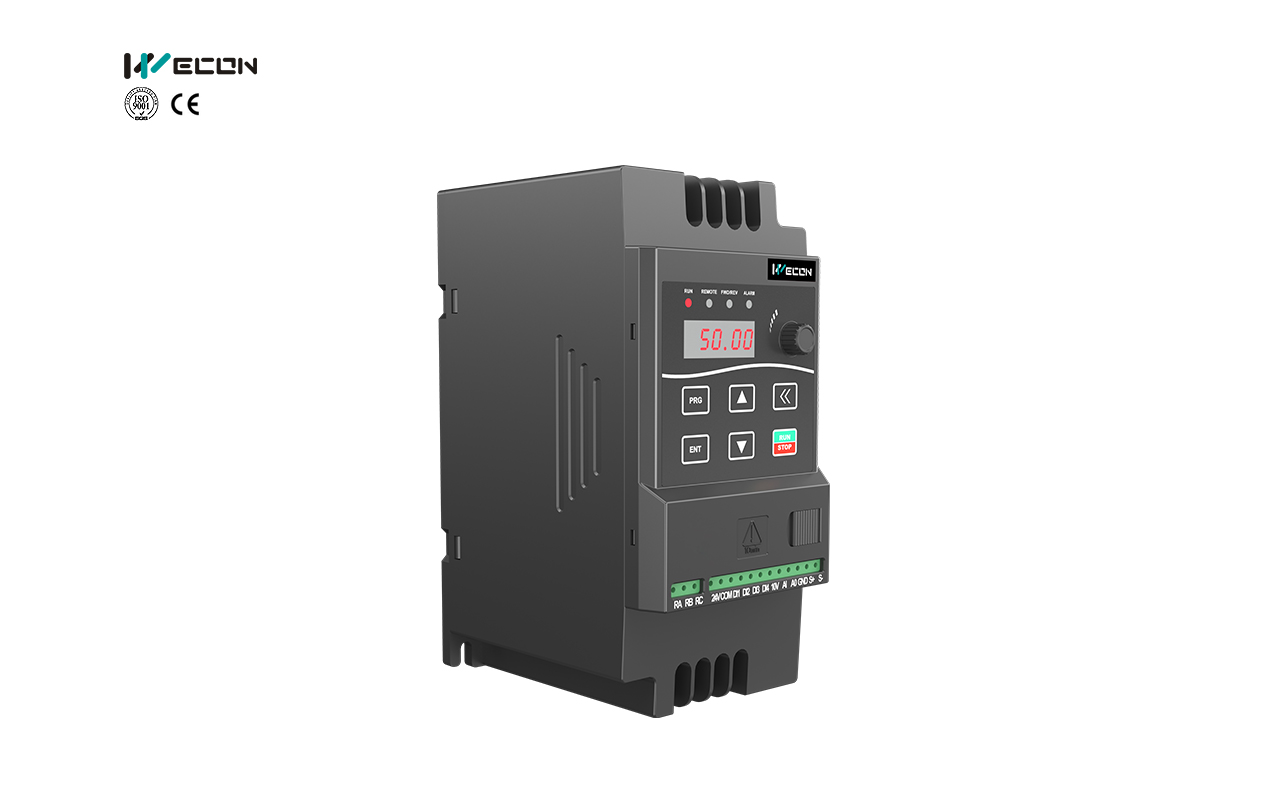

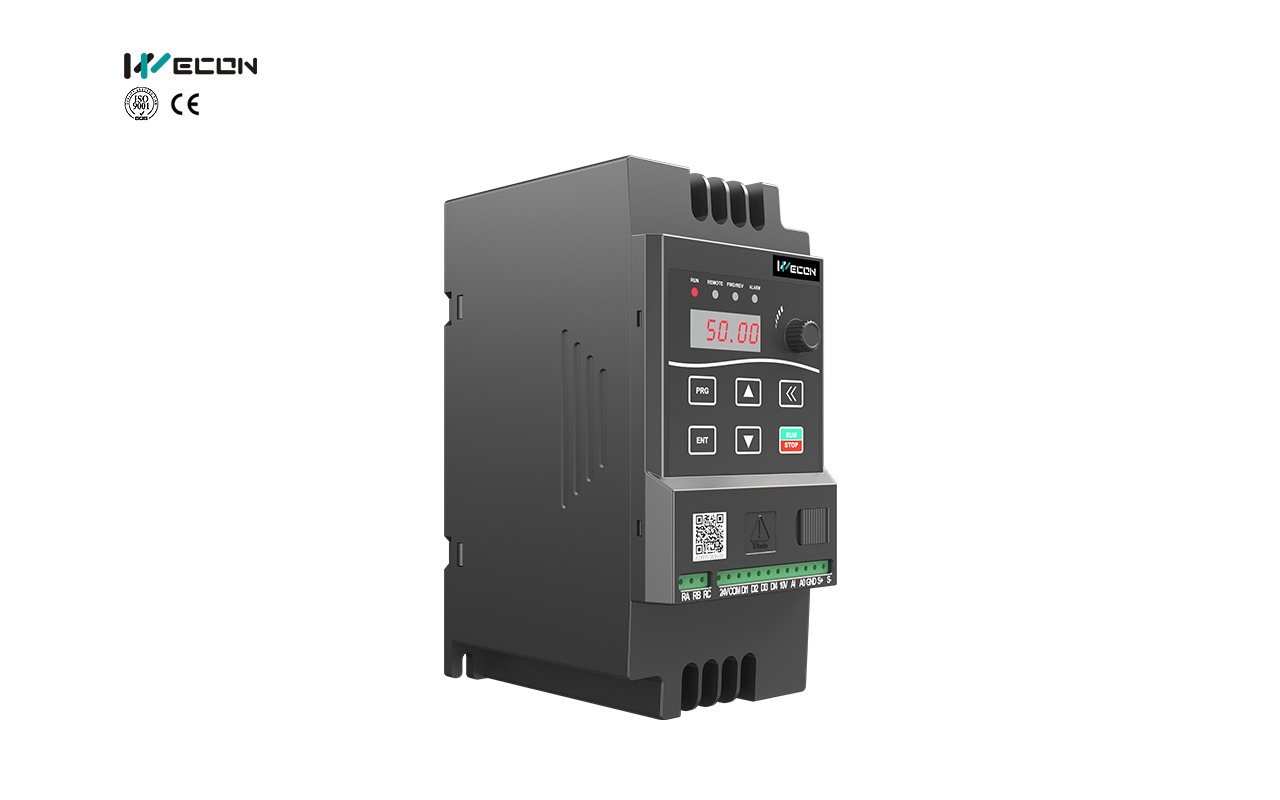

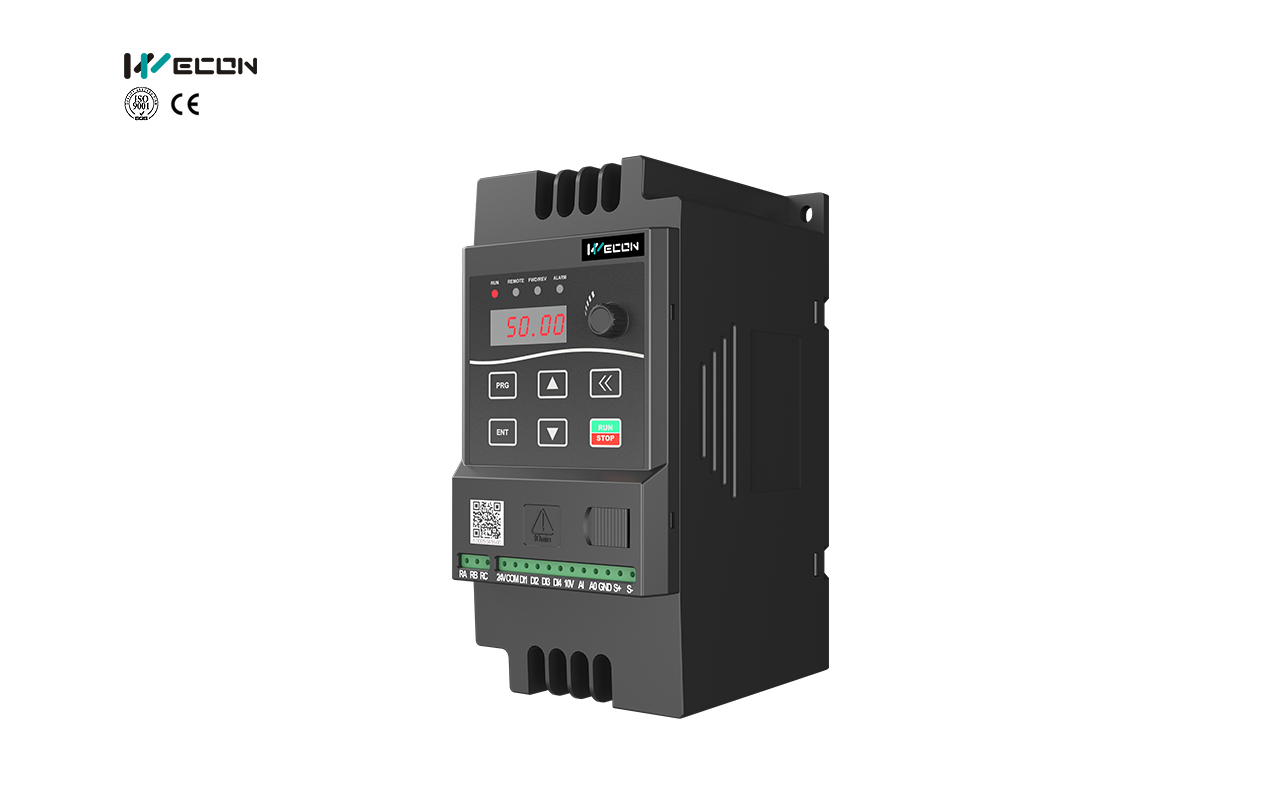

VM600 series is a new simply type general purpose AC drive with smaller size. It can improve stability and reliability to cope with various of simple speed regulation and control of Small machinery.
Compact Design
Compared with the previous product, the installation size is reduced by 30% and the volume is reduced by 45%, which is more conducive to saving installation space.
Excellent driving ability
Maximum frequency output is 600hz, which meets speed regulation requirements for most industrial scenes.
Overload capability is 150% rated current for 60S, which provides a wide range of strong driving capability.
Compatible with single-phasemotorandthree-phase asnchronous
High-efficiency Debugging
Equipped with marco function parameter, which will automatically adjust all related parameters when being adjusted then improve the setting efficiency.
Single Phase Motor Option
Changing speed for single phase motor, wide speed changing range, no current shock, equipment service time will be longer.
Two Installation Options
Improve installation convenience and installation efficiency, and further save installation space, suitable for side-by-side installation.
Specification
| Control Characteristics | Way to control | V/F control |
| Starting torque | 0.5Hz/100% | |
| Speed range | 1:50 | |
| Stable speed accuracy | ±1% | |
| Carrier frequency | 1kHz ～ 6kHz | |
| Overload capacity | G type machine: 150% rated current 60s, 180% rated current 1s | |
| Torque boost | Manual torque increase 0.1% ~ 30.0% | |
| Input / Output | Input voltage range | 220V/380V; fluctuation range: ±15% |
| Input frequency range | 50/60Hz; fluctuation range: ±5% | |
| Output voltage range | 0-input voltage, the error is less than 5% | |
| Output frequency range | V/F: 0-400Hz | |
| Input / Output terminals | Digital input | 4 terminals |
| Analog input | 1 terminal | |
| Relay output | 1 terminal | |
| Analog output | 1 terminal | |
| Application Environment | Altitude | Lower than 1000m, service is derated capability above 1000m, derate 1% capacity every 100m increased in height. |
| Humidity | ≤95%RH, avoid condensation | |
| Vibration | Vibration acceleration is less than 0.6g | |
| Storage temperature | ‘-25℃～+60℃ | |
| Enclosure | Shell material | ABS+PC |

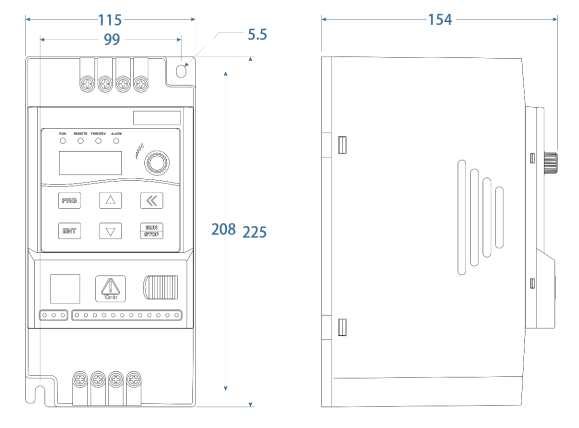

| Overall size (mm) | 225.00H*115.00W*154.00D | |
| Weight (Kg) | 2.5 | |
| Package Dimensions (mm) | 308.00H*198.00W*221.00D |
