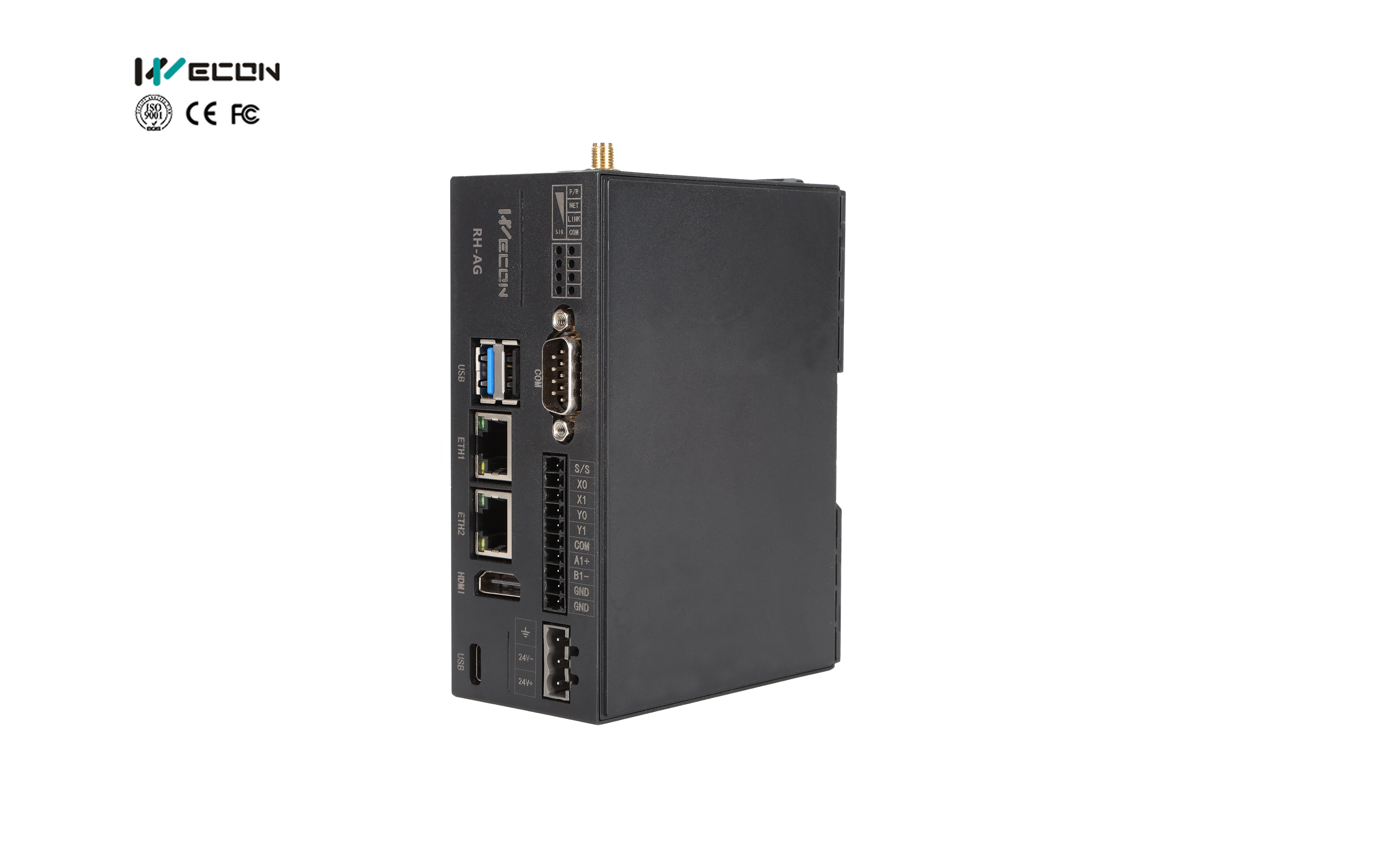

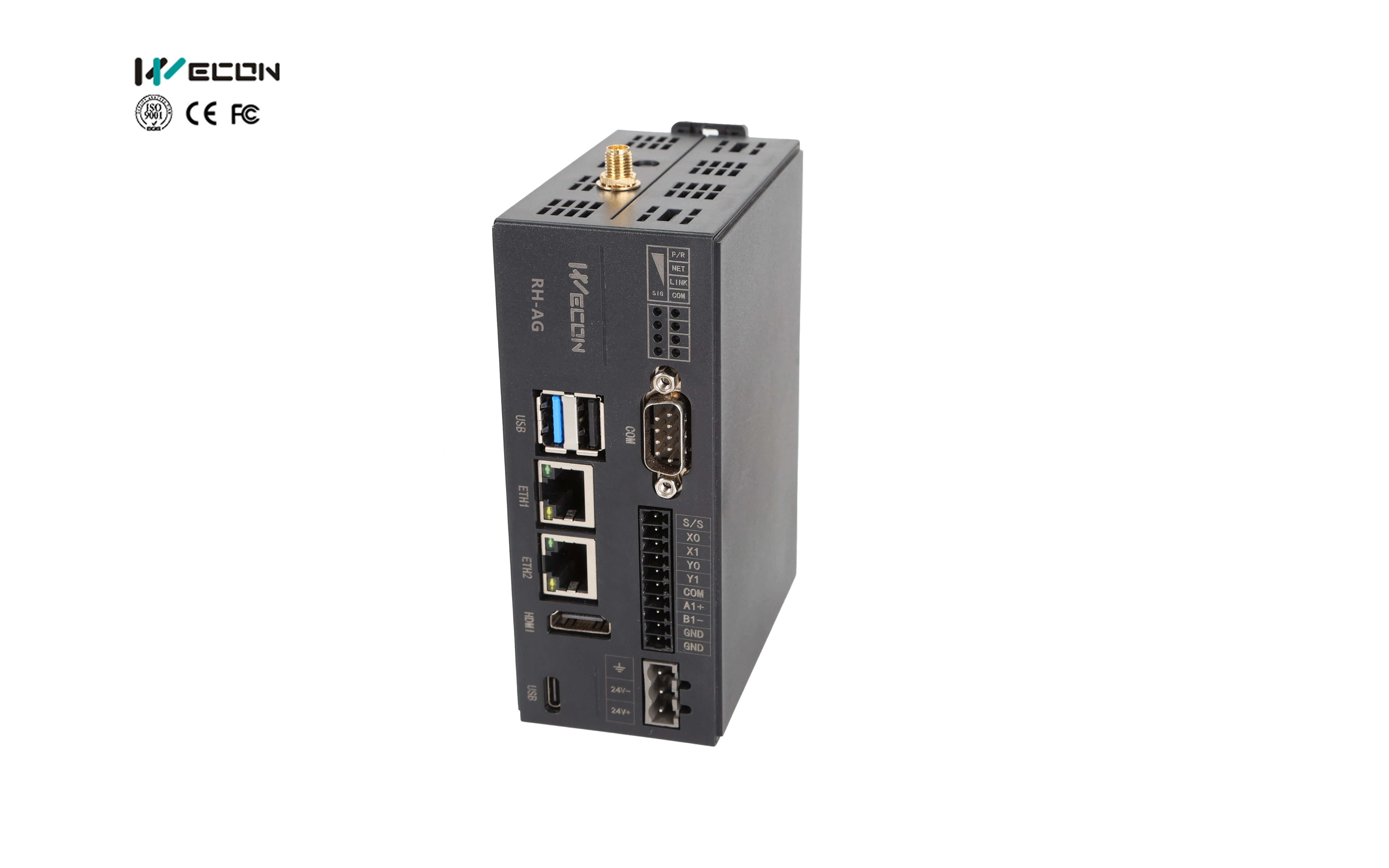

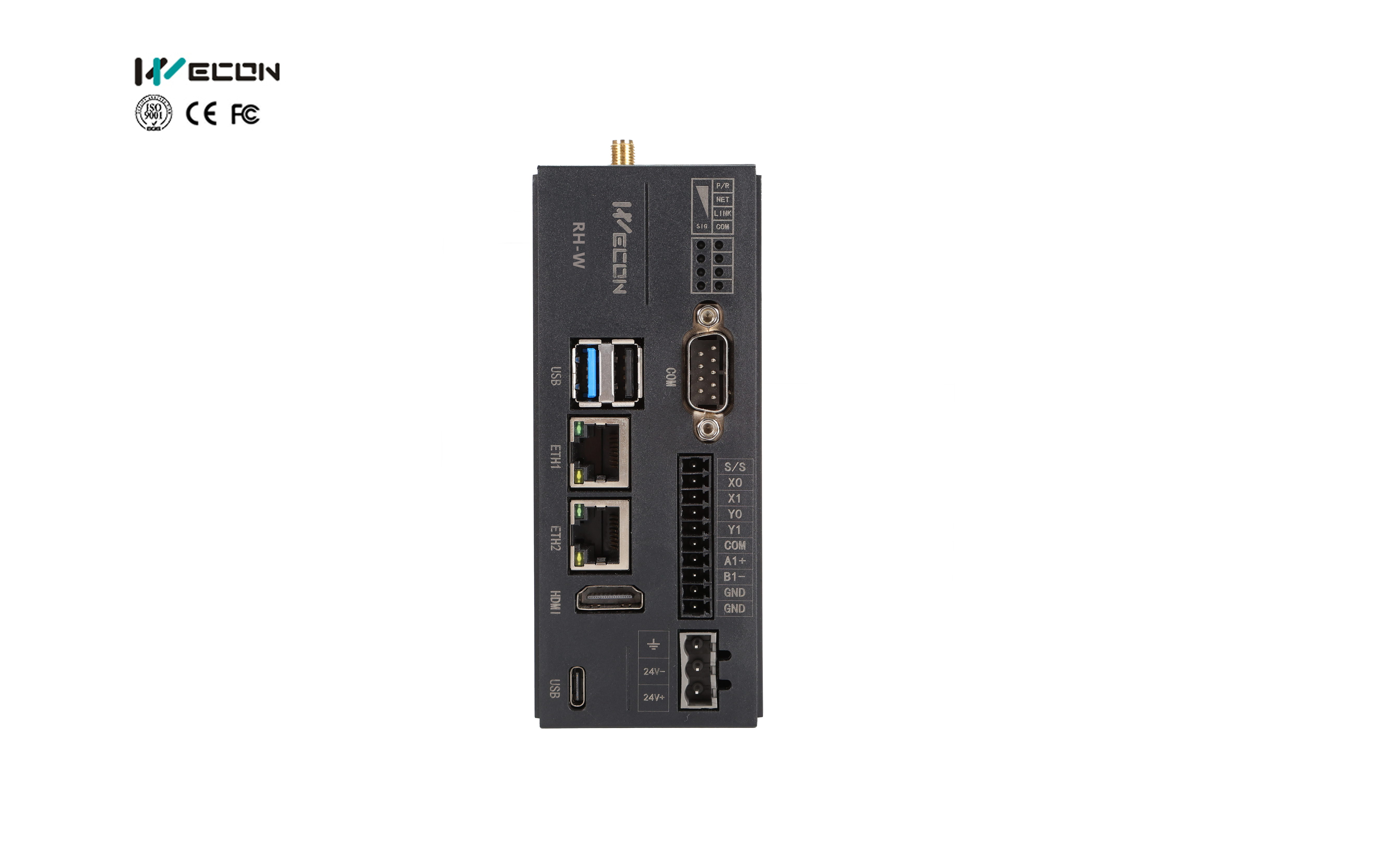

V-BOX RH Series

Storage capacity: 4GB eMMC, 1GB RAM

* 2 Ethernet ports; 1 HDMI interface; Serial port COM1: RS232, RS422/RS485, COM2: RS485

* 2 relay outputs, 2 optocoupler isolated inputs

* Built-in 4G module;  Built-in WIFI module (RH-GW)

* Data monitoring: 300 real-time data monitoring points, 200 alarm data monitoring points, 100 historical data monitoring points.

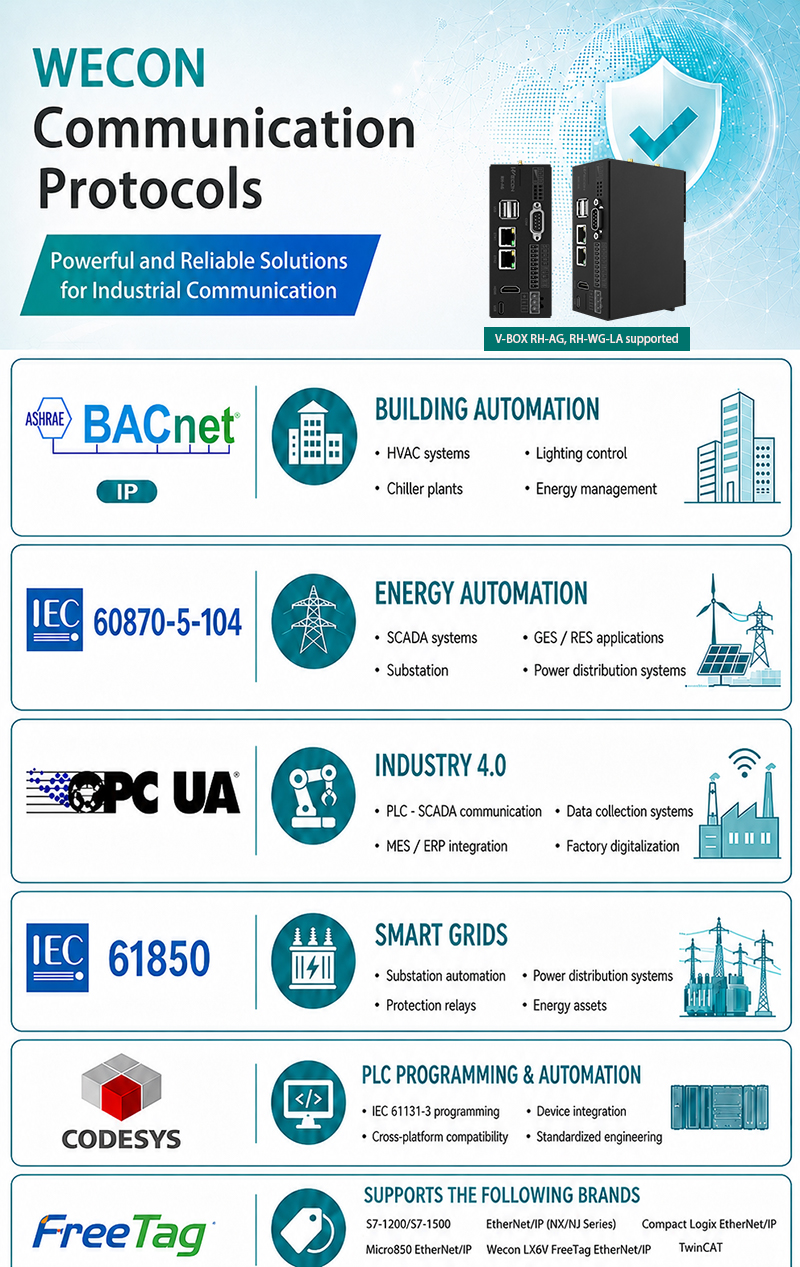

* Supports LUA script, WVPN pass-through, and API interfaces.

* Supports free-tag protocol for major PLC brands (RH-AG)







Datasheet Inquiry sales@we-con.com.cn
Specification
Physical & Electrical


ModelCOMEthernetMonitoringAlarmData RecordValidity

WVPN

 Passthrough

Script
V-BOX RH-004 in 32300200100

60 days /

 1 millions

 YesYes
V-BOX RH-W500400200
V-BOX RH-G500400200
V-BOX RH-WG300200100
V-BOX RH-AG1000800400
VBOX RH-WG-LA300200100



SPECIFICATIONS

Items

V-BOX RH-00

V-BOX RH-W

V-BOX RH-G

CPU

Cortex-A55 4 Core

Flash

4GB

RAM

1GB

TF Card

YES

USB HOST

USB 2.0 *2 (Non-isolated)

USB DEVICE

TYPE-C * 1 (Only supports downloading projects)

Serial Port

COM1RS232, RS485/RS422 (2 in 1)

COM2: RS485

Ethernet Port

2 * Ethernet ports

Beep

Yes

WIFI Module

N/A

Yes

N/A

4G Module

N/A

N/A

Yes

Power Supply

24VDC (12~28VDC)

Power Consumption

<10w

Enclosure

PC+ABS

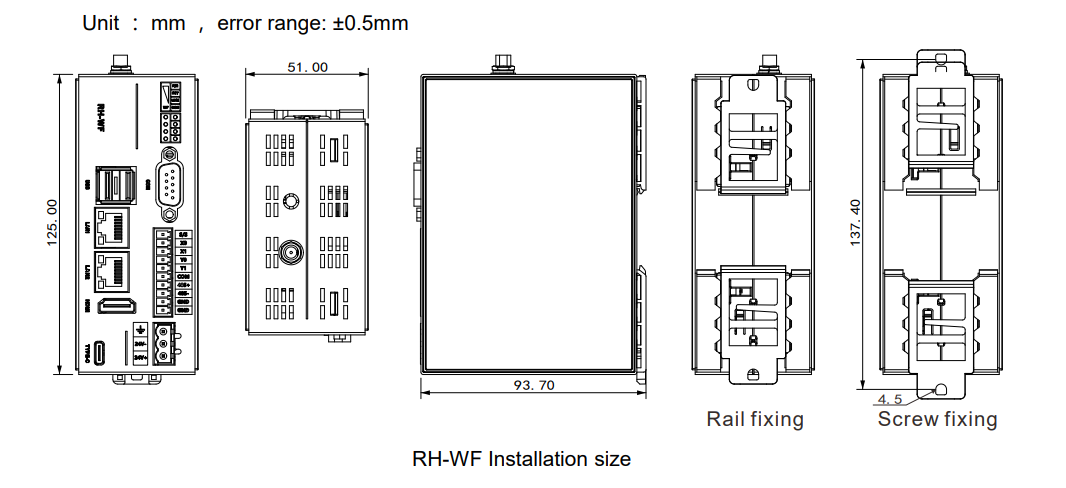

Dimension (W*H*D)

125.0mm*93.7mm*51.0mm

Vibration Resistance

IEC61131-2 Standard

Storage Temperature

-20°C~70°C

Working Temperature

-10°C~60°C

Relative Humidity

10~90% RH (Non-condensing)

CE Certification

CE Marked

FCC Certification

FCC Class A

Programming

PIStudio

HTTP Interface

Yes

Remote Update

N/A

Configuration Backup

N/A

Off-line Transmission

Yes

Big Screen Display

Yes

HDMI

Yes (HDMI 2.0 *1)

Touchscreen Function

Only Support WS21 Screen


Items

V-BOX RH-AG

V-BOX RH-WG

V-BOX RH-WG-LA

CPU

Cortex-A55 4 Core

Flash

4GB

RAM

1GB

TF Card

YES

USB HOST

USB 2.0 *2 (Non-isolated)

USB DEVICE

TYPE-C * 1 (Only supports downloading projects)

Serial Port

COM1RS232, RS485/RS422 (2 in 1)

COM2: RS485

Ethernet Port

2 * Ethernet ports

Beep

Yes

WIFI Module

N/A

Yes

Yes

4G Module

Yes

Yes

Yes

Power Supply

24VDC (12~28VDC)

Power Consumption

<10w

Enclosure

PC+ABS

Dimension (W*H*D)

125.0mm*93.7mm*51.0mm

Vibration Resistance

IEC61131-2 Standard

Storage Temperature

-20°C~70°C

Working Temperature

-10°C~60°C

Relative Humidity

10~90% RH (Non-condensing)

CE Certification

CE Marked

FCC Certification

FCC Class A

Programming

PIStudio

HTTP Interface

Yes

Remote Update

N/A

Configuration Backup

N/A

Off-line Transmission

Yes

Big Screen Display

Yes

HDMI

Yes (HDMI 2.0 *1)

Touchscreen Function

Only Support WS21 Screen


RH-4G/WG/WG-L model frequency code

LTE FDD

LTE TDD

B1/B3/B5/B8

B34/B38/B39/B40/B41


RH-AG model frequency code

LTE FDD

LTE TDD

WCDMA

GSM

B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66

B34/B38/B39/B40/B41

B1/B2/B4/B5/B6/B8/B19

850MHz/900MHz/1800MHz/1900MHz


Remark: Please contact us for confirmation about 4G Compatibility before purchase.
