8 inputs, 8 transistor outputs
16 inputs
16 transistor outputs
Model | Channels | Functionality | Description |
LX6V-0808EXYT | 16 | 8 inputs, 8 transistor outputs | 8 channels switch input and 8 channels transistor output. Input supports NPN or PNP. 8 Output supports NPN. |
LX6V-16EX | 16 | 16 inputs | 16-channel switch input; Input supports NPN or PNP. |

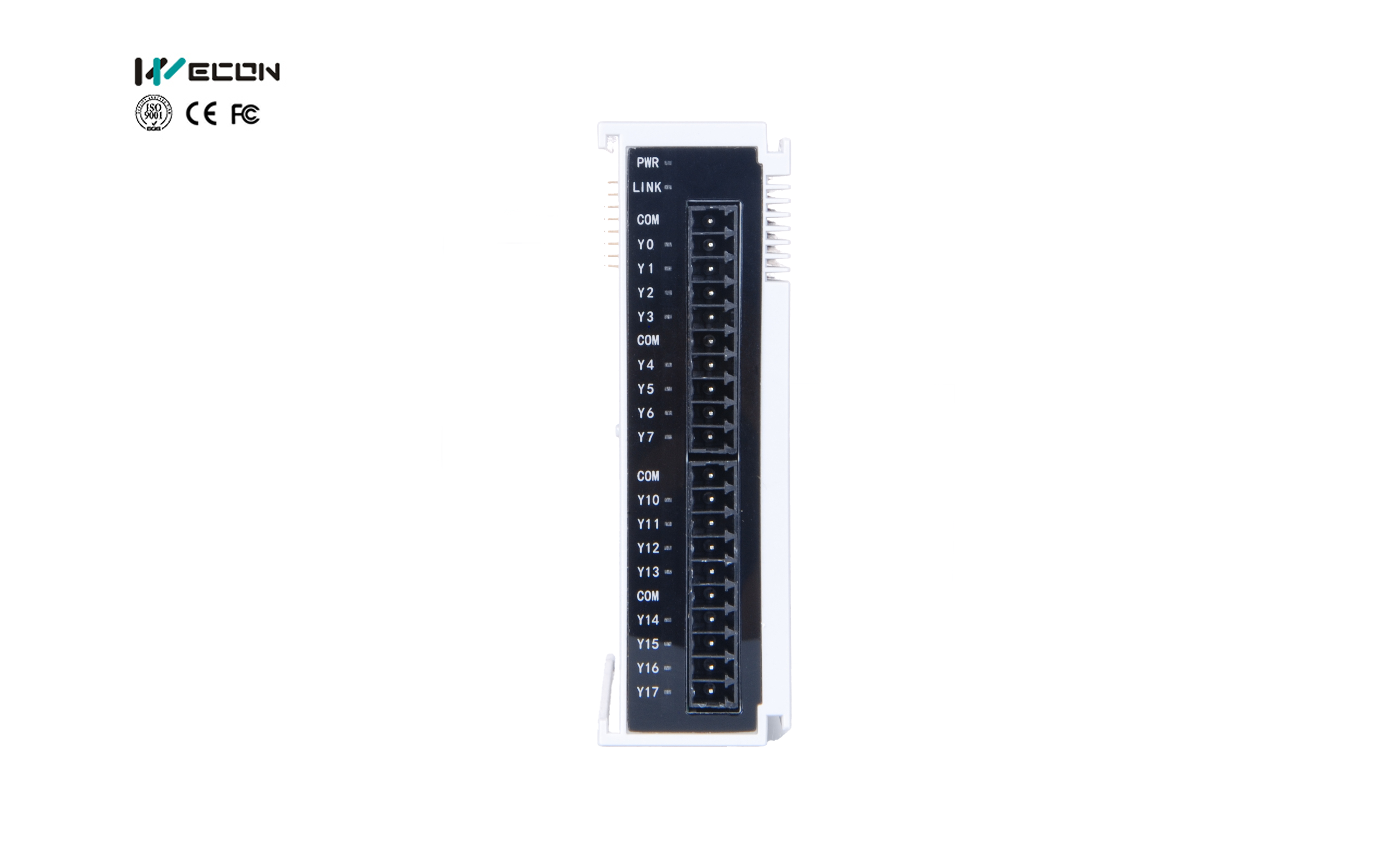

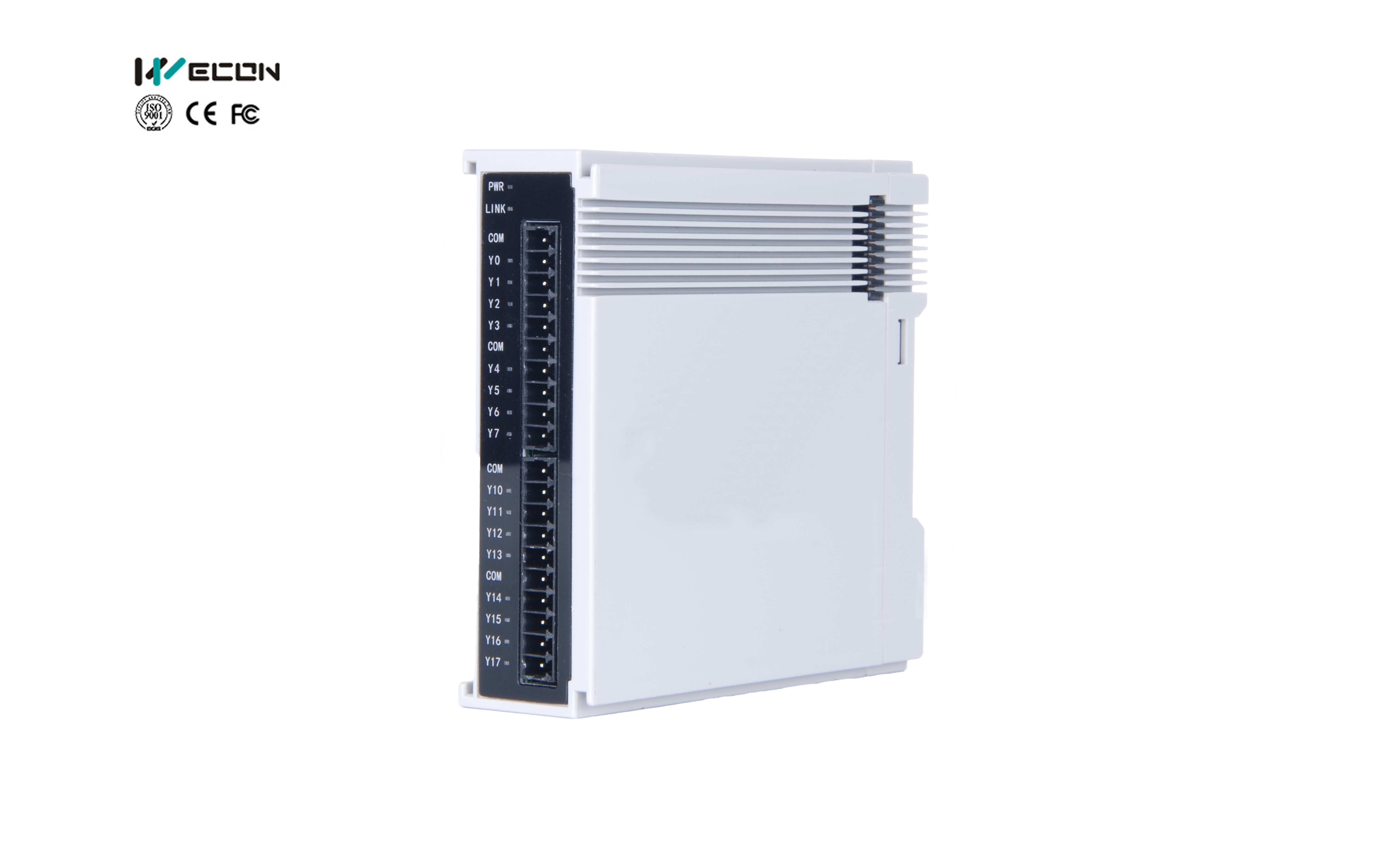

LX6V-16EYT | 16 | 16 transistor outputs | 16-channel transistor output; Output supports NPN. |
Specification
Item | Digital Input | |
Input Circuit Composition |
|
The figure shows NPN connection. If S/S is connected to 24V negative electrode and X is connected to positive electrode, it is PNP connection. |
Input Signal Voltage | DC±24V ±10% | |
Input Signal Current | 7mA/DC24V (The input current when inputting standard 24V.) | |
Input ON Current | Above 3.5 mA | |
Input OFF Current | Below 1.5 mA | |
Input Response Time | About 0.2ms | |
Input Signal Form | Contact input: supports NPN and PNP input | |
Circuit Insulation | Transformer isolation | |
Action Display | When ON is input, LED lights is on. | |
Item | Transistor Output | |
Output Circuit Composition |
| |
External Power Supply | DC5~30V | |
Circuit Insulation | Transformer isolation | |
Action Display | LED lights is on when running | |
Maximum load | Resistance Load |
0.4 A/1 point |
Inductive Load |
9.6W/DC24V | |
Lamp Load | 0.9 W/DC24V | |
Open Circuit Leakage Current |
0.1 mA / DC30V | |
Minimum Load | － | |
Response Time | OFF → ON | About 0.2ms |
ON→OFF | About 0.2ms | |

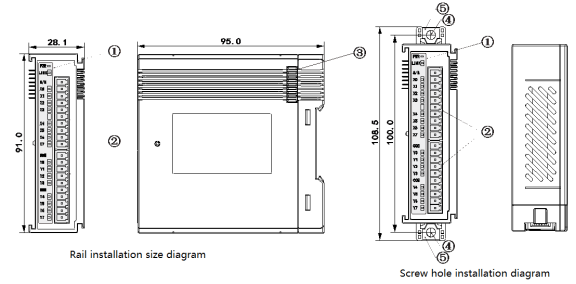

①I/O LED；②I/O terminal；③Expansion module interface； ④Installation hole: 2 (Φ4.5) ；⑤DIN rail fastener
