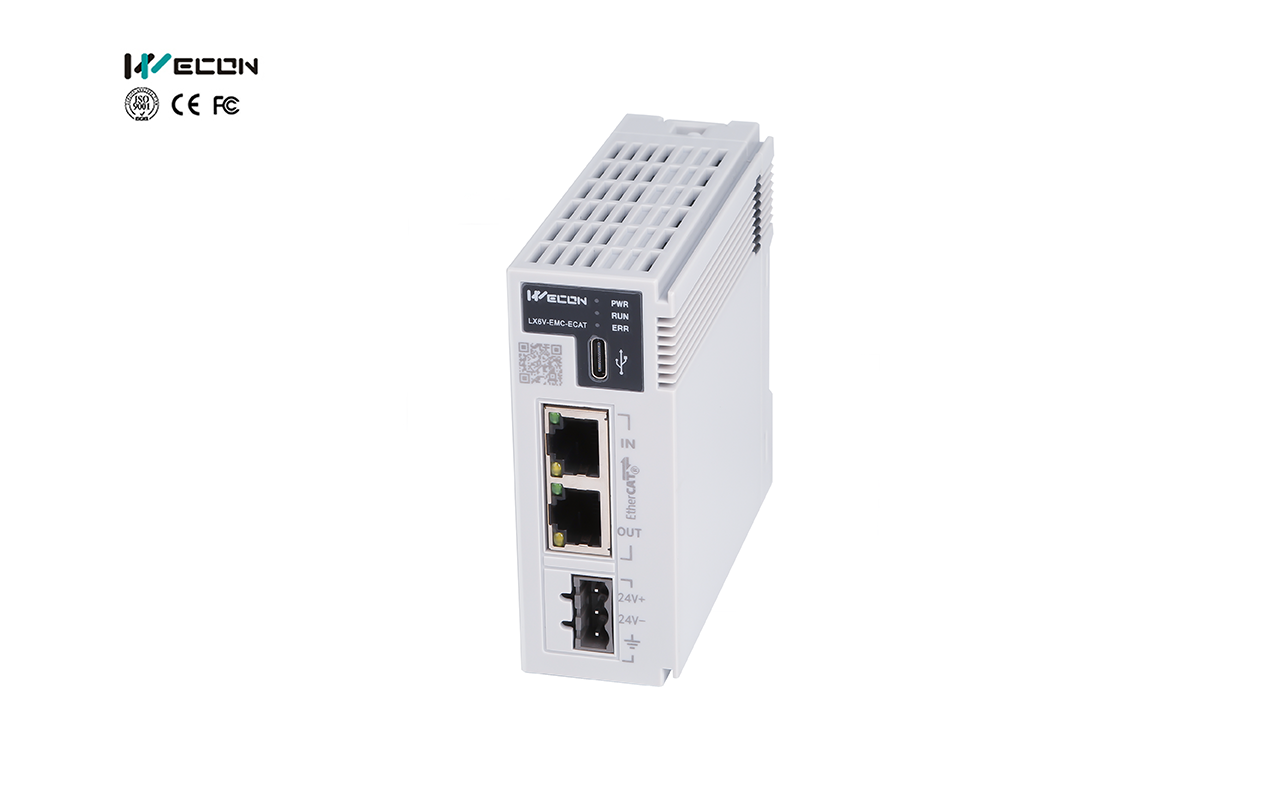

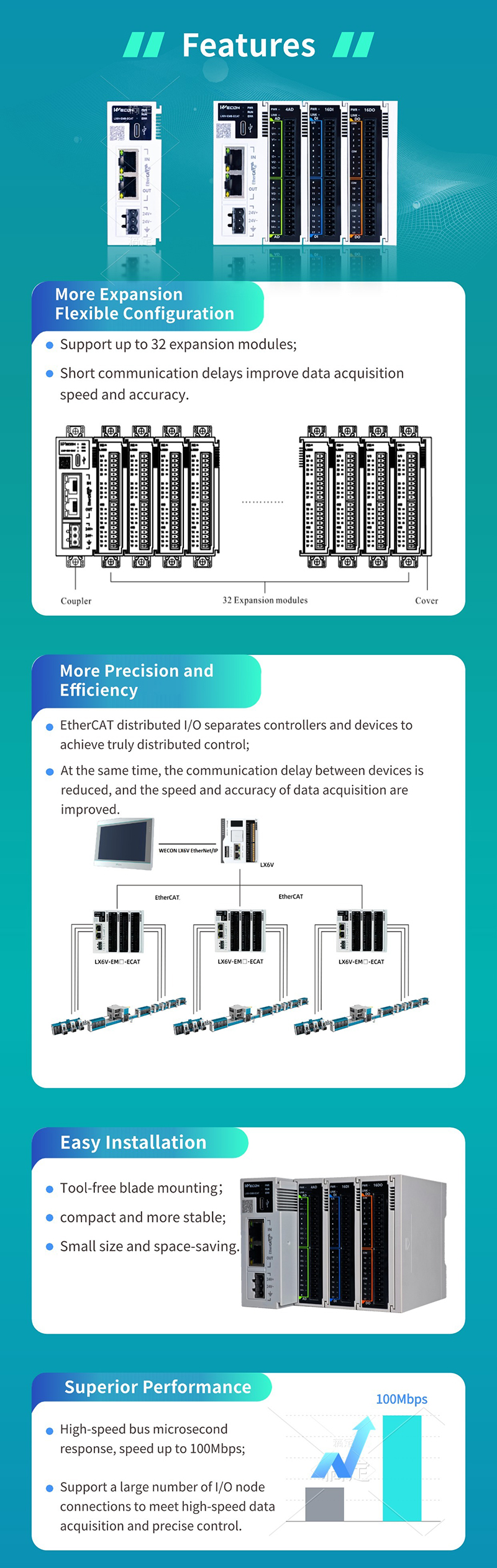

LX6V-EMB-ECAT communication modules support EtherCAT communication, with automatic scanning function, and adapt to our company and third-party EtherCAT master station equipment: PLC, PCB, etc. Features:
l Compact structure and convenient installation;
l Response at microseconds of high-speed bus;
l The maximum number of expansion modules is 32, and the total power of modules≤48W.
Item | LX6V-EMB-ECAT |
Rated Input Voltage | DV 24V±10%@100mA (excluding expansion module) |
Communication Interface | RJ45×2, EtherCAT communication protocol with performance100Mbps: IN interface is EtherCAT input port; OUT interface is an EtherCAT output port, which is used for connecting the subsequent EtherCAT slave; |
Transmission Distance | Length of communication line between two nodes≤100m |
Transmission Medium | Category 5E (cat 5e) cable or above |
Single AP Process Data | Maximum input and output 1024 bytes |
Synchronous Period | Minimum 125us |
Allowable Instantaneous Power Outage Time | 10ms |
Impulse Current | ≤ 45A (with maximum module load) |
Power Protection | Anti-reverse connection protection, overcurrent protection and surge absorption |
Maximum Number of Expansion Modules |
16 |
Firmware Upgrade | Support |

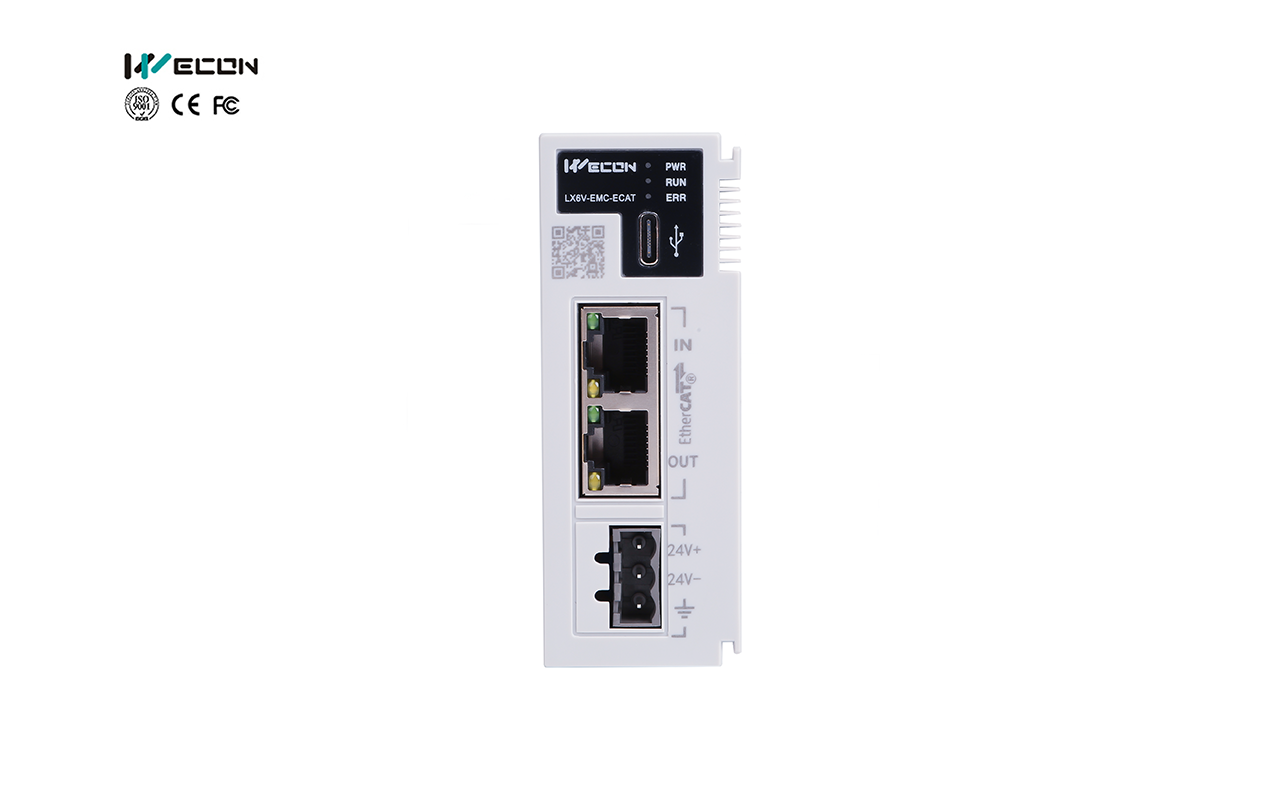

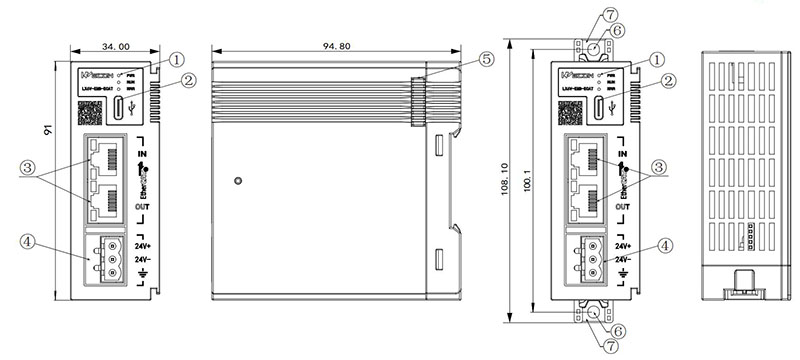

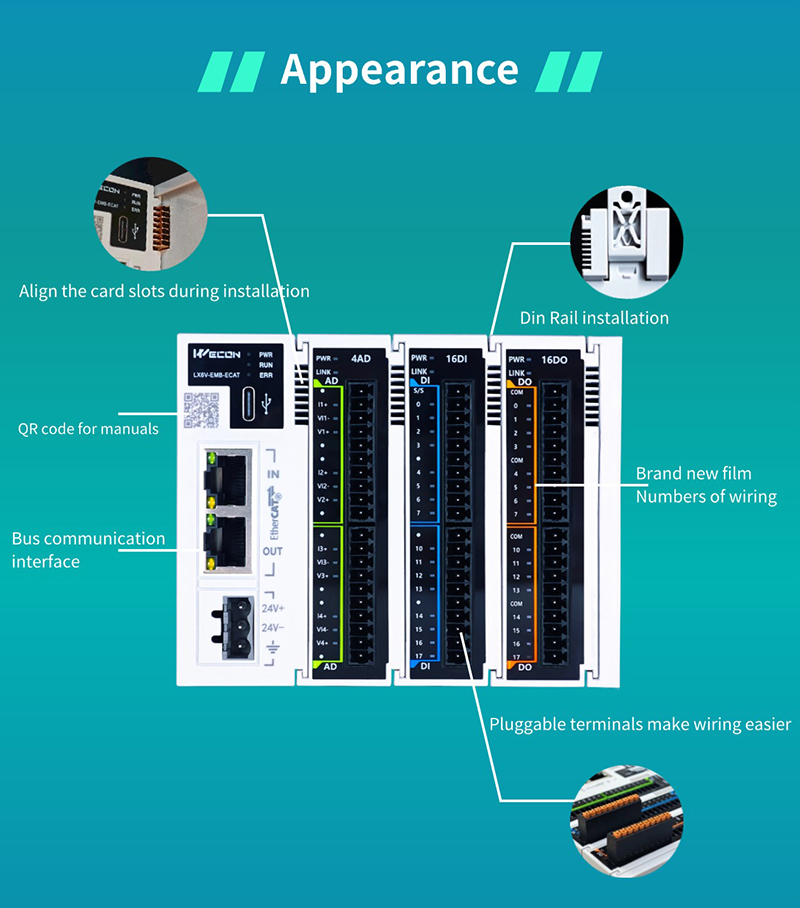

Serial Number | Interface | Function Definition | |||
1 | Signal Indicator | PWR | Power indicator | Off | No power supply |
On | When the power supply is on | ||||
RUN | Running indicator | Off | ECT module is in INIT status | ||
Flashing (white) | ECT module is in Pre Op status | ||||
Single flash (white) | ECT module is in Safe-Op status | ||||
Normally on (white) | ECT module is in Operational status | ||||
ERR | Communication fault indicator | Off | EtherCAT communication is in normal status | ||
Flashing (Red) | EtherCAT communication receives status transition instructions that cannot be executed | ||||
Single flash (red) | Network disconnection, ECT module synchronization error | ||||
Normally on (Red) | Watchdog error occurred in EtherCAT communication | ||||
2 | USB Communication Interface (Type-C) | Used for single board software upgrade | |||
3 | EtherCAT Interface | IN: EtherCAT input port | |||
OUT: EtherCAT output interface | |||||
4 | 24V power Input Interface | Module power input terminal | |||
5 | Expansion Module Interface | Connect LX6V Series expansion module | |||
6 | Mounting Hole | 2 places, φ4.5 | |||
7 | DIN Rail Fastener | ||||
