4-channel analog input/output module.
Model | Channels | Functionality | Description |

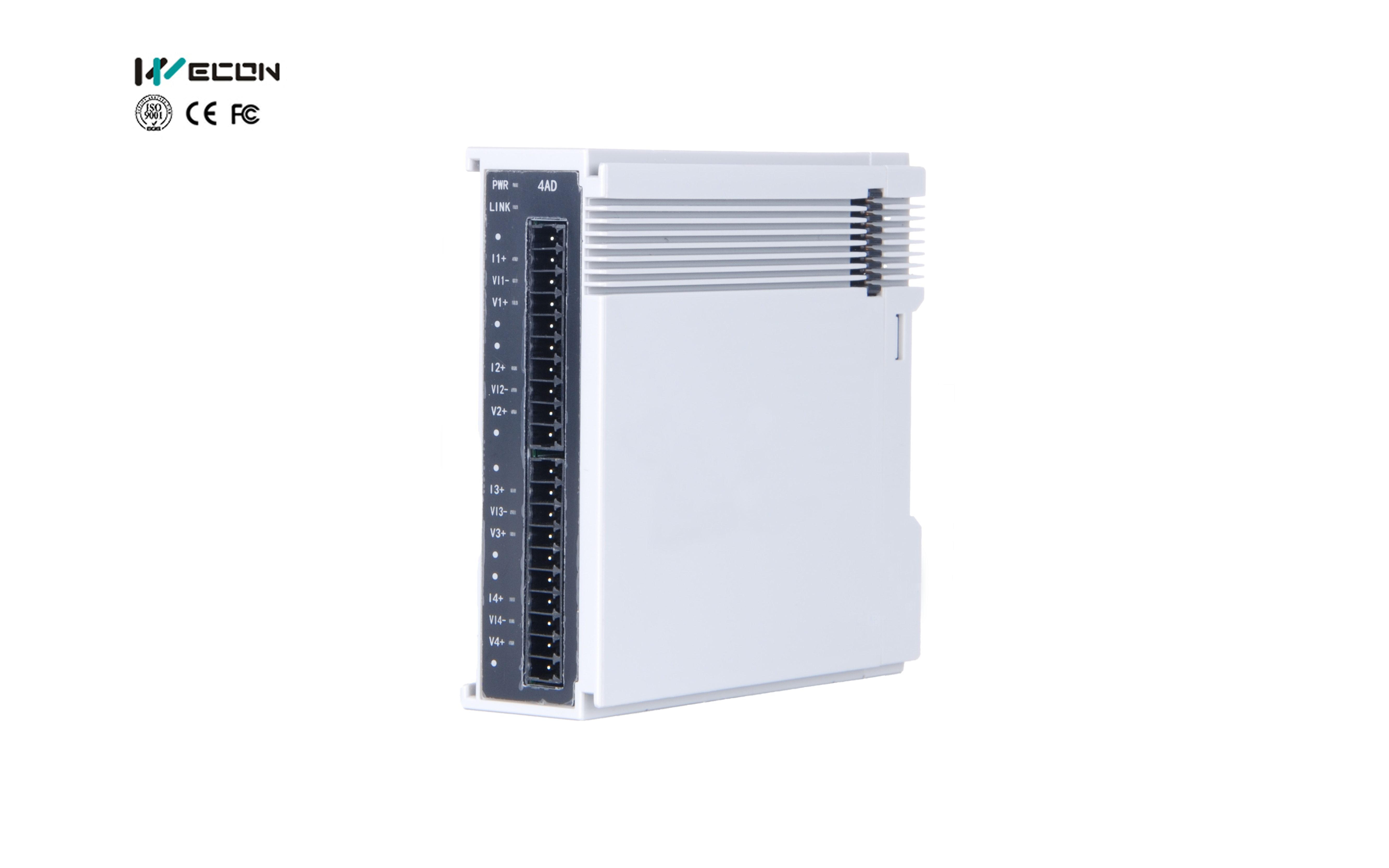

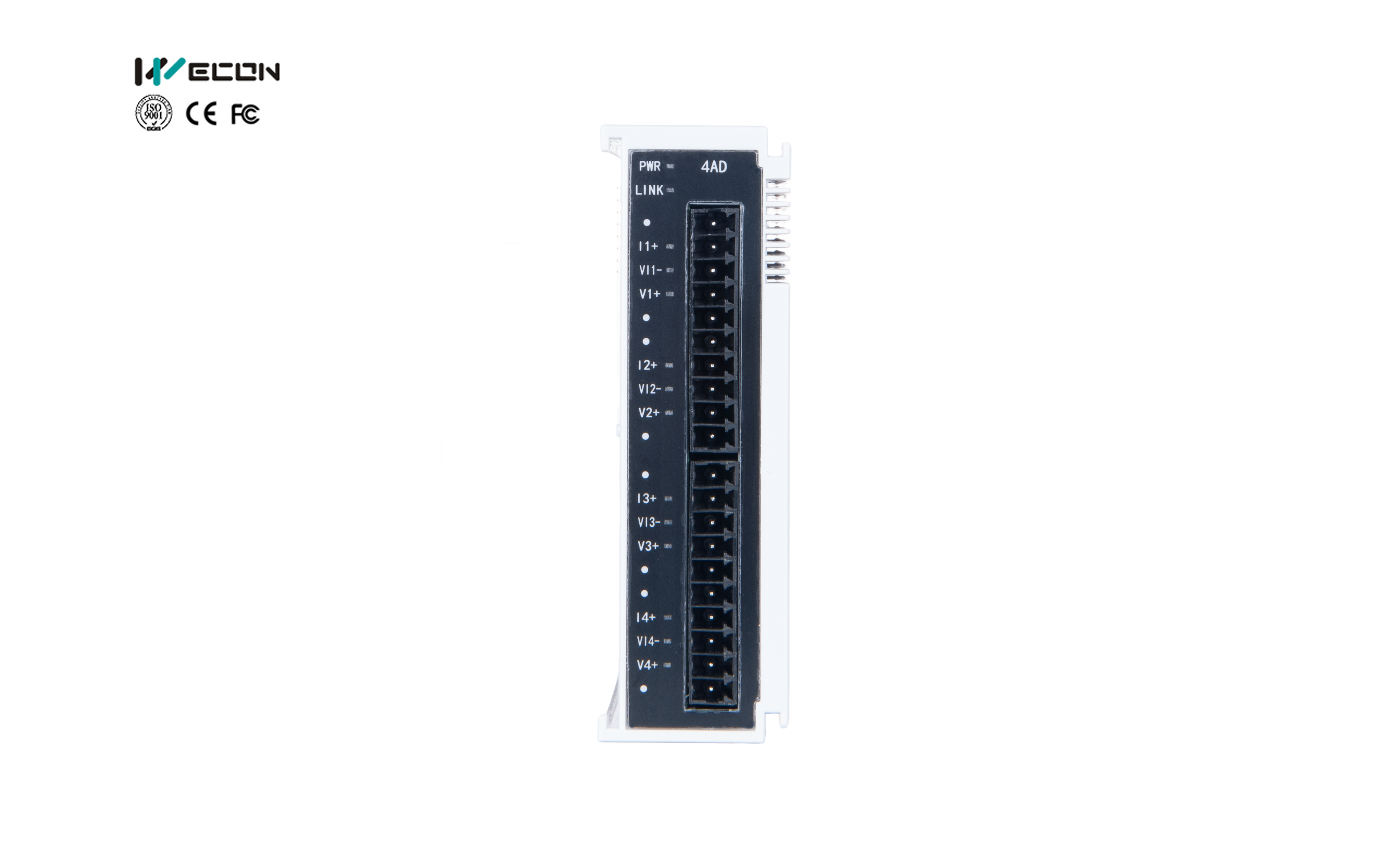

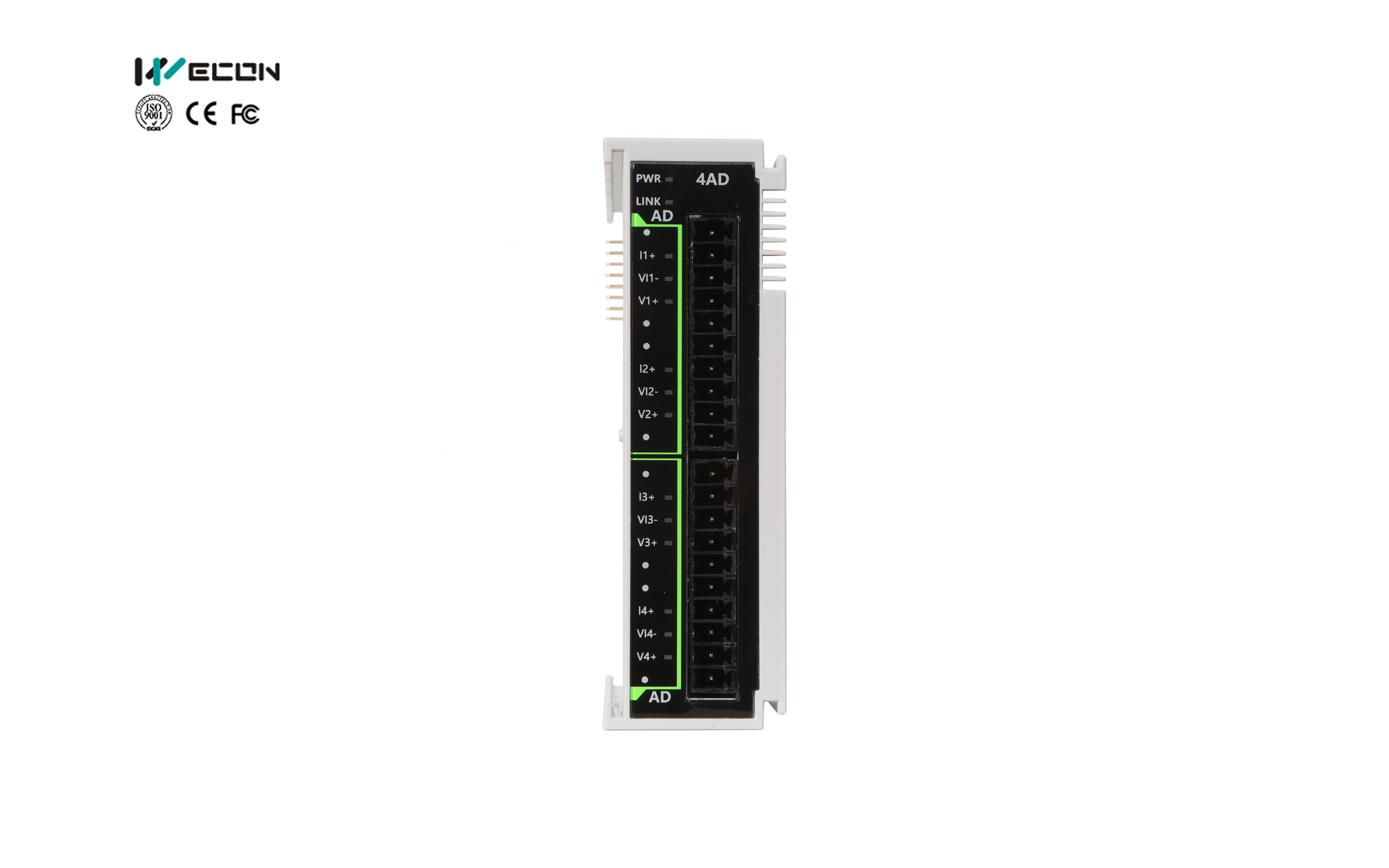

LX6V-4AD | 4 | 4 inputs | 4-channel analog input module. |

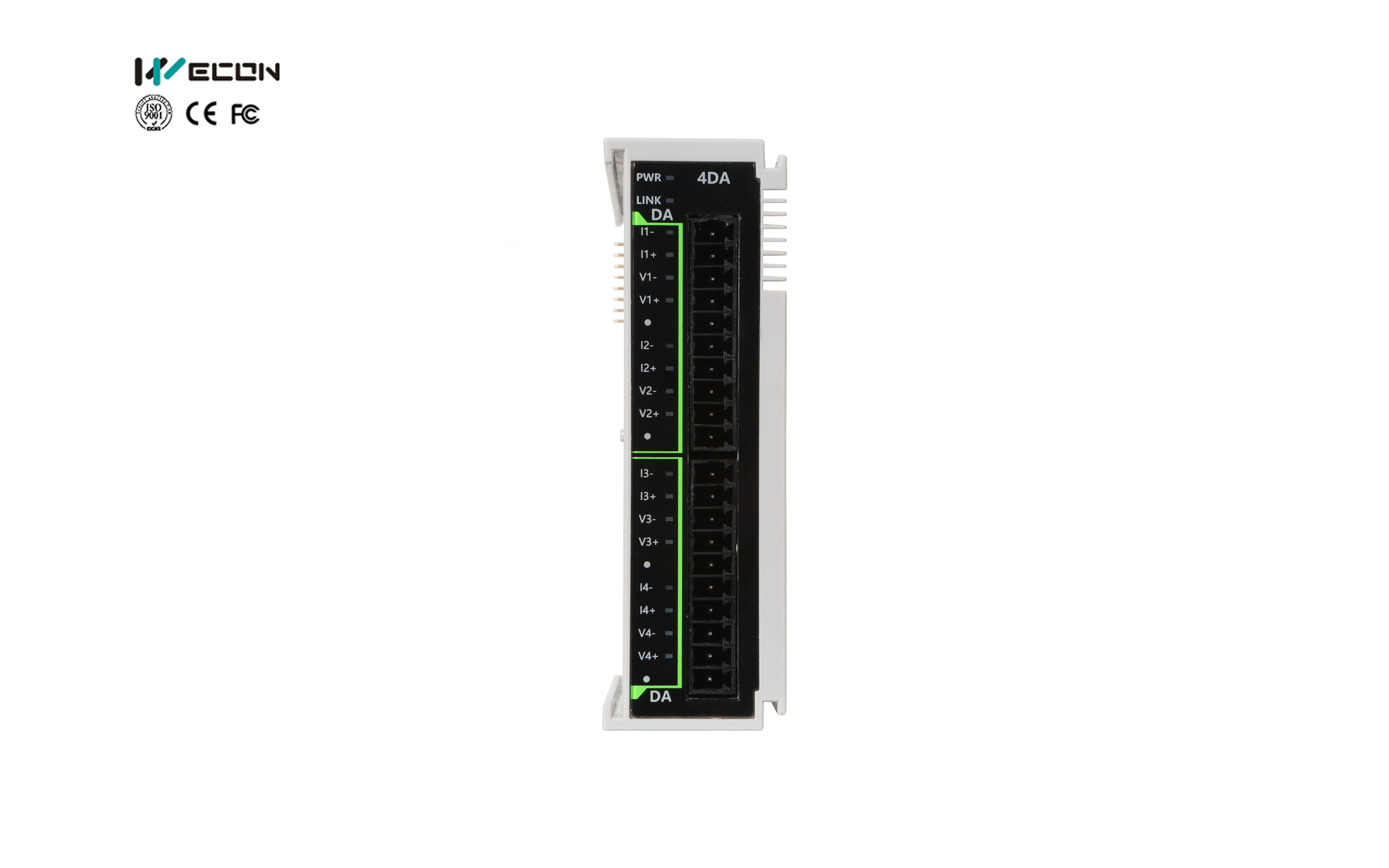

LX6V-4DA | 4 | 4 outputs | 4-channel analog output module. |
Specification
Item | Digital Input | |
Input Circuit Composition |
|
The figure shows NPN connection. If S/S is connected to 24V negative electrode and X is connected to positive electrode, it is PNP connection. |
Input Signal Voltage | DC±24V ±10% | |
Input Signal Current | 7mA/DC24V (The input current when inputting standard 24V.) | |
Input ON Current | Above 3.5mA | |
Input OFF Current | Below 1.5mA | |
Input Response Time | About 0.2ms | |
Input Signal Form | Contact input: supports NPN and PNP input | |
Circuit Insulation | Transformer isolation | |
Action Display | When ON is input, LED lights is on. | |
Item | Analog Output |
Output Circuit Composition |
|
Output Mode | Voltage/current |
Output Channel | 4 |
Resolution | 1/20,000, hardware can meet 16bit resolution |
Voltage Output Range | -10V-10V |
Voltage Output Load | ≥2KΩ |
Voltage Output Diagnosis | Support non-zero voltage output short-circuit detection with about 14mA overcurrent protection |
Current Output Range | 020mA, 4-20mA |
Current Output Load | ≤ 500Ω |
Current output Diagnosis | Support non-zero current output open circuit detection |
Comprehensive Precision | ±1% |
Conversion Speed | Approximately 1ms |
Power Supply | Interface power supply, DC24V±10%, 125mA |

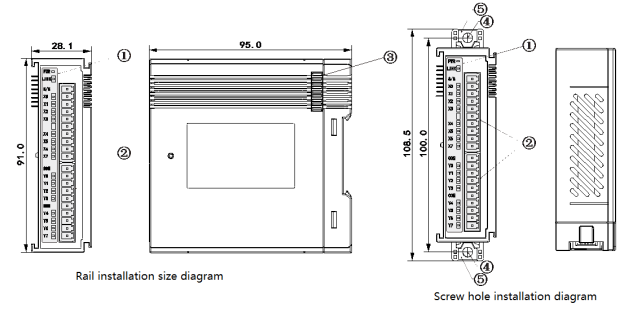

①I/O LED；②I/O terminal；③Expansion module interface； ④Installation hole: 2 (Φ4.5) ；⑤DIN rail fastener
