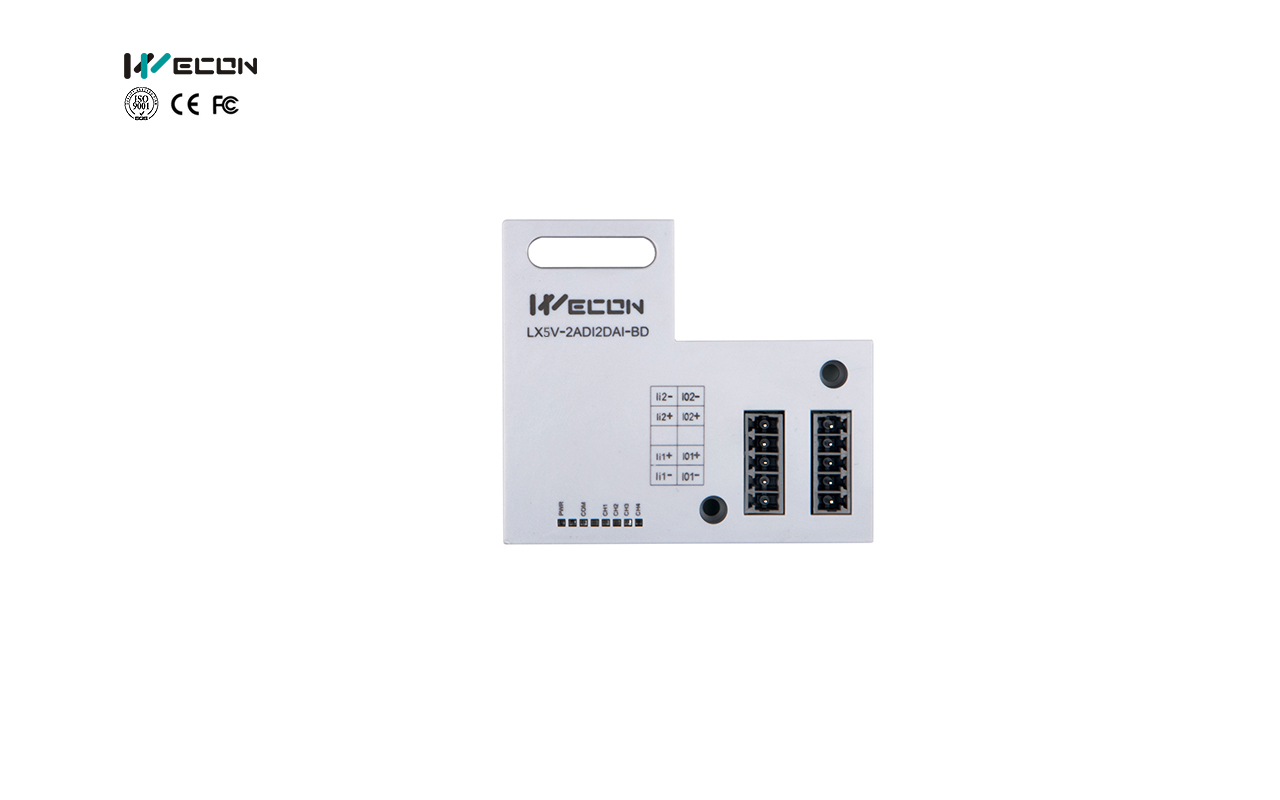

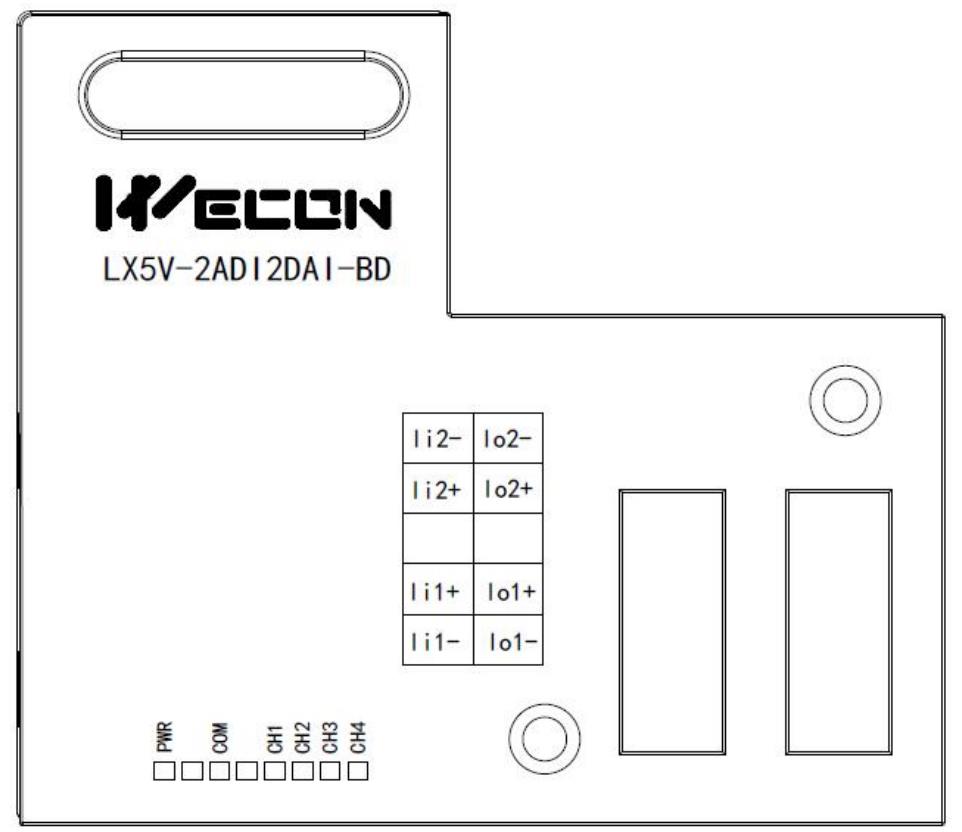

LX5V-2ADI2DAI-BD

4

12 bits

2 * Analog Input/ Analog Output (4~20mA)

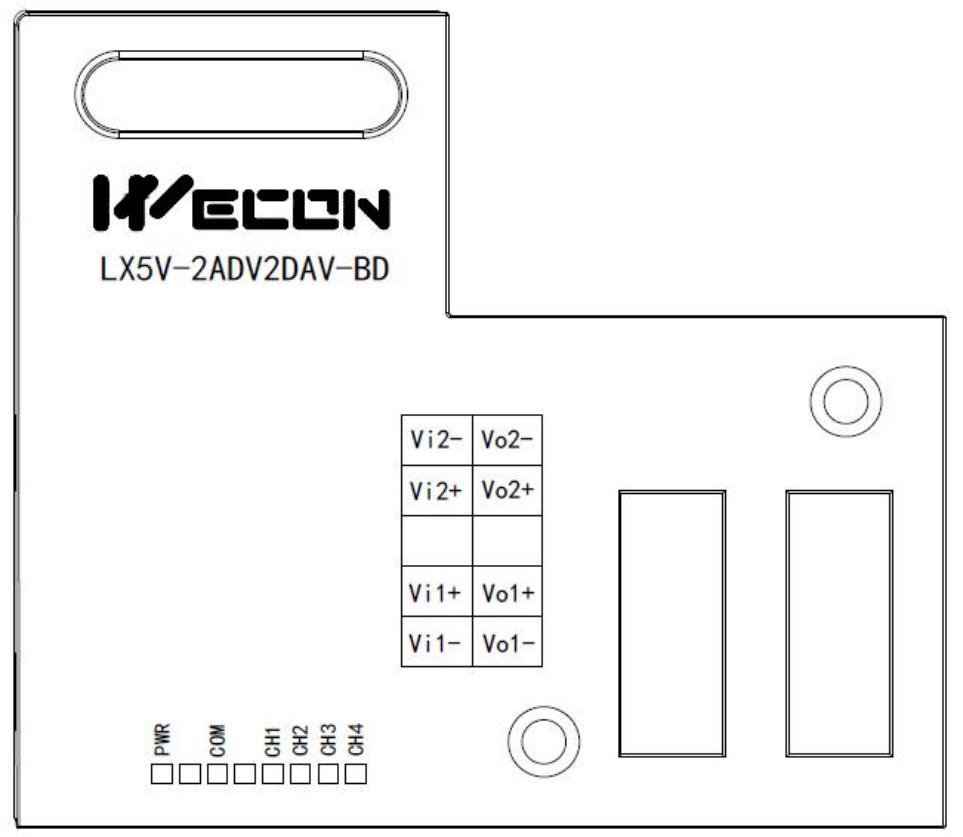

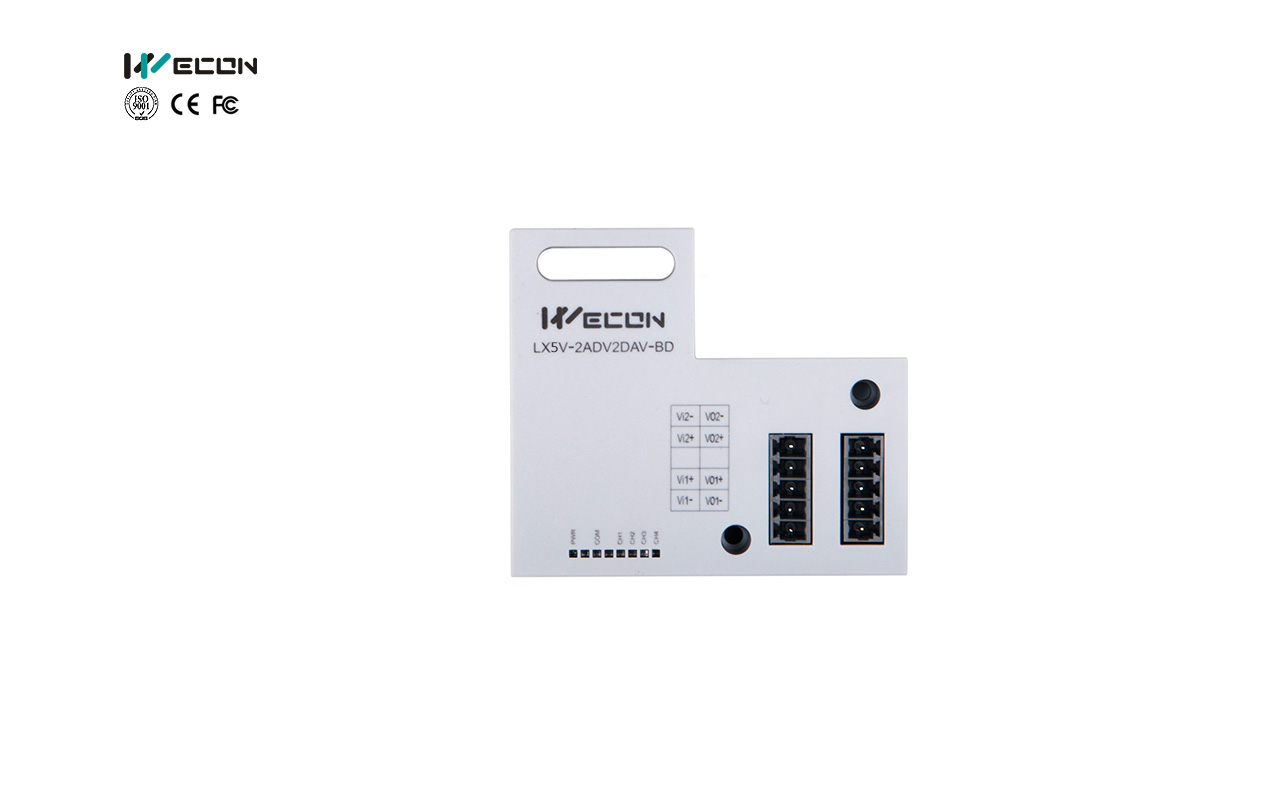

LX5V-2ADV2DAV-BD

4

12 bits

2 * Analog Input/ Output (-10V~10V)

Power supply

24VDC±10%, 50mA; 5VDC±10%, 70mA (The power supply is provided internally by host)

ADI section

ADV section

Analog input range

DC 4mA to 20mA (input resistor 250 Ω) absolute maximum input: -2mA, +30mA

DC -10V to 10V (input resistor 160KΩ). ✎Note: If the input voltage exceeds ±15V, the unit will be damaged.

Rated range

4mA to 20mA: 0to 2000 (recommended)

(-10V to10V: -2000 to 2000)

Maximum display range

-500 to 2048

-2048 to 2048

Resolution

8uA (4mA to 20mA/2000)

5mV (10V default range 1/2000)

Comprehensive precision

±0.5% of full scale (4mA to 20mA: ±0.08 mA) ±0.08 mA ）

±0.5% of full scale

A/D conversion time

One scan cycle (A/D conversion after ladder diagram END instruction is executed, and BD channel mapping value is updated)

Input features

Insulation

There is no insulation between the channels of the module

Points occupied

0 point (2ADI is not affected by the standard maximum control points of the main PLC because it is operated through the data register)

DAI section

DAV section

Rated range

0 to 2000: 4mA to 20mA

DC -10V to 10V (external load resistance ≥ 2KΩ)

Analog output range

DC 4mA to 20mA (external load resistance ≤ 500 Ω)

(-2000 to 2000:-10V to 10V)

Digital output

12-bit binary

Resolution

8uA (4mA to 20mA/2000)

5mV (10V default range 1/2000)

Comprehensive precision

±0.5% of full scale

 (4mA to 20mA: ±0.08 mA)

±0.5% of full scale

D/A conversion time

One scan cycle (D/A conversion after ladder diagram END instruction is executed, and BD channel output value is updated)

Output features

External load is 250Ω. 0 to 2000 was converted to 4mA to 20mA.

Points occupied

0 point (2DAI is not affected by the standard maximum control points of the main PLC because it is operated through the data register)
