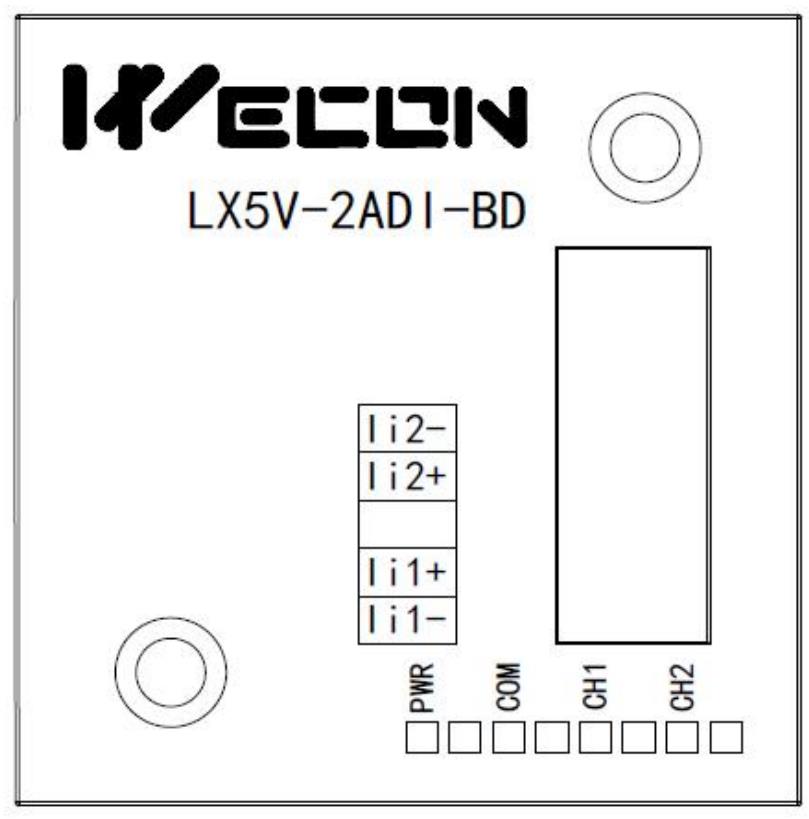

LX5V-2ADI-BD

2

12

2*Analog Current Input (4-20mA)

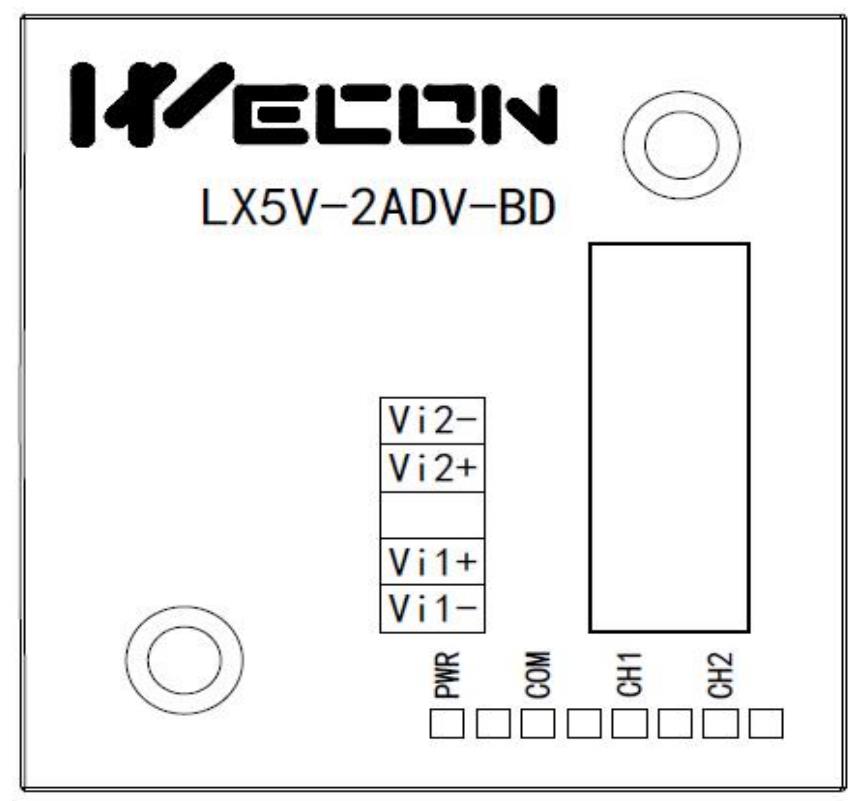

LX5V-2ADV-BD

2

12

2*Analog Voltage Input(-10v-10v)

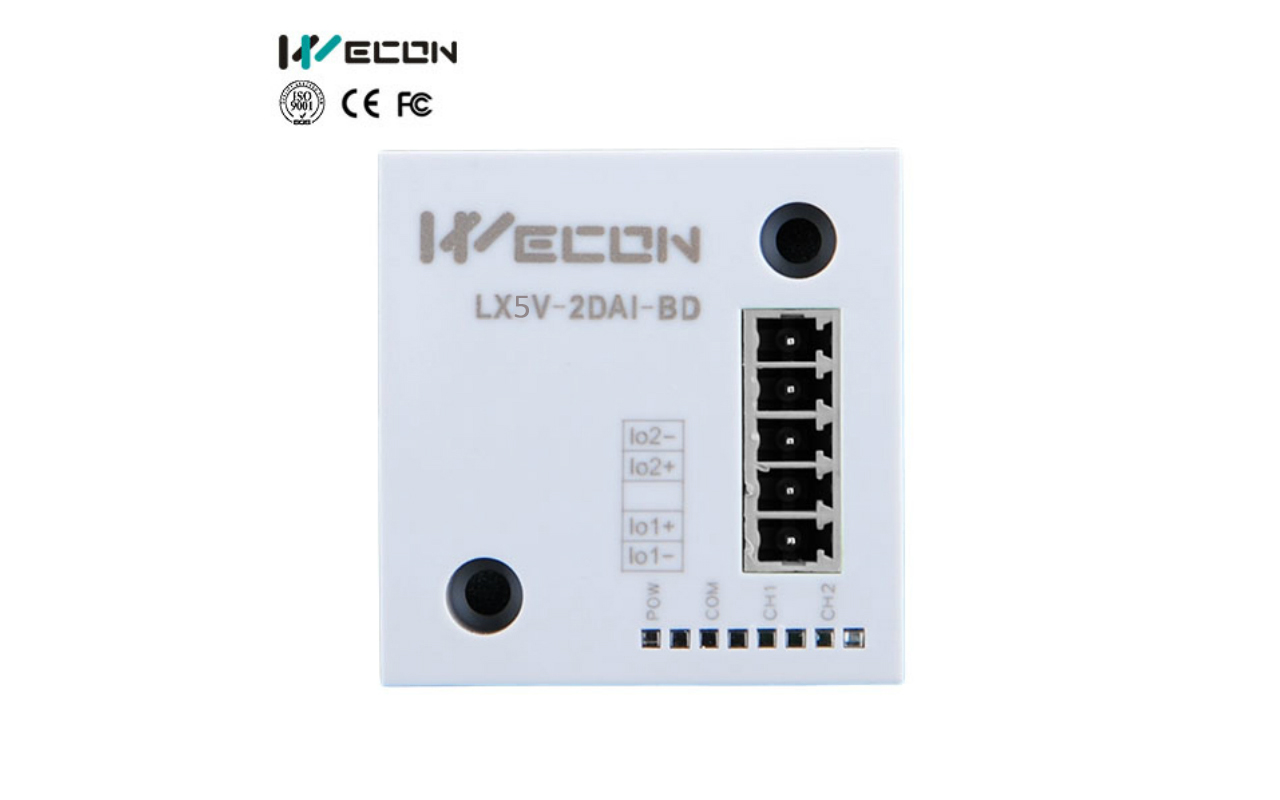

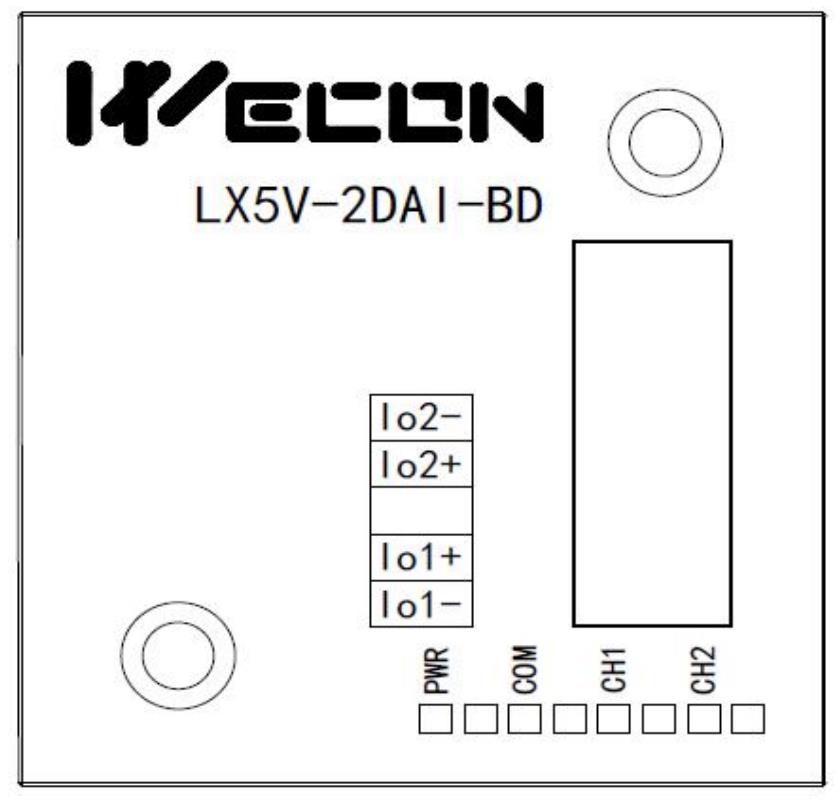

LX5V-2DAI-BD

2

12

2*Analog Current Output (4-20mA)

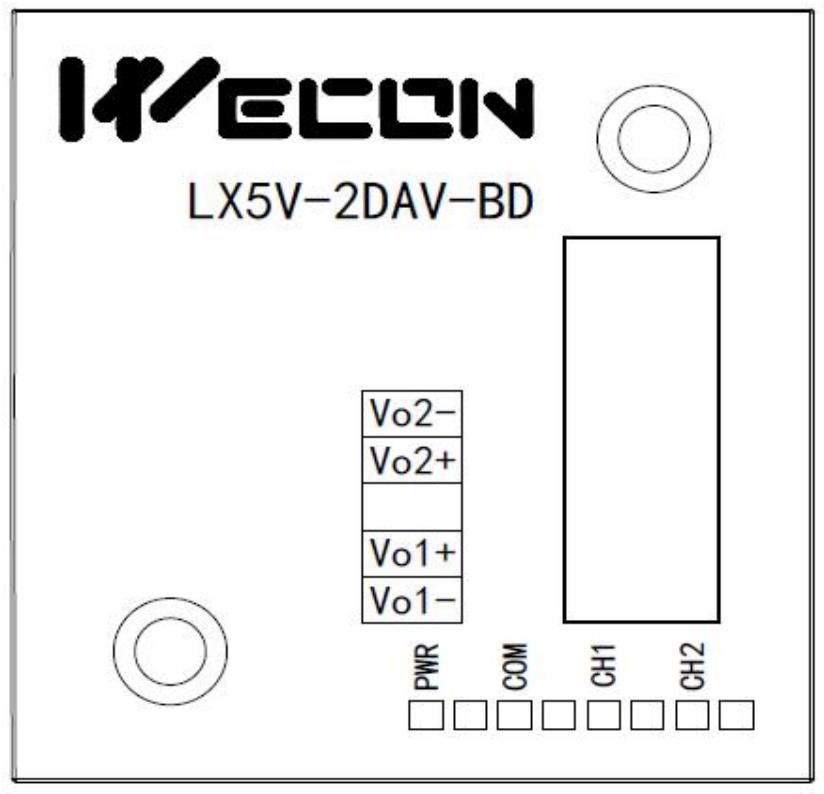

LX5V-2DAV-BD

2

12

2*Analog Voltage Output (-10v-10v)

Current input

Voltage input

Analog input range

DC 4mA to 20mA (input resistor 250Ω) , absolute maximum input: -2mA, +60mA

DC-10V to 10V (input resistor 150KΩ). Note: If the input voltage exceeds ± 15V, it will be damaged.

Digital output

12-bit binary

Resolution

8uA (4mA to 20mA/2000)

5mV [10V default range 1/2000]

Comprehensive precision

±0.5% of full scale (4mA to 20mA: ±0.16 mA)

± 1% of full scale

A/D conversion time

One scan cycle (A/D conversion after ladder diagram END instruction is executed, and BD channel map value is updated)

Input features

Insulation

There is no insulation between the channels of the module

Points occupied

0 point (2ADI is not affected by the standard maximum control points of the main PLC because it is operated through the data register)

Current output

Voltage input

Analog output range

DC 4mA to 20mA (external load resistance ≤ 500 Ω)

DC -10V to 10V (external load resistance ≥ 500Ω)

Digital output

12-bit binary

Resolution

8uA (4mA to 20mA/2000)

5mV [10V default range 1/2000]

Comprehensive precision

±1% of full scale (4mA to 20mA: ±0.16 mA)

± 1% of full scale

D/A conversion time

One scan cycle (D/A conversion after ladder diagram END instruction is executed, and BD channel output value is updated)

Output features

External load is 250Ω. 0 to 2000 was converted to 4mA to 20mA.

Insulation

There is no insulation between the channels of the module

Points occupied

0 point (2DA is not affected by the standard maximum control points of the main PLC because it is operated through the data register)
