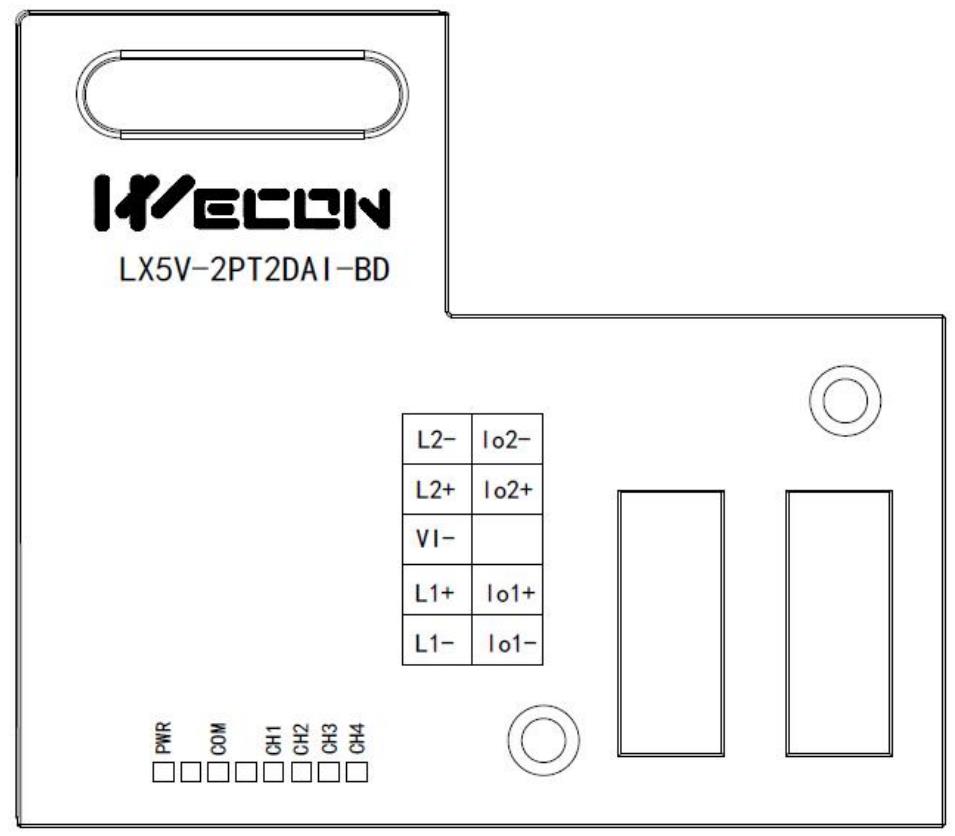

LX5V-2PT2DAI-BD

4

14/12 bits

2 * Thermal Resistance Input；

2 * Analog Output (4~20mA)

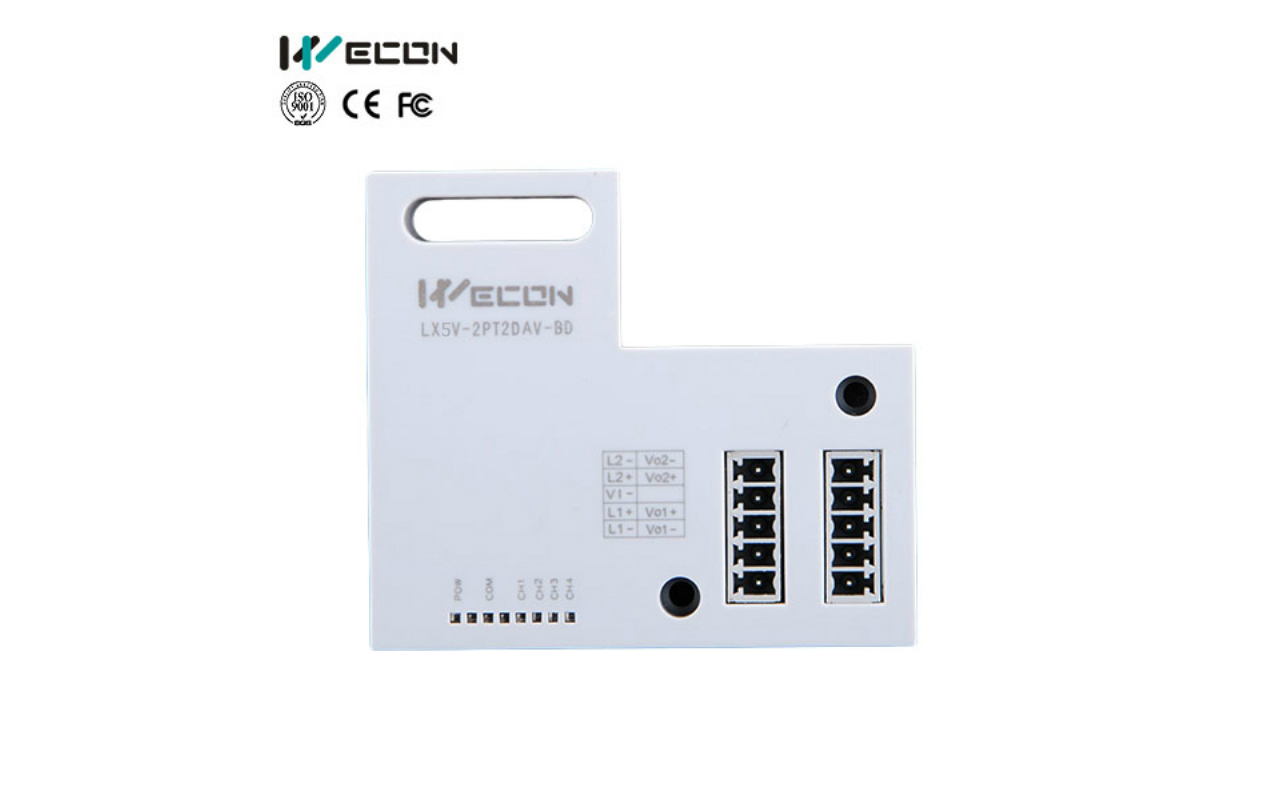

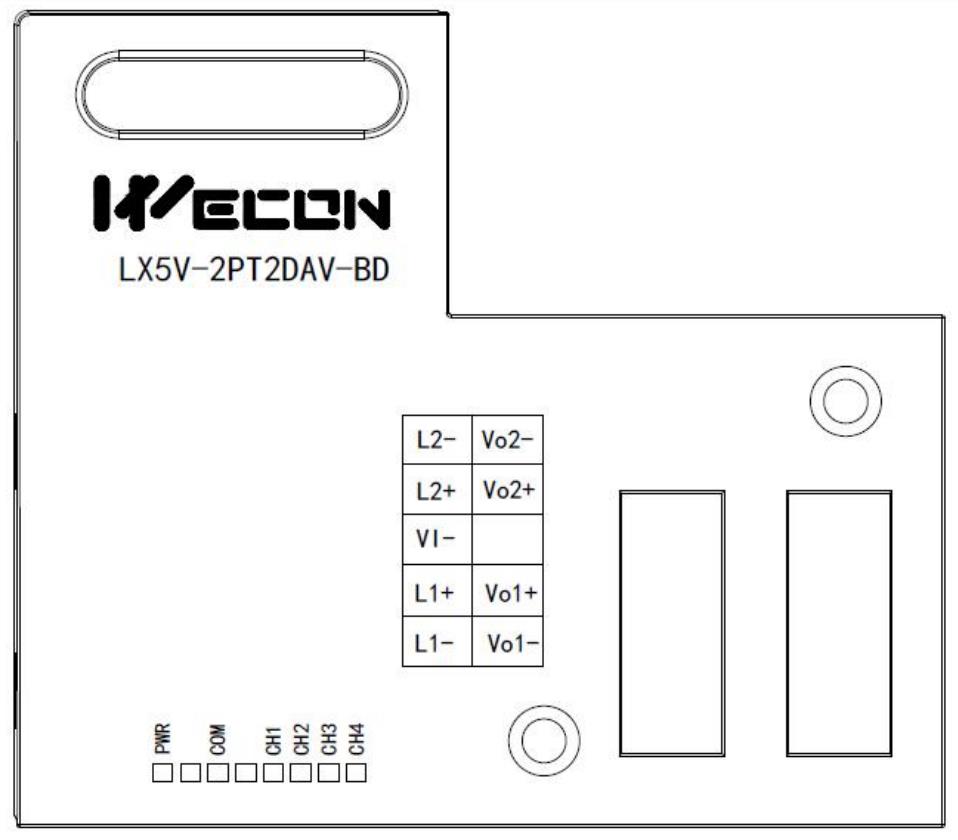

LX5V-2PT2DAV-BD

4

14/12 bits

2 * Thermal Resistance Input；

2 * Analog Voltage Output(-10v-10v)

Power supply

24VDC±10%, 50mA; 5VDC±10%, 70mA (The power supply is provided internally by host)

PT part

Analog input signal

Platinum thermal resistance PT100 sensor (100Ω), 3-wire, 2-channel input (CH1, CH2)

Sensor current

1mA sensor: 100 Ω (PT100)

Compensation range

-100 ℃ to 600 ℃ (recommended range)

Over range display: 32767

Digital output

-1000 to 6000 (unit 0.1 ℃)

Measurement accuracy

0.2℃ to 0.3℃

Total accuracy

Full range ±0.5% (compensation range)

Conversion speed

2 channels 50ms

Conversion features

DAI section

Rated range

0 to 2000: 4mA to 20mA

(-2000 to 2000:-10V to 10V)

Analog output range

DC 4mA to 20mA (external load resistance ≤ 500 Ω)

DC -10V to 10V (external load resistance ≥ 2 K Ω)

Digital output

12-bit binary

Resolution

8uA (4mA to 20mA/2000)

5mV (10V default range 1/2000)

Comprehensive precision

±0.5% of full scale

 (4mA to 20mA: ±0.08 mA)

±0.5% of full scale

D/A conversion time

One scan cycle (D/A conversion after ladder diagram END instruction is executed, and BD channel output value is updated)

Output features

External load is 250Ω. 0 to 2000 was converted to 4mA to 20mA.

Points occupied

0 point (2DAI is not affected by the standard maximum control points of the main PLC because it is operated through the data register)
