4 * Analog Input (4~20mA)
4* Analog Input (-10V~10V)
Model | Channels | Resolution | Functionality |
LX5V-4ADI-BD | 4 | 12 bits | 4 * Analog Input (4~20mA) |
LX5V-4ADV-BD | 4 | 12 bits | 4* Analog Input (-10V~10V) |
Specification

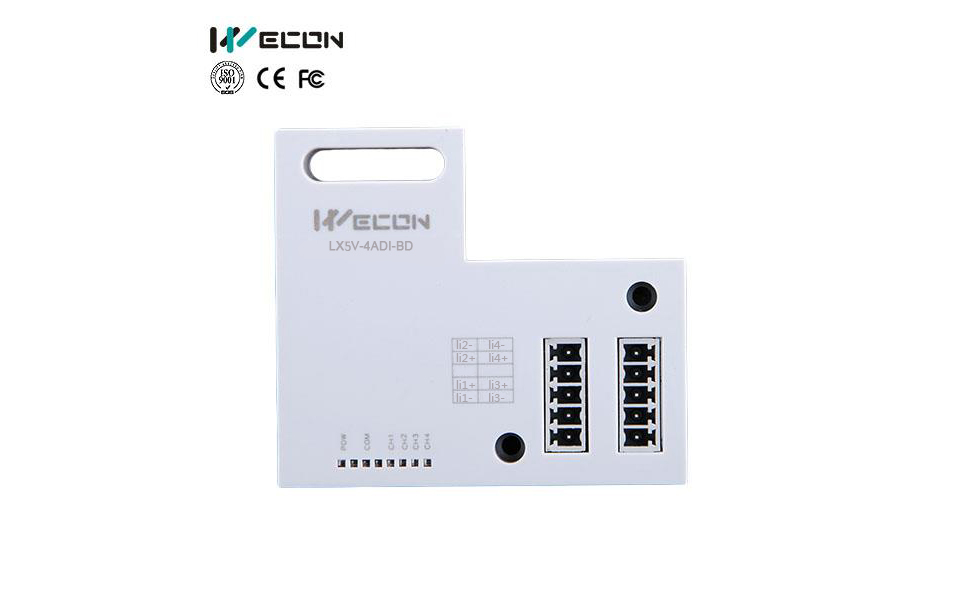

Item | LX5V-4ADI-BD |
Power supply | 5VDC ±10%, 70mA (The power supply is provided internally by host) |
Analog input range | DC 4mA to 20mA (input resistor 250 Ω) absolute maximum input: -2mA, +30mA |
Rated range | 4mA to 20mA: 0to 2000 (recommended) |
Maximum display range | -500 to 2048 |
Resolution | 8uA (4mA to 20mA/2000) |
Comprehensive precision | ±0.5% of full scale (4mA to 20mA: ±0.08 mA) |
A/D conversion time | One scan cycle (A/D conversion after ladder diagram END instruction is executed, and BD channel map value is updated) |
Input features |
|
Insulation | There is no insulation between the channels of the module |
Points occupied | 0 point (4ADI is not affected by the standard maximum control points of the main PLC because it is operated through the data register) |

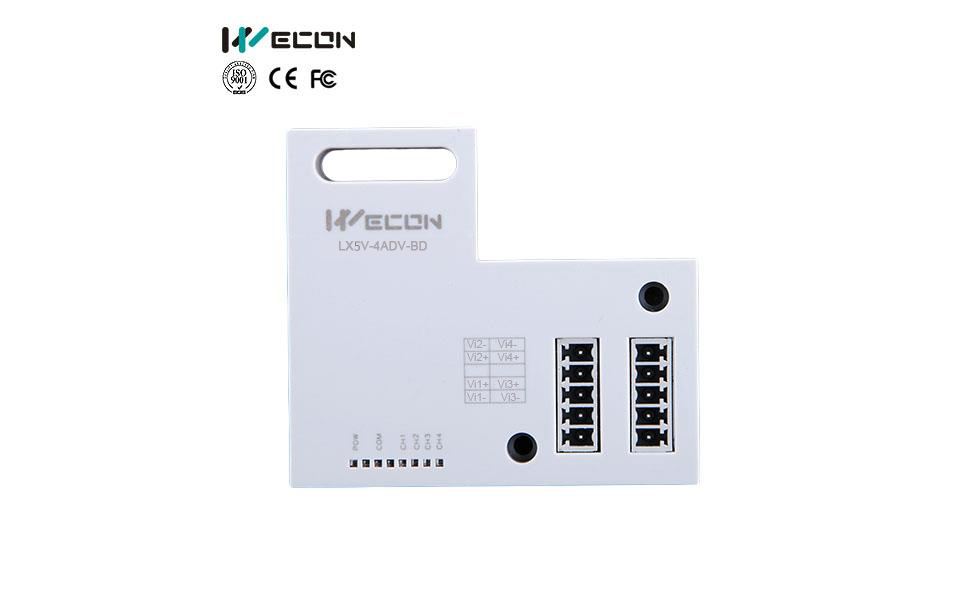

Item | LX5V-4ADV-BD |
Power supply | 5VDC ±10%, 70mA (The power supply is provided internally by host) |
Analog input range | DC -10V to 10V (input resistor 160KΩ). ✎Note: If the input voltage exceeds ±15V, the unit will be damaged. |
Rated range | -10V to 10V: -2000 to 2000 (Recommended) |
Maximum display range | -2048 to 2048 |
Resolution | 5mV (10V default range 1/2000) |
Comprehensive precision | ±0.5% of full scale |
A/D conversion time | One scan cycle (A/D conversion after ladder diagram END instruction is executed, and BD channel mapping value is updated.) |
Input features |
|
Insulation | There is no insulation between the channels of the BD Module. |
Points occupied | 0 point (4ADV is not affected by the standard maximum control points of the main PLC because it is operated through the data register.) |
