High-performance Medium-size Controller
Based on the CODESYS platform
100us communication cycle, flexible installation
Standard Gigabit Ethernet, support multi-protocol interconnection
MC + CNC + Robotics, meet various motion control needs
Standard instructions, motion control instructions, multi-language, modular

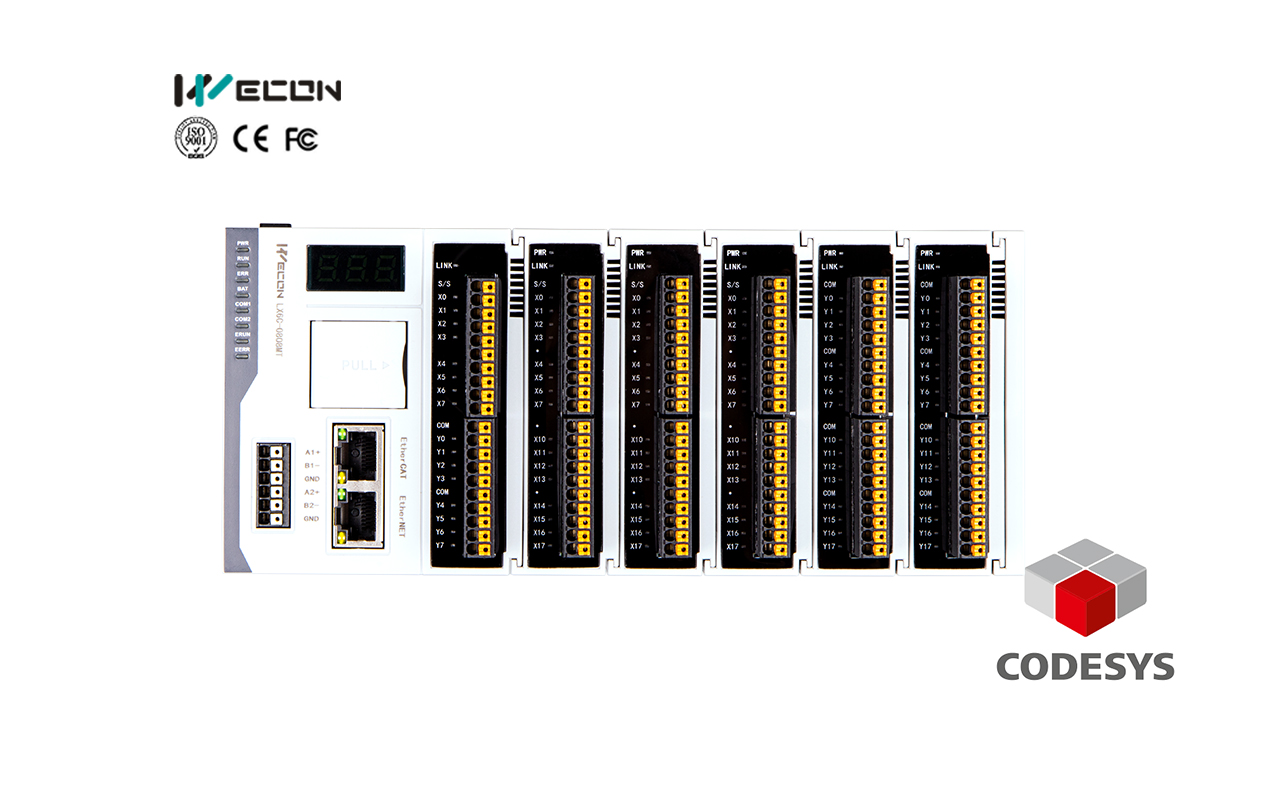

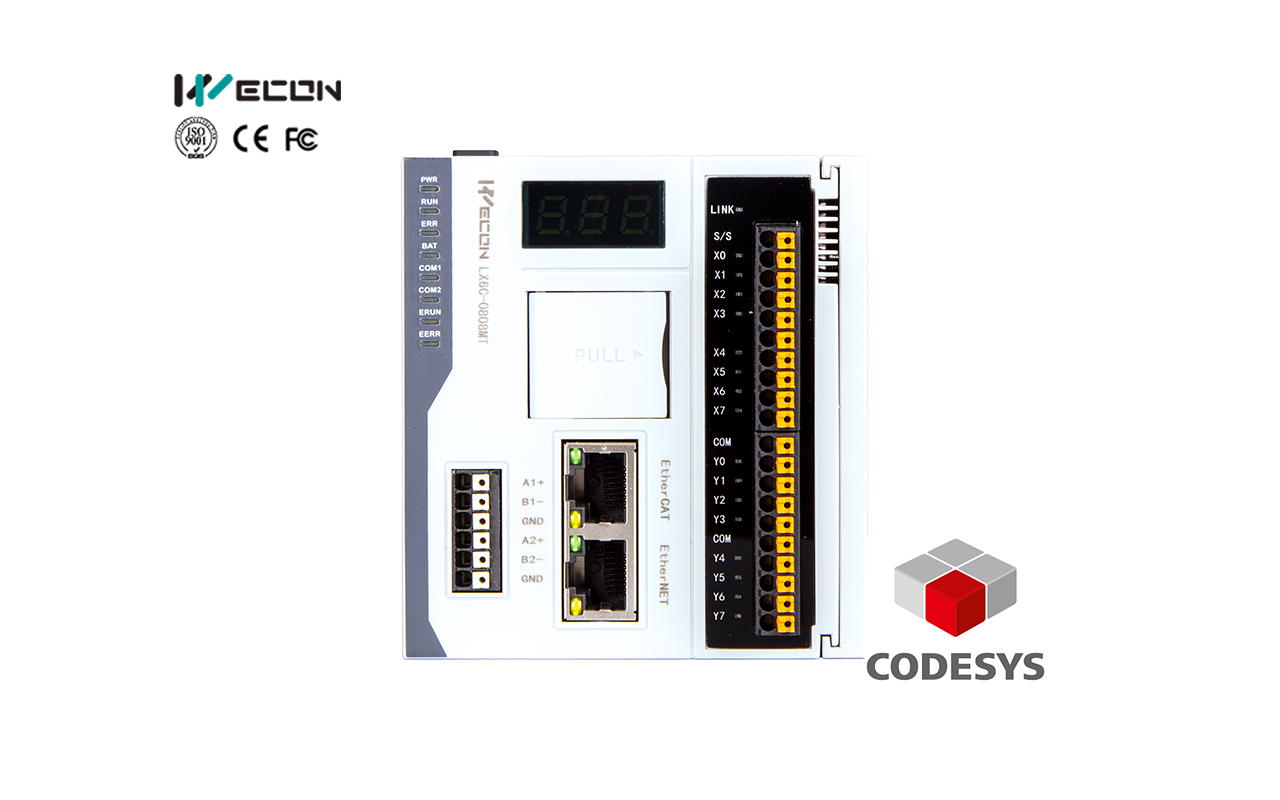

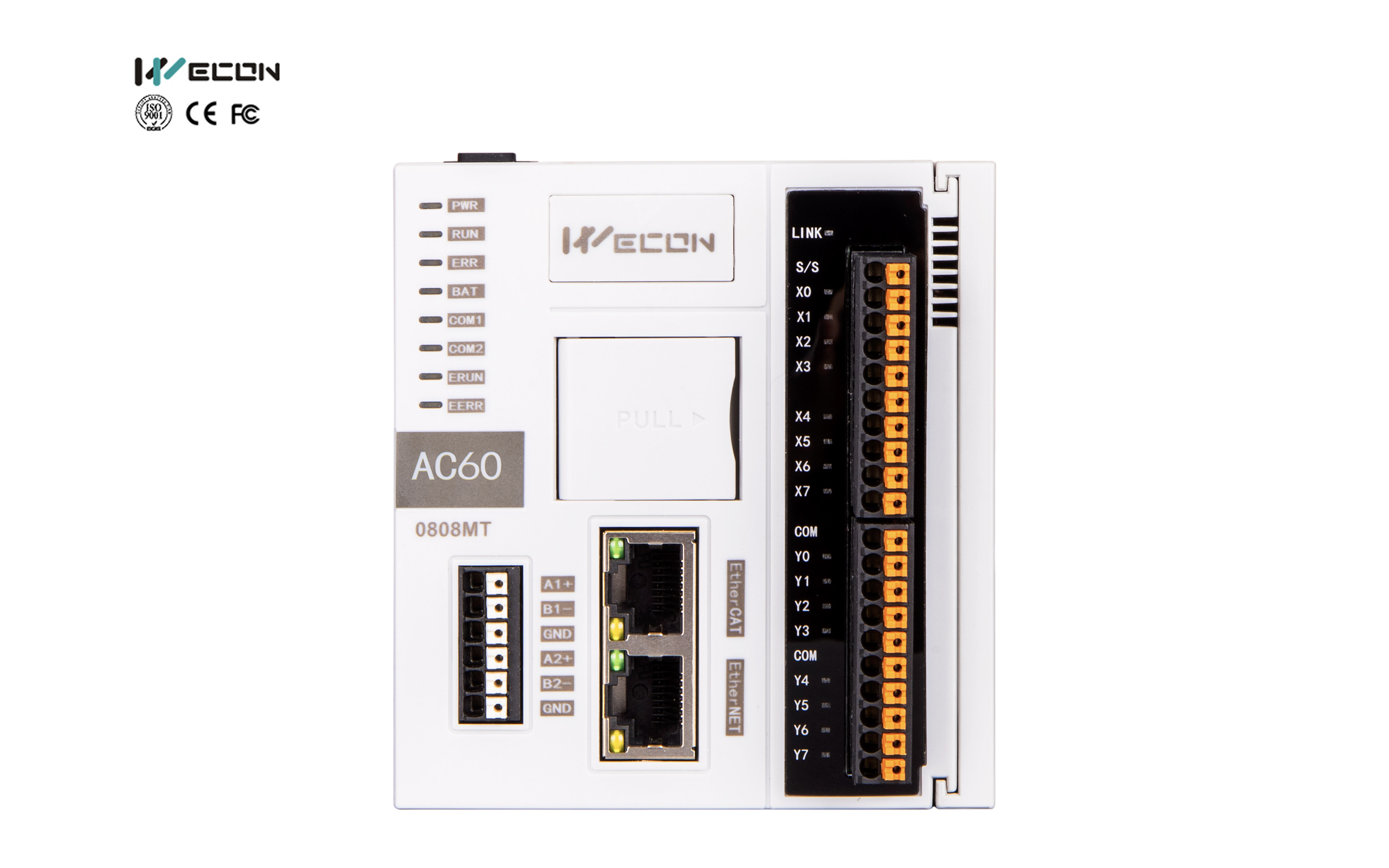

LX6C Series PLC is high-performance medium-size controller, Based on the CODESYS platform.CODESYS allows for flexible programming and customization, enabling users to create and tailor their PLC code according to their specific needs.
Embedded I/Os reducing panel space costs.
Free, manufacturer-independent CODESYS programming environment.
It can be debugged remotely through the cloud platform V-Box / ig, V-IEC System.
Online editing, offline simulation, both are available on LX6C.
Higher Performance

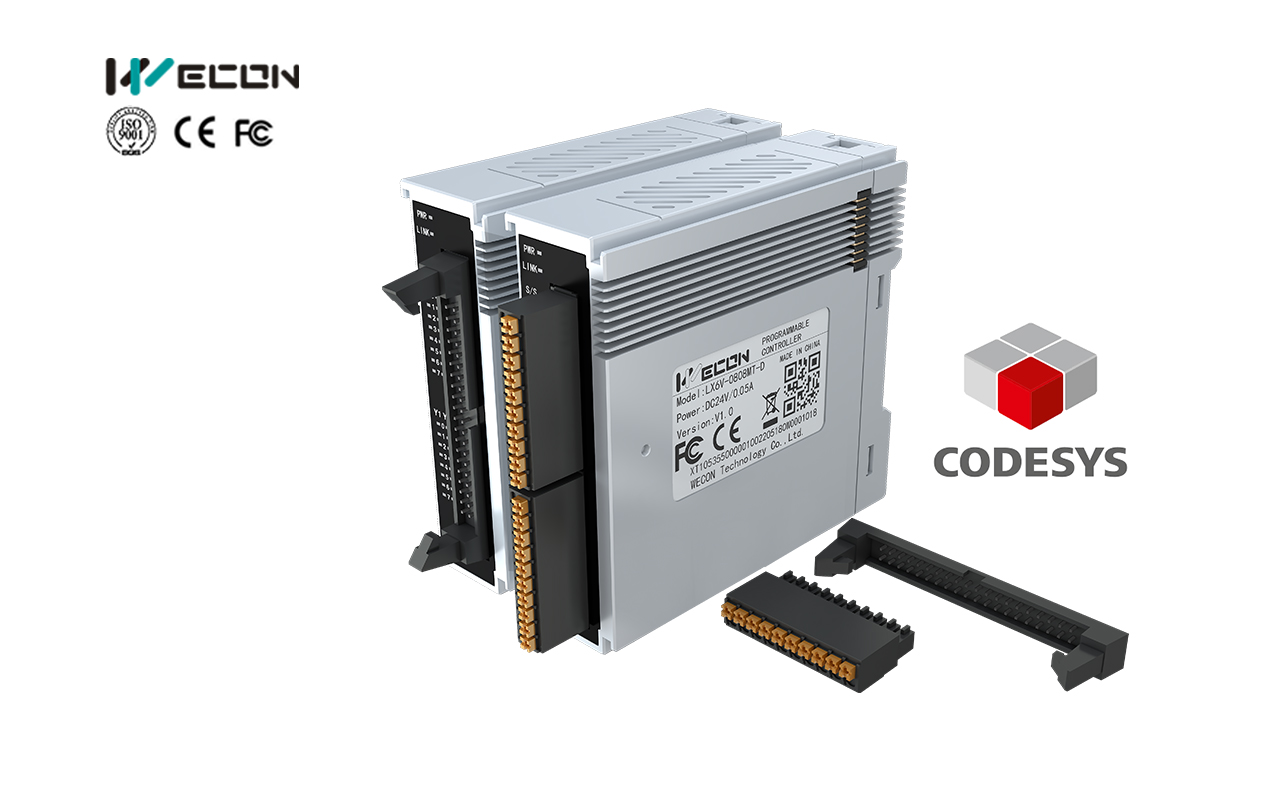

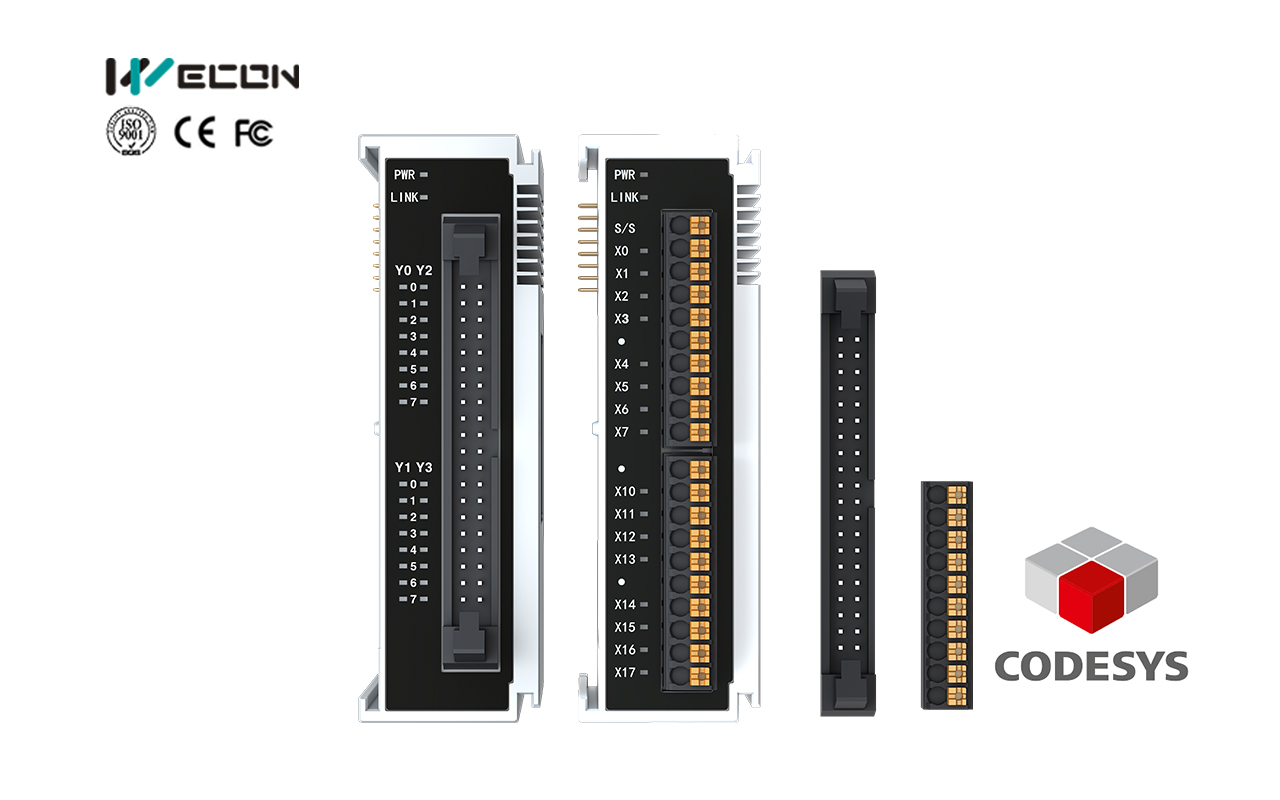

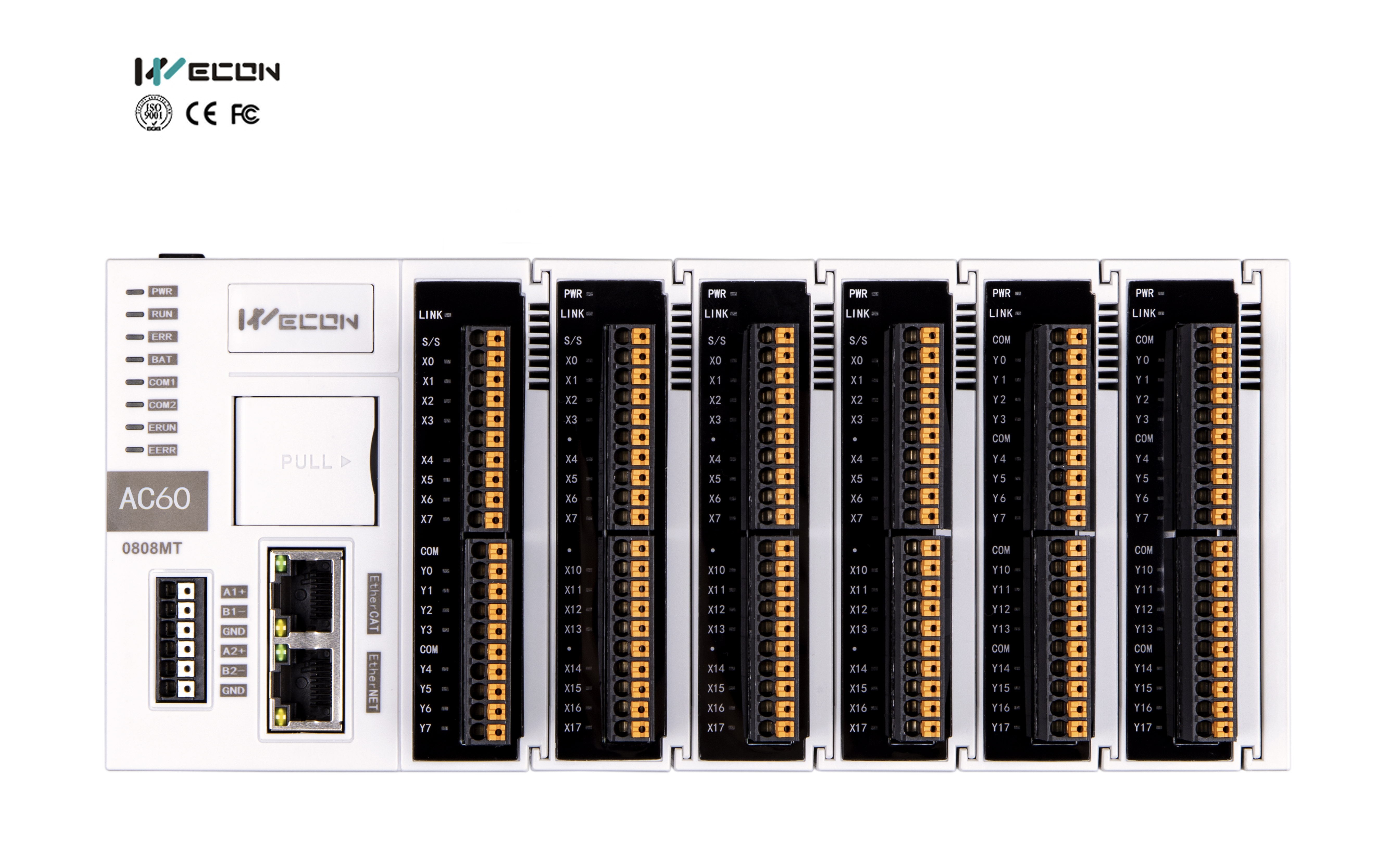

More Expansion Modules
Mutil-Port
Wider EtherCAT Applications
LX6C Series PLC has a newly added EtherCAT port and supports RS485 custom protocol ad Modbus-RTU protocal,widely used in packing machinery, textile machinery, grinding machines, industiral robots, high-rise elevators and other fields.
Codesys Programming
LX6C Model | I/O | Output Type | RS485 | Module | Power Supply | EtherCAT Axis | EtherNet/IP | MC | OPC UA Server | CNC | ROBOTIC | Webvisu |
LX6C-0808MT-DB | 08/08 | Transistor | 2 | YES | DC | 32 | YES | YES | N/A | YES | YES | N/A |
LX6C-0808MT-DC | 08/08 | Transistor | 2 | YES | DC | 64 | YES | YES | N/A | YES | YES | YES |
LX6C-0808MT-DD | 08/08 | Transistor | 2 | YES | DC | 128 | YES | YES | YES | YES | YES | YES |

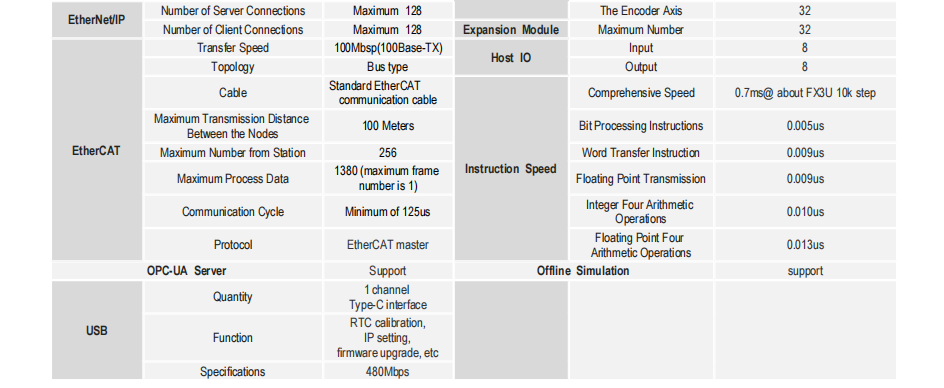

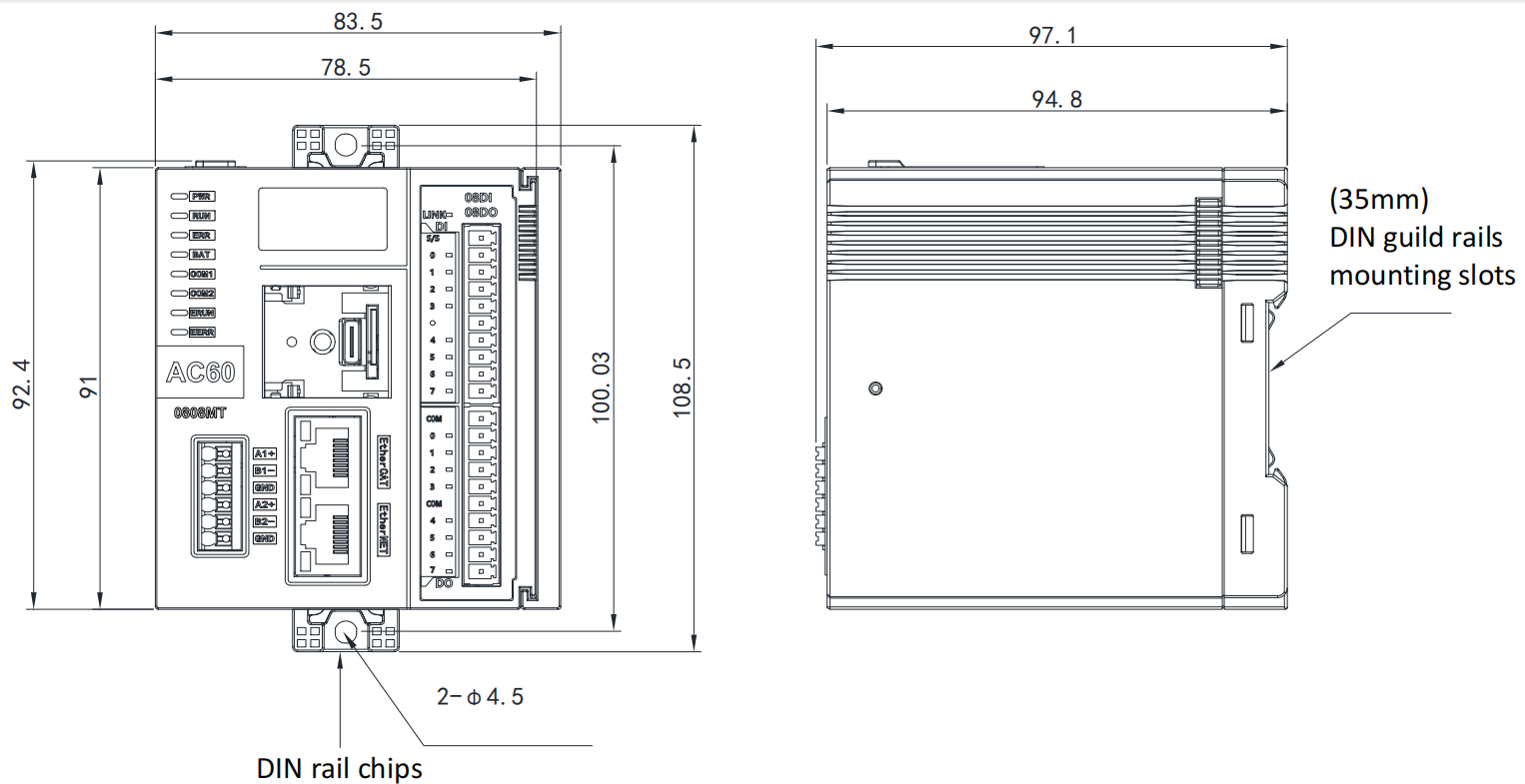

GENERAL
Model | LX6C-0808MT | |
Program Space | Program Capacity | 5MB |
Variable Capacity | 10MB | |
I Area (%I) | 128KB | |
Q Area (%Q) | 128KB | |
M Area (%M) | 512KB | |
Power-down Latch Area | 1MB | |
Programming Language | LD / IL/ FBD / CFC / SFC / ST | |
EtherNet | Function | Communication, debugging, uploading and downloading programs, firmware upgrade, etc. |
Data Transmission Speed | 1000Mbps / 100Mbps / 10Mbps | |
Total TCP Connections | Maximum 128 | |
Modbus TCP | Maximum 128 | |
Socket | Maximum 128 | |
Cable | Standard industrial Ethernet communication | |
EtherNet/IP | Server | Maximum connections: 128 |
Client | Maximum connections: 128 | |
EtherCAT | Transmission Speed | 100Mbsp(100Base-TX) |
Topology | Bus type | |
Cable | Standard EtherCAT communication cable | |
Maximum Transmission Distance Between the Nodes | 100 meters | |
Maximum Number from Stations | 256 | |
Maximum Process Data | 1380(maximum frame number is 1) | |
Communication Cycle | Minimum of 125μs It lasts for 1 minute. | |
Support Protocol | EtherCAT master | |
USB | Quantity | 1 channel TYPE-C interface |
Function | RTC calibration, IP setting, firmware upgrade, etc. | |
Specifications | USB 2.0 | |
RS485 | Quantity | 2 |
Baud Rate (bps) | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 | |
Maximum communication distance | 500m (9600 baud rate) | |
Communication Mode | Half duplex | |
Support Protocol | Modbus master/slave (RTU/ASCII), free communication protocol | |
Topology | Bus type | |
Maximum Number of Slaves | 31 | |
TF card | Support | |
Power supply | DC24V (±10%) | |
Motion Control | Support Version | PLC OPEN Motion Control 2.0 |
G-code Capacity | 32M | |
Robotic (Axis Group) | Built-in 25 kinematic models, Maximum 8 axis groups (Maximum 6 axis interpolation per axis group) | |
Expansion Module | Maximum Number | 32 |
Host IO | Input | 8 |
Output | 8 | |
