CPU A35 1.2GHz, 4G Flash, 512MB DDRAM.
Display:15 inches; Resolution: 1920*1080; Display color: 260k colors.
Interface: a physical serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485.
2 Ethernet Ports
USB interfaces: USB Host/USB Client.
remote monitoring and serial port download supported.

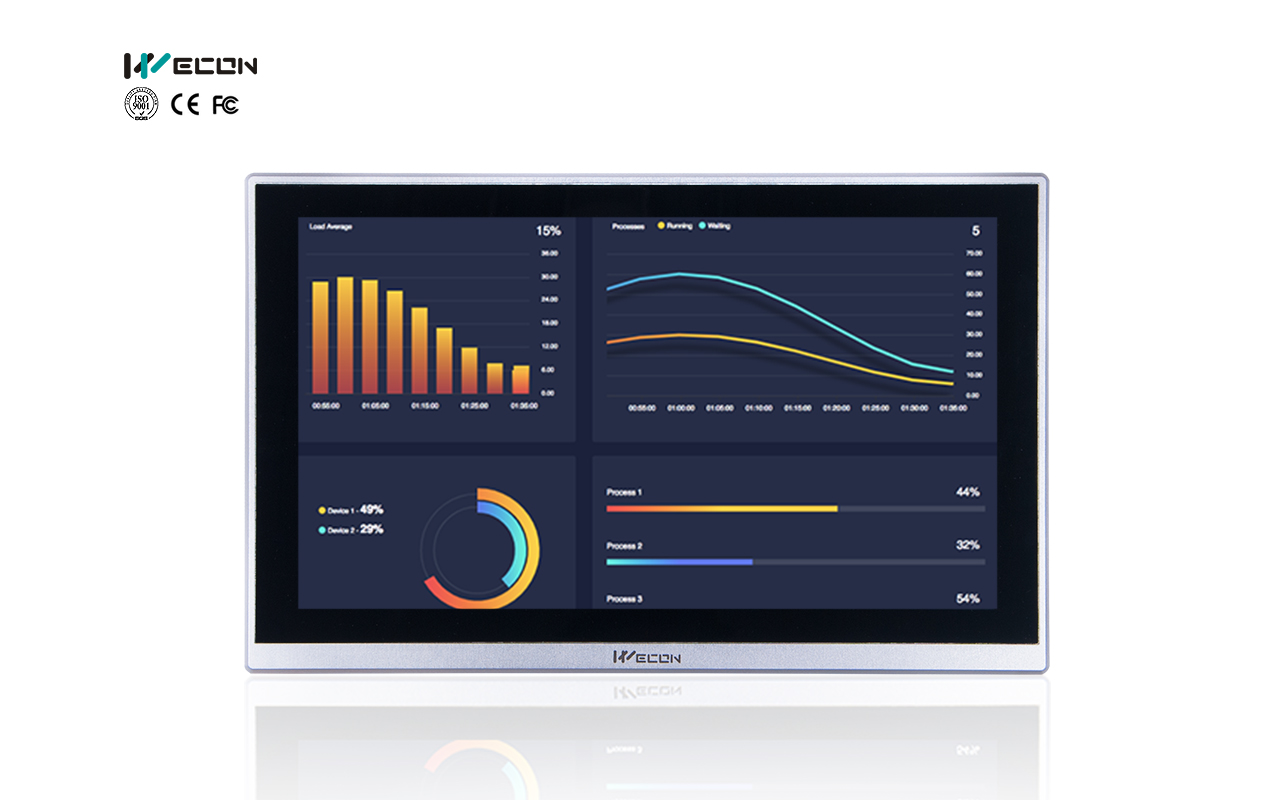

For the rapid construction of smart factories, a two-way connection between HMI and IIoT both way, a better IoT operation experience to users, Wecon launched a brand new product, PI8150ig IoT HMI.
Complete IoT Functions
MQTT cloud protocol and database server connection supported
More powerful IoT functions
PI8150ig+IoT SIM card+Networking operation
Remote monitoring from home easily
PI8150ig Remote Function
Equipment debugging could be performed without going to the site in the midst of the pandemic.
4-core CPU
With Cortex A35 1.2GHz high performance processor, PI8150ig has powerful operation processing capability to control difficult and complex tasks.
Big Screen
More comfortable and convenient operation
HD displays every frame in detail

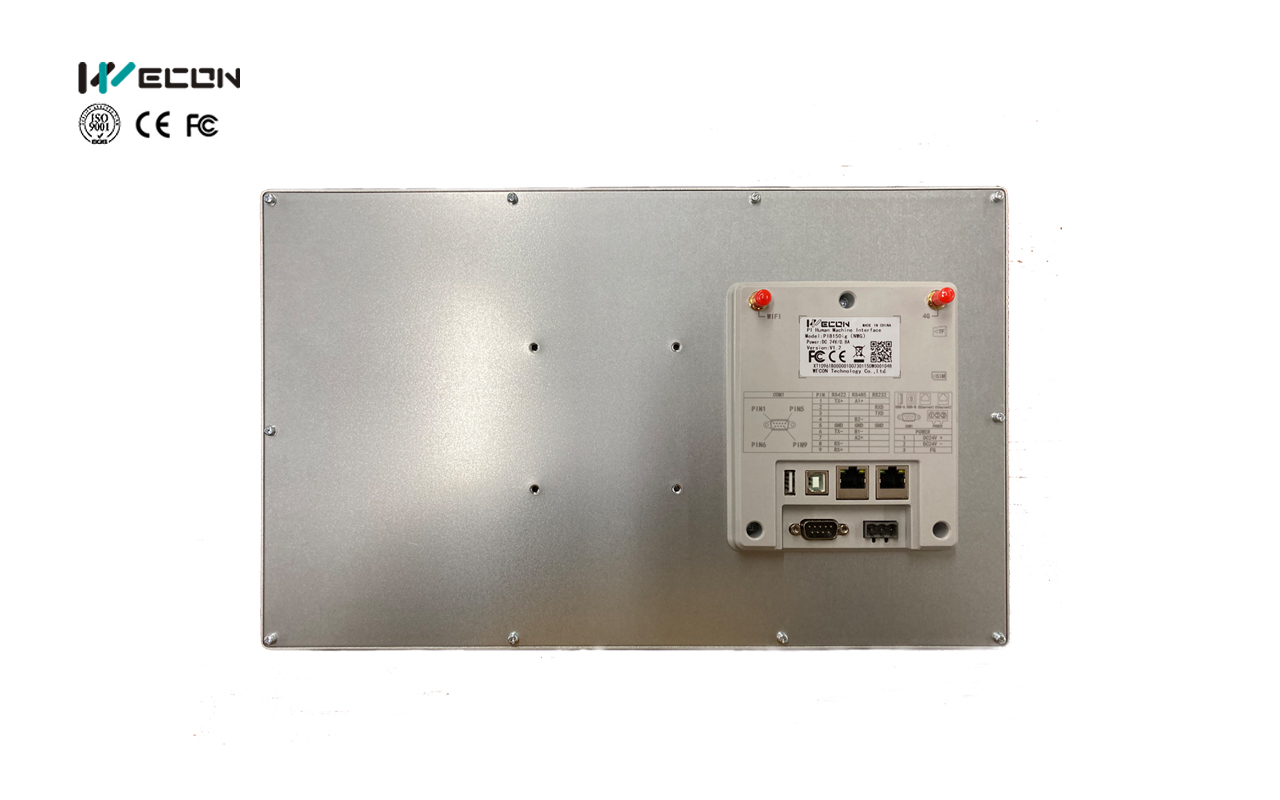

Same metal body design as PI9150, PI8150ig is new IoT HMI with aluminium alloy panel, Ultra-thin design, strong anti-interference, excellent heat dissipation, anti-corrosion, and high temperature resistance.
Model | V-Net Functions | Open Cloud Mode | MQTT | Lua Script | LAN Monitoring | 4G / WIFI | |||||||
Realtime Data | Alarm Data | History Data | APP & Remote Control | Remote Update HMI | WVPN | Cloud SCADA | Pass-through | ||||||
| PI8150ig(NWG) | 300 | 200 | 100 | P | P | P | P | Serial | P | P | P | P | Both |
Main | OS | Linux 4.4.0 QT based |
Processor | Cortex A35 1.2GHz | |
Display | Size | 15" |
Screen | TFT | |
Resolution | 1920*1080 | |
Color | 260k colors | |
Brightness (cd/m2) | 220 | |
Backlight | LED | |
Backlight Lifetime | 50,000 hours | |
Touch Panel | High precision four-wire resistive | |
Storage | Memory | 512 MB |
Flash | 4G | |
SD Card Slot | YES | |
USB Port | USB2.0 Host + USB2.0 Client | |
RTC | Real-time clock | Yes |
Calendar | Yes | |
I/O Port | COM1 | CN1:RS422/RS485 |
COM2 | -- | |
COM3 | -- | |
Ethernet | x2 | |
CANopen | -- | |
Power | Rated Power | < 15W |
Power Voltage | DC 24V | |
Input range | DC 12 ~ 28V | |
Shell Color | Silvery | |
Enclosure | Shell Material | Aluminum + Metal + ABS |
Overall Size (mm) | 403.0W*253.0H*35.2D | |
Mounting Size (mm) | 394.0W*244.0H | |
Mounting Method | Panel Mount | |
Weight (Kg) | 2.46 | |
Environment | Working Temperature | 0 ~ 50°C |
Storage Temperature | -20 ~ 60°C | |
Humidity | 10 ~ 90％RH (Non-condensing) | |
Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
Cooling | Air Cooling | |
Software | Programming | PI Studio |
Remote Access | YES | |
Email Alarm | YES | |
IP Camera | -- | |
Audio Output | -- | |
Video Player | -- | |
Data Tool | Yes | |
Certificates | IP Code | IP65 (Front panel) |
CE | CE Marked | |
FCC | FCC Class A |
