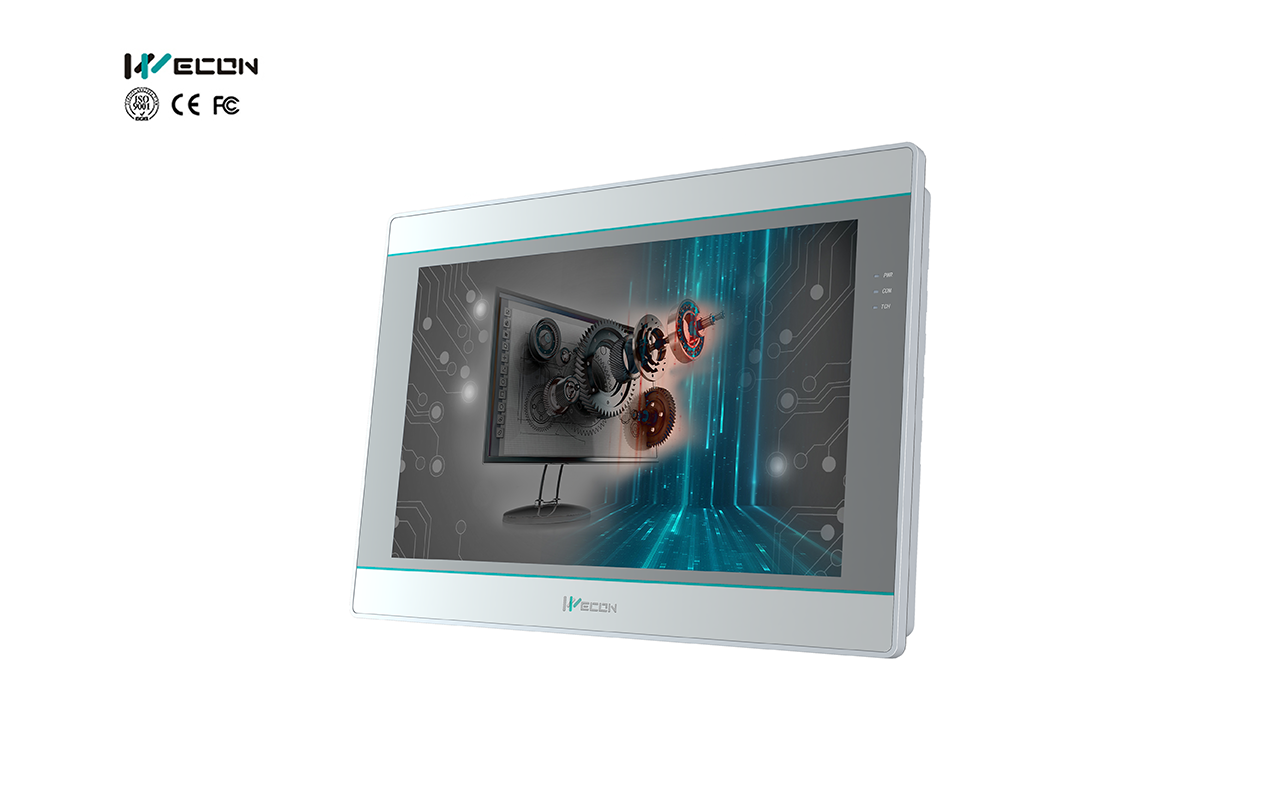

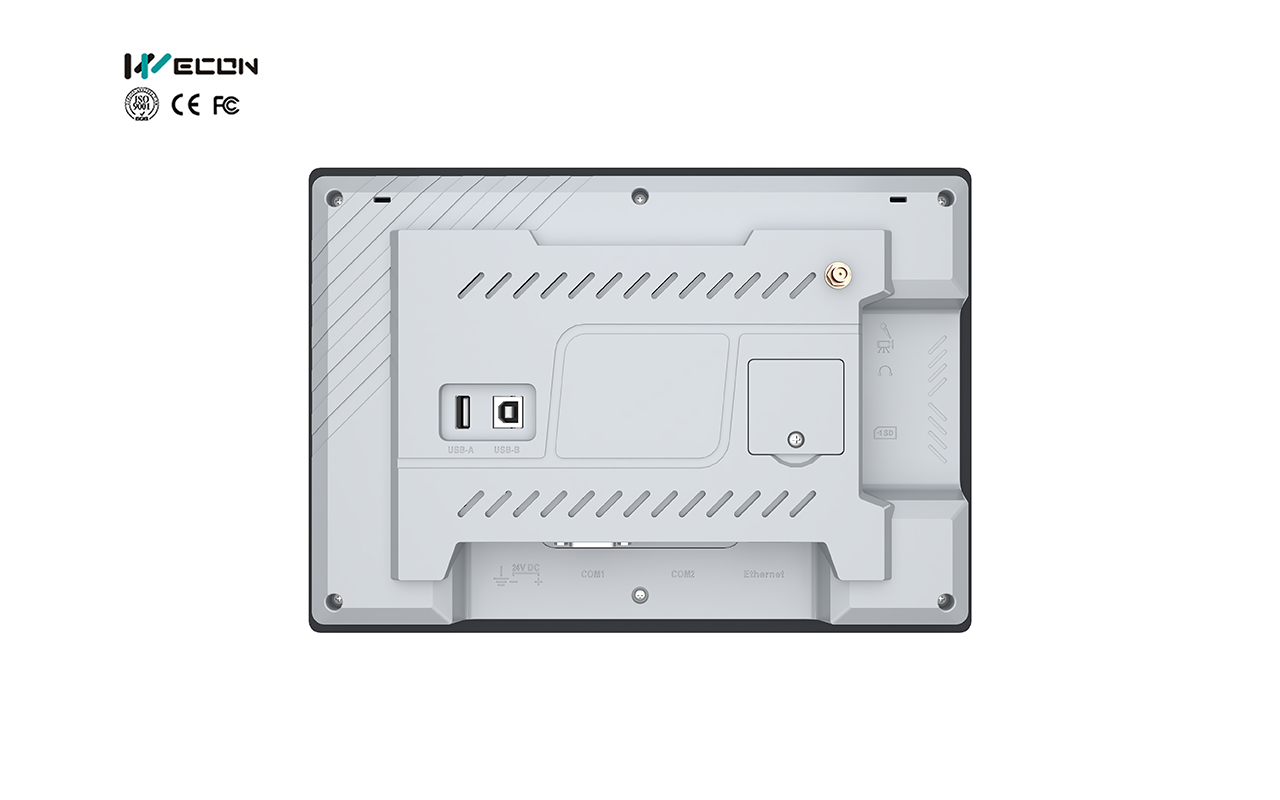

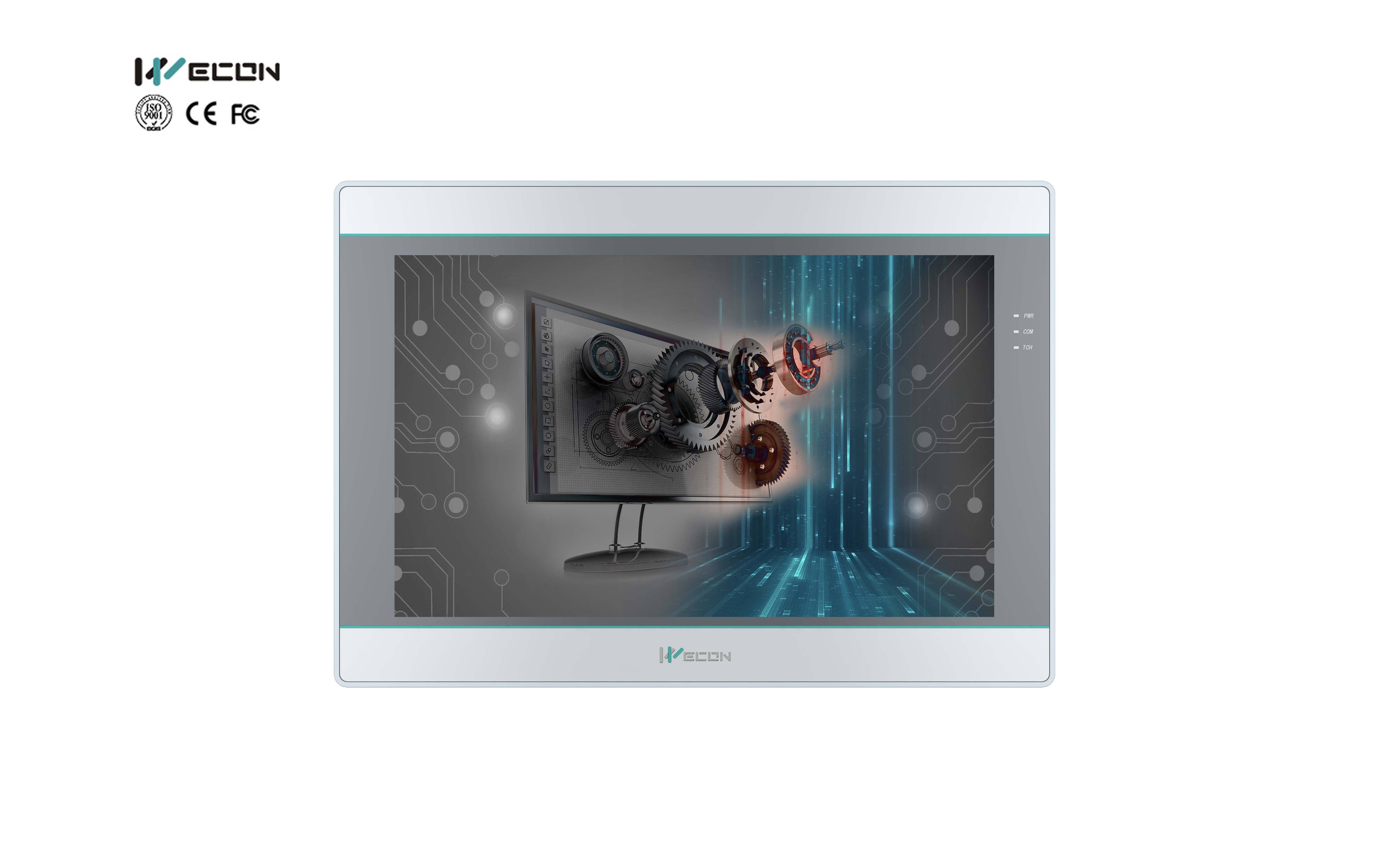

PI3102ig HMI

uCPU A35 1.2GHz, 128M Flash, 128M DDRAM

uDisplay:10.2 inches; Resolution: 1024*600; Display color: 16,000k colors

uInterface: a physical serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485.

uUSB interfaces: USB Host/USB Client

uremote monitoring and serial port download supported

u3102ig-C supports related functions of V+NET, Ethernet pass-through download and sync data to cloud..


Software&manual Inquiry
Introduction
Specification
Physical & Electrical

IoT HMI-PI3000ig.jpg



Model

V-Net Functions

Open Cloud Mode

MQTT

Lua Script

LAN Monitoring

4G / WIFI

Realtime Data

Alarm Data

History Data

APP & Remote Control

Remote Update HMI

WVPN

Cloud SCADA

 Pass-through

PI3102ig

X

X

X

P

P

P

X

Serial

P

P

P

P

X

PI3102ig (G)

X

X

X

P

P

P

X

Serial

P

P

P

P

4G

PI3102ig (AG)

X

X

X

P

P

P

X

Serial

P

P

P

P

4G(global)

PI3102ig (W)

X

X

X

P

P

P

X

Serial

P

P

P

P

WIFI

PI3102ig-C

100

20

50

P

P

P

P

Serial

P

P

P

P

X

PI3102ig-C(G)

100

20

50

P

P

P

P

Serial

P

P

P

P

4G

PI3102ig-C(AG)

100

20

50

P

P

P

P

Serial

P

P

P

P

4G(global)

PI3102ig-C(W)

100

20

50



P



P



P



P

Serial



P



P



P



P

WIFI

PI3102ig-O

X

X

X

X

X

X

X

X

X

X



P



P

X



Main

OS

Linux 4.4.0 QT based

Processor

Cortex A35 1.2GHz

Display

Size

10.2"

Screen

TFT

Resolution

1024*600

Color

16,000k colors

Brightness (cd/m2)

350

Backlight

LED

Backlight Lifetime

50,000 hours

Touch Panel

High precision four-wire resistive

Storage

    Memory

128 MB

Flash

128 MB

SD Card Slot

YES

USB Port

USB2.0 Host + USB2.0 Client

RTC

Real-time clock

Yes

Calendar

Yes

I/O Port

COM1

CN1:RS422/RS485
CN2:RS232
CN3:RS485

COM2

--

COM3

--

Ethernet

x1

CANopen

 --

Power

Rated Power

< 15W

Power Voltage

DC 24V

Input range

DC 12 ~ 28V

Shell Color

Grey

Enclosure

Shell Material

PC+ABS

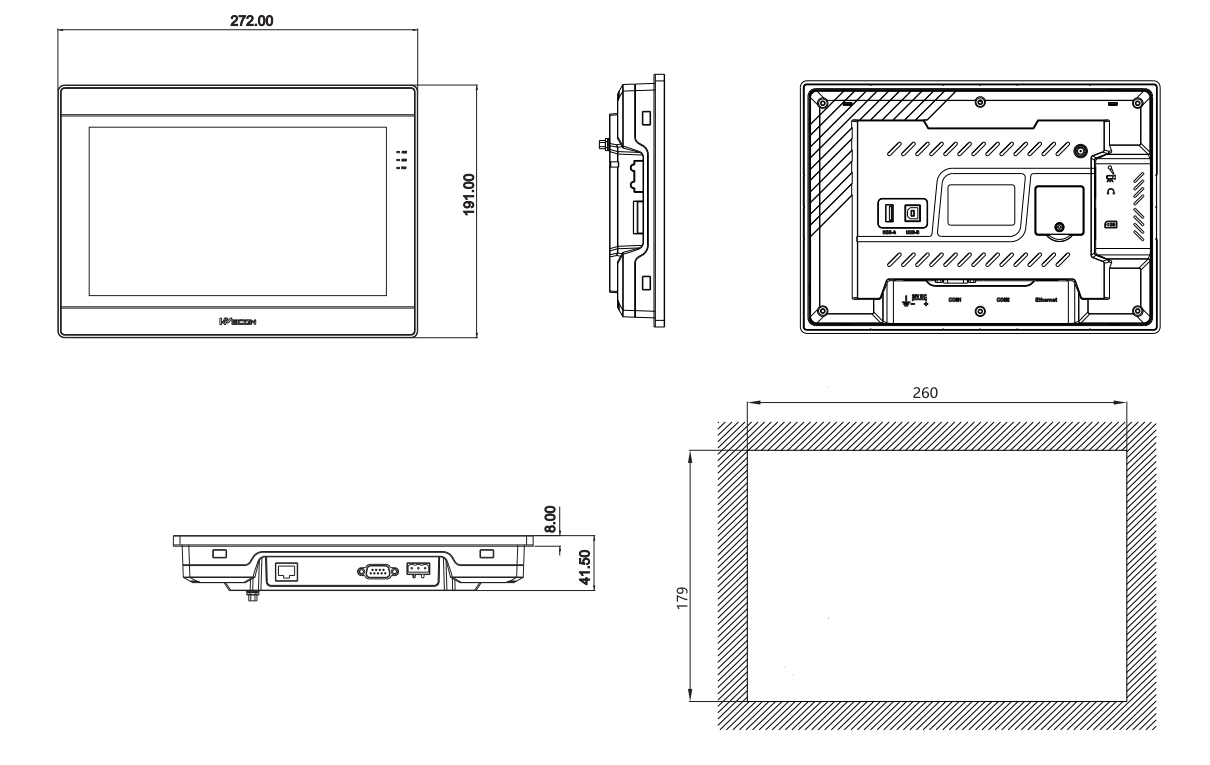

Overall Size (mm)

272.0W*191.0H*41.5D

Mounting Size (mm)

260.0W*179.0H

Mounting Method

Panel Mount

Weight (Kg)

1.02

Environment

Working Temperature

-10 ~ 55°C

Storage Temperature

-30 ~ 70°C

Humidity

10 ~ 90RH (Non-condensing)

Vibration Resistance

10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)

Cooling

Air Cooling

Software

Programming

PIStudio

Remote Access

YES

Email Alarm

YES

IP Camera

 --

Audio Output

 --

Video Player

 --

Data Tool

Yes

Certificates

IP Code

IP65 (Front panel)

CE

CE Marked

FCC

FCC Class A
