PI3035ie HMI

Wecon PI 3.5 inch Small HMI: PI3035ie

◇Hardware: Cortex A35 1.2GHz, 128M FLASH+ DDRII 64MB
◇Display size: 3.5 inch
◇Resolution: 320×240 TFT LCD, 16,000K colors
◇Interface: RS232, RS422 / RS485 (2 in 1)


Software&manual Inquiry
Specification
Physical & Electrical
SeriesPI3000ie
ModelPI3035ie
MainOSLinux 4.4.0 QT based
ProcessorCortex A35  1.2GHz
DisplaySize3.5"
ScreenTFT
Resolution320*240
Color16,000k colors
Brightness (cd/m2)300
BacklightLED
Backlight Lifetime50,000 hours
Touch PanelHigh precision four-wire resistive
Storage    Memory64 MB
Flash128 MB
SD Card Slot --
USB PortMicro USB
RTCReal-time clockYes
CalendarYes

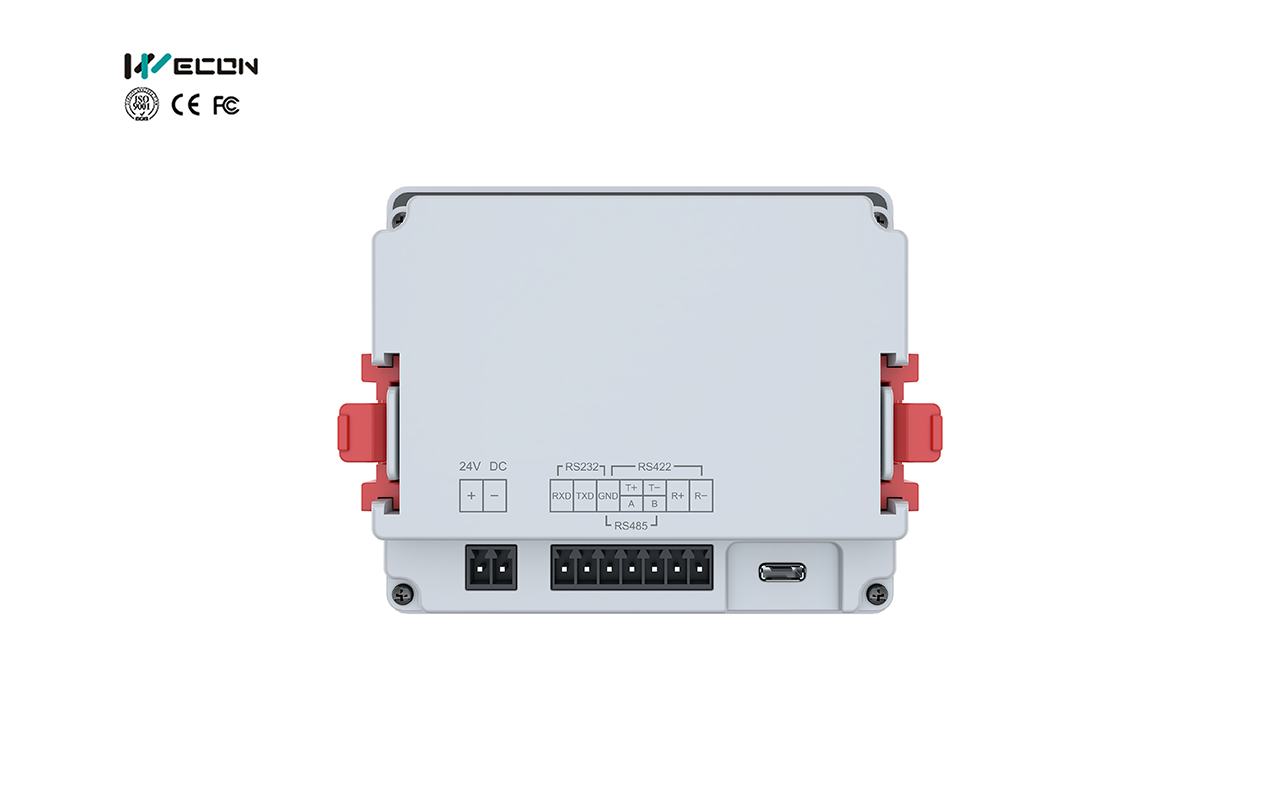

I/O PortCOM1CN1:RS422/RS485
CN2: RS232
COM2--
COM3--
Ethernet --
CANopen --
Wi-Fi --
4G LTE --
PowerRated Power< 5W
Power VoltageDC 24V
Input rangeDC 12 ~ 28V
Shell ColorGrey
EnclosureShell MaterialPC+ABS

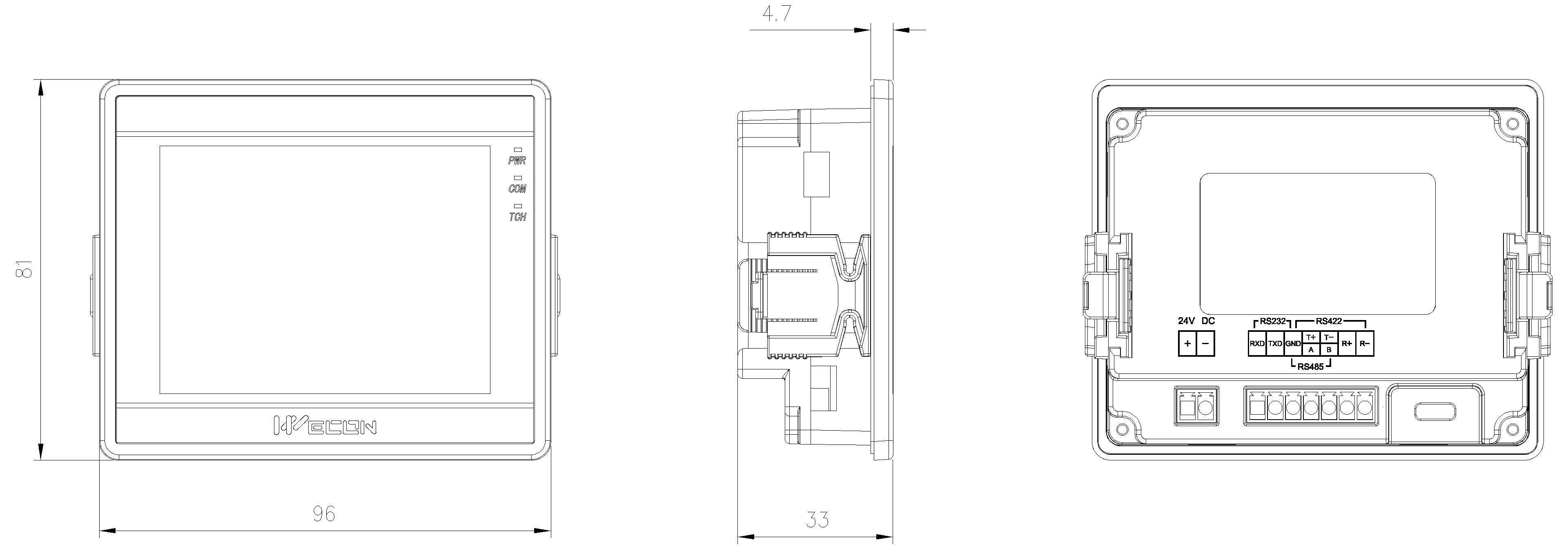

Overall Size (mm)96.0W*81.0W*33.0D
Mounting Size (mm)91.0W*73.0D
Mounting MethodPanel Mount
Weight (Kg)0.14
EnvironmentWorking Temperature-10 ~ 55°C
Storage Temperature-20 ~ 70°C
Humidity10 ~ 90%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir Cooling
SoftwareProgrammingPIStudio
Remote Access --
Email Alarm --
IP Camera --
Audio Output --
Video Player --
Data ToolYes
CertificatesIP CodeIP65 (Front panel)
CECE Marked
FCCFCC Class A
UL --
