2 * Thermal Resistance Input；
2 * Analog Output (4~20mA)
2 * Thermal Resistance Input；
2 * Analog Voltage Output(-10v-10v)

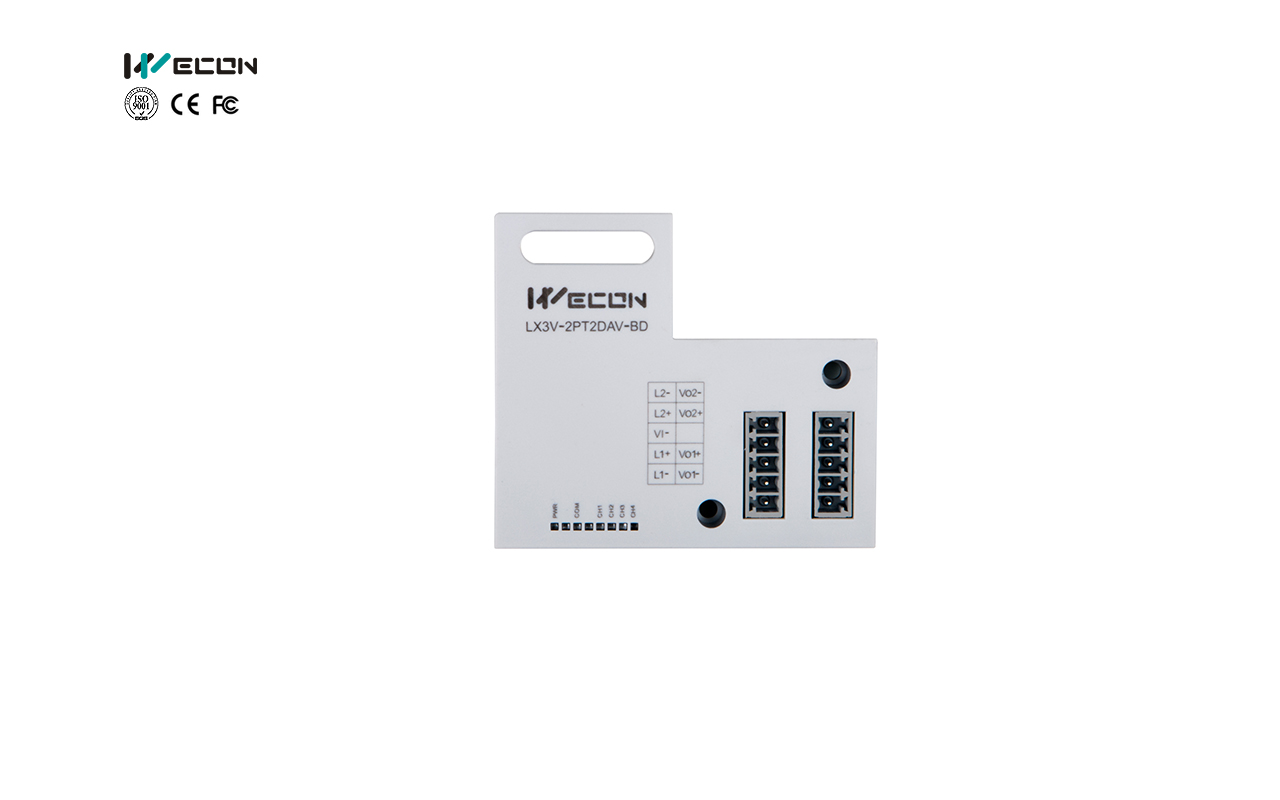

| Item | LX3V-2PT2DAI-BD | LX3V-2PT2DAV-BD |
| Power supply | 24VDC±10%，50mA; 5VDC±10%, 70mA (Powered by PLC host) | 5VDC±10%, 70mA (Powered by PLC host) |
| Temperature input (PT) | ||
| Analog input signal | PT100 sensor, 3 wires, 2 channels (CH1, CH2) | |
| Sensor current | 1mA sensor: 100Ω(PT100) | |
| Compensation range | -100 ℃ - 600 ℃ | |
| Digital output | -1000 – 6000 (Unit: 0.1 ℃) | |
| 12 bits total, 11 bits for data and 1 bit for sign | ||
| Accuracy | 0.2 ℃ - 0.3 ℃ | |
| Overall accuracy | ±0.5% | |
| Conversion rate | 50ms | |
| Conversion characteristics |  | |
| Analog output (DAI) | Analog output (DAV) | |
| Rated range | 4~20mA: 0~2000 | -10V~10V: -2000~2000 |
| Analog output | DC 4~20mA (the external load resistance is no less than 500Ω) | DC-10V~10V (the external load resistance is no less than 2KΩ) |
| Digital output | 12 bit binary | |
| Resolution | 8uA[4~20mA / 2000] | 5mV[10V default scope 1/2000] |
| Precision | ±0.5% of full scale | |
| AD conversion time | One PLC scanning cycle | |
| Input characteristics | The external load is 250Ω and 0-2000 is converted to 4-20mA
|  |
| Insulation | No insulation in each PLC channel | |
| Occupied points | None | |
