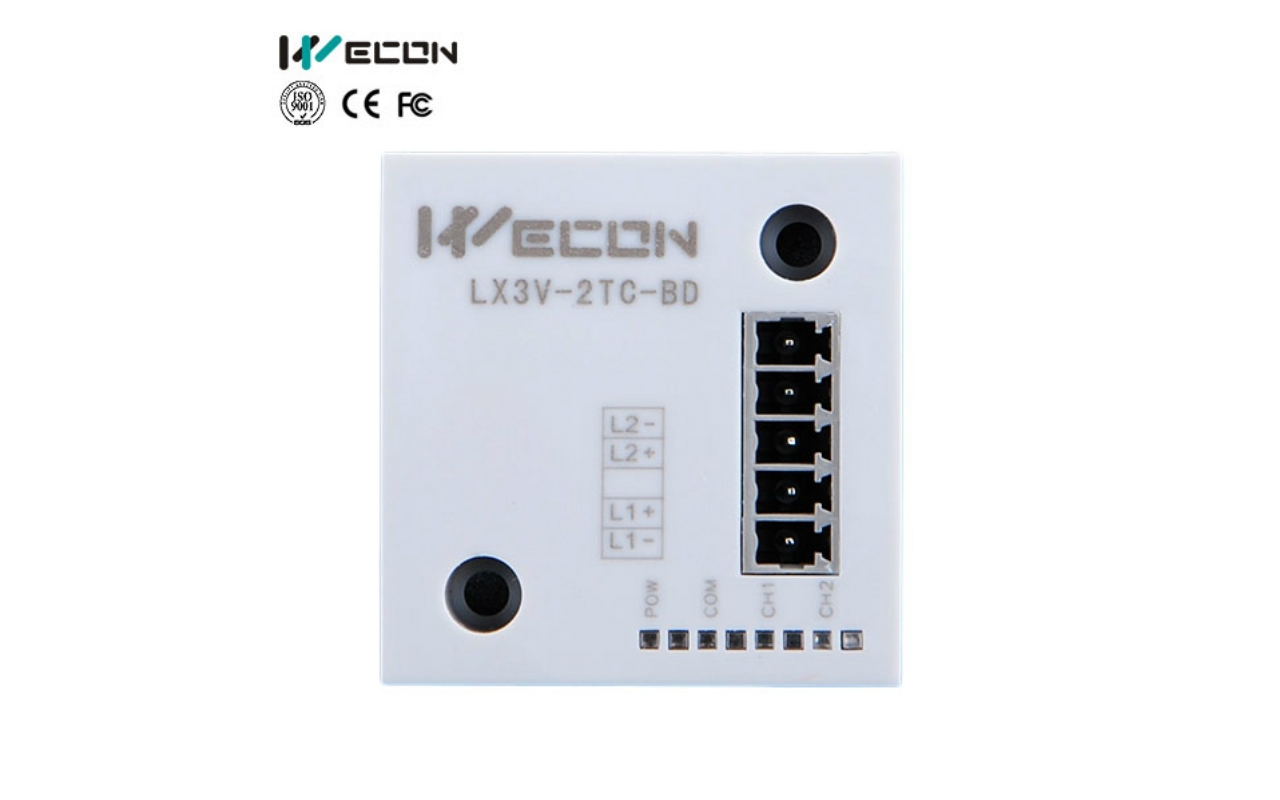

2 channels Thermocouple Input Module
| Item | LX3V-2TC-BD | |||
| Analog circuitry | DC 24V ±10%, 70mA | |||
| Digital circuitry | DC 5V, 90mA (From the PLC internal power supply) | |||
| Temperature | Read data by buffers | |||
| Analog input signal | Thermocouple: K or J type (2 channels) | |||
| Range of rated temperature | K | -100℃ - 1200℃ | J | -100℃ - 600℃ |
| Digital output | K | -13000 | J | -7000 |
| 12 bits total | ||||
| Accuracy | K | 0.4℃ | J | 0.3℃ |
| Overall accuracy | ±0.5% | |||
| Conversion rate | 700ms*2 | |||

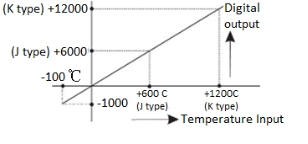

| Conversion characteristics |
| |||
