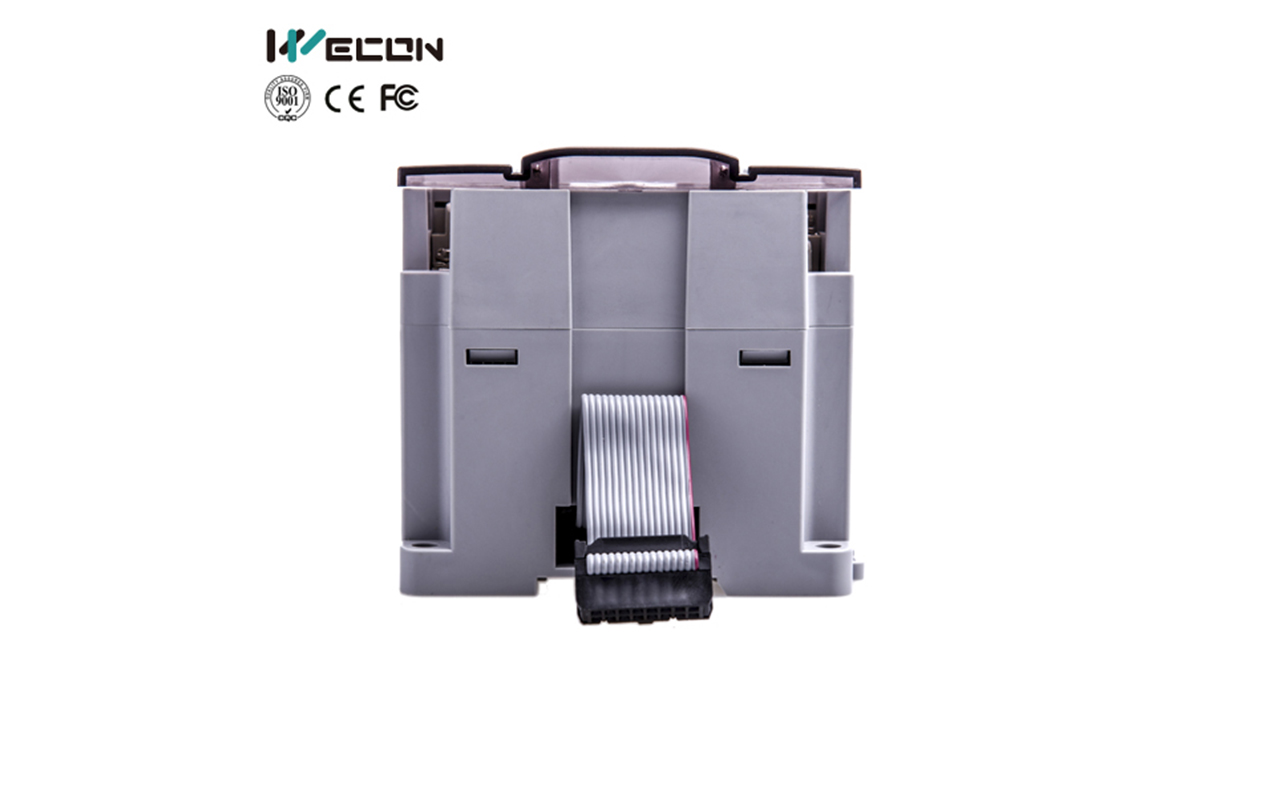

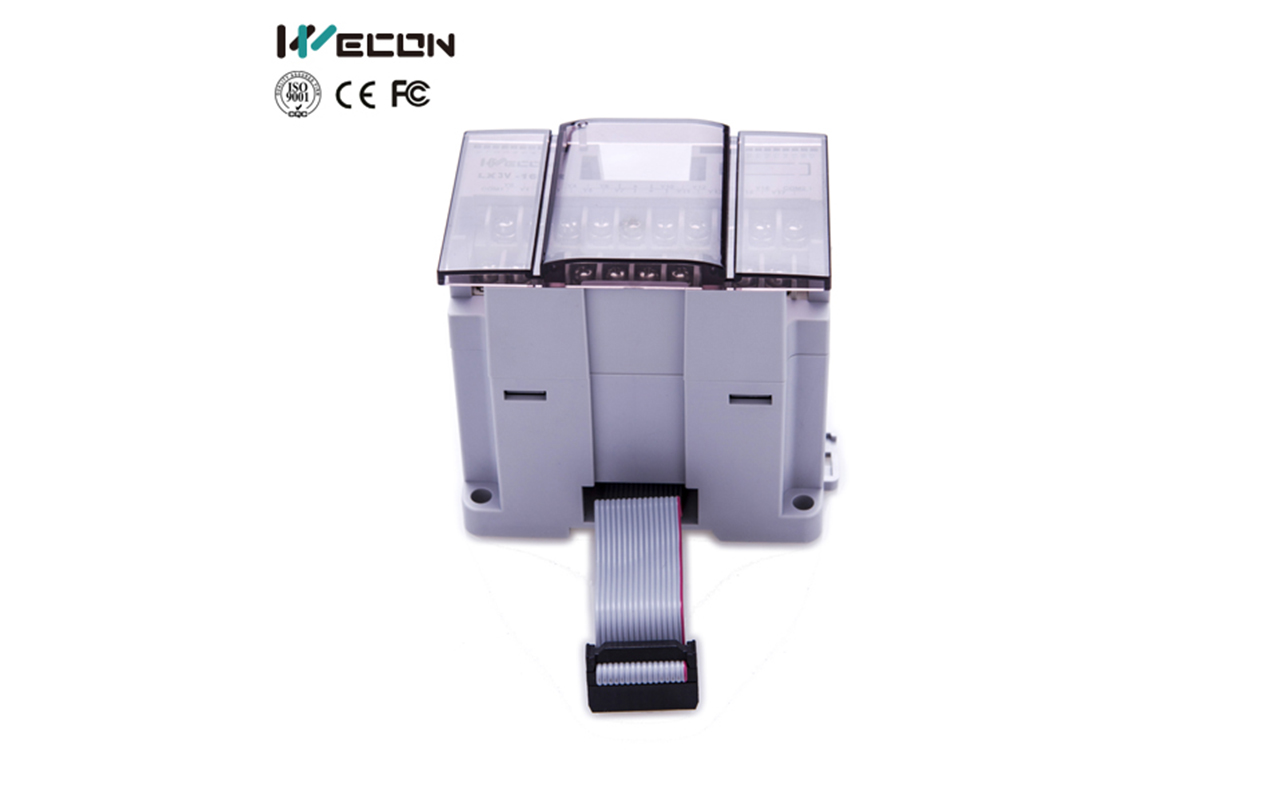

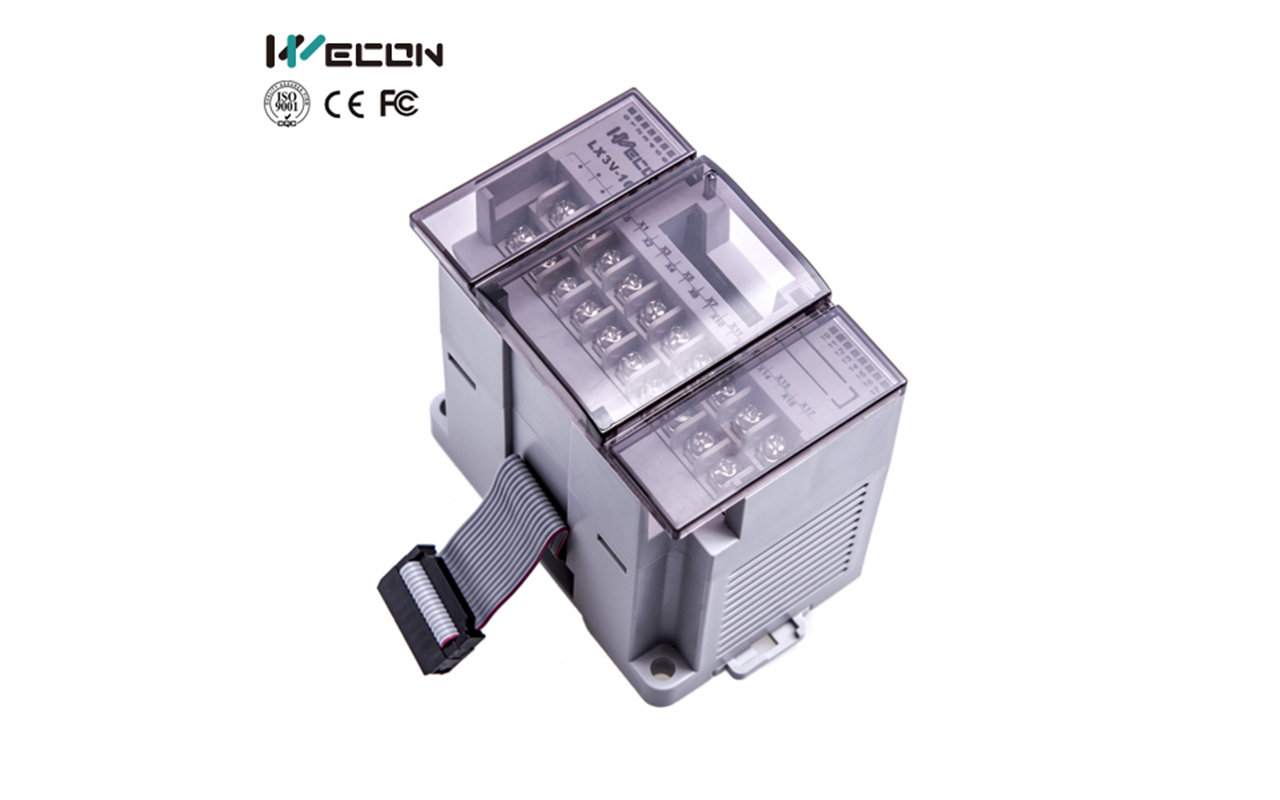

LX3V-1WT/LX3V-1WT-L/LX3V-2WT/LX3V-2WT-L

Weighting Expansions

Software&manual Inquiry sales@we-con.com.cn
Specification
Physical & Electrical


ModelChannelsResolutionFunctionality
LX3V-1WTV2124 bitsweighing module
LX3V-1WT-L118 bitsweighing module
LX3V-2WT224 bitsweighing module
LX3V-2WT-L218 bitsweighing module


Specification

ItemLX3V-1WTLX3V-1WT-LLX3V-2WTLX3V-2WT-L
ChannelSignal channelDouble channels
Speed7.5/10/25/50/60/150/300Hz available
PolarityUnipolar and bipolar
Non-linearity≤0.01% full scale(25°C)
Zero drift≤0.2μV/ °C
Gain drift≤10ppm/ °C
Excitation Voltage/ load5V, load impedance≥200Ω
Sensor sensitivity1mV/V-15mV/V
IsolationTransformer (power supply) and the optical coupler (signal)
LampPower supply lamp, communication lamp
Power supply24V±20% 2VA
Operating temperature0~60 °C
Storage temperature-20~80 °C
Dimension90(L)x58(W)x80(H) mm
CE CertificationCE marked
