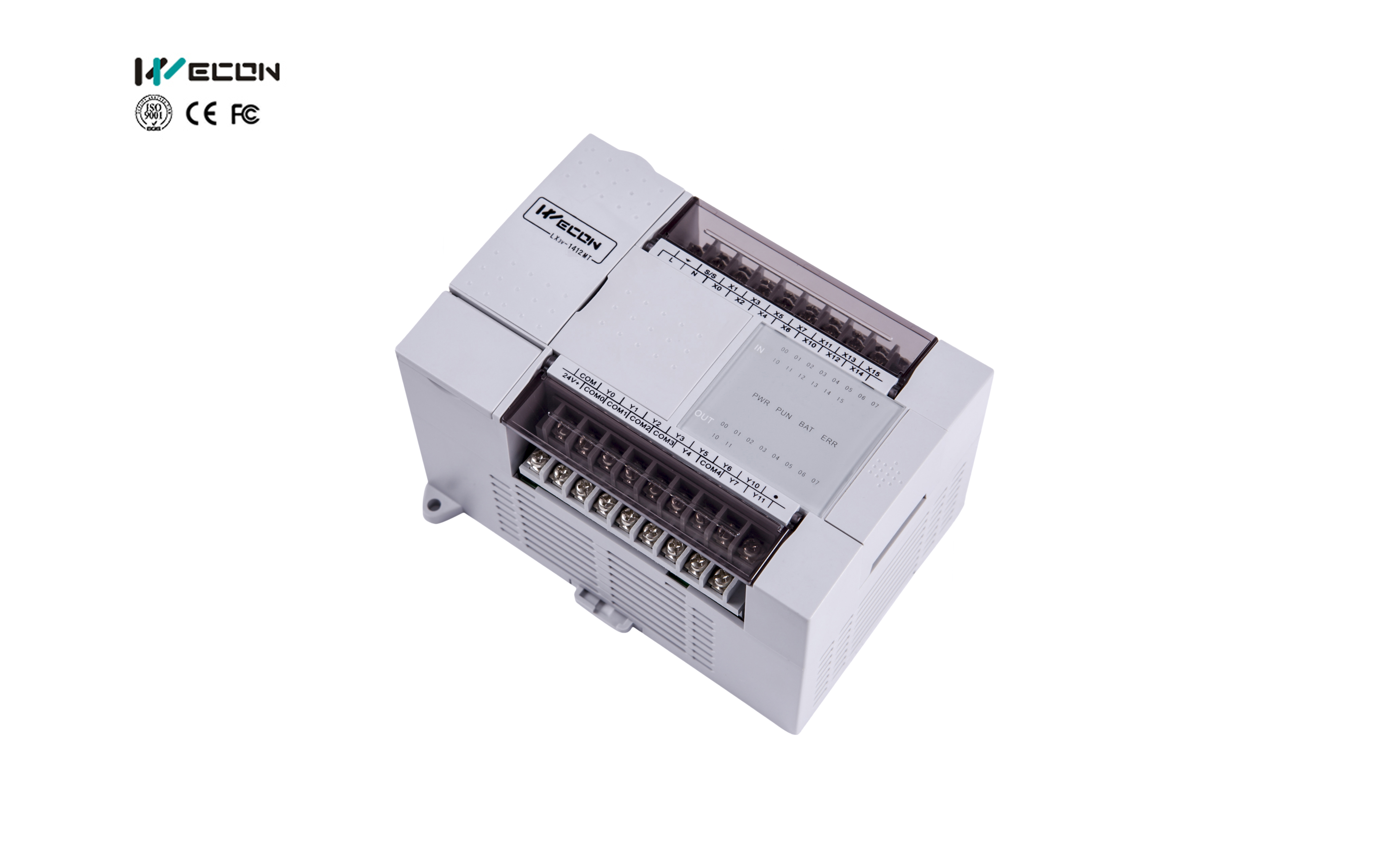

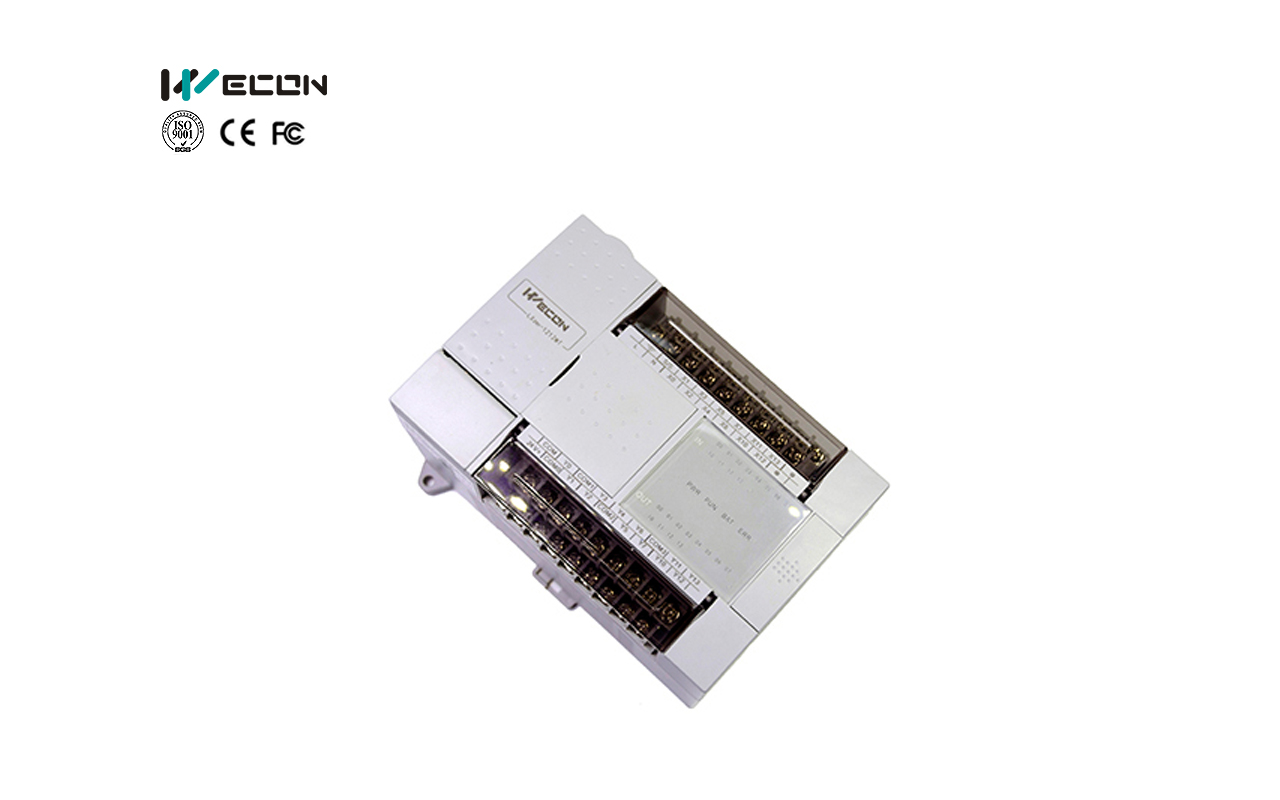

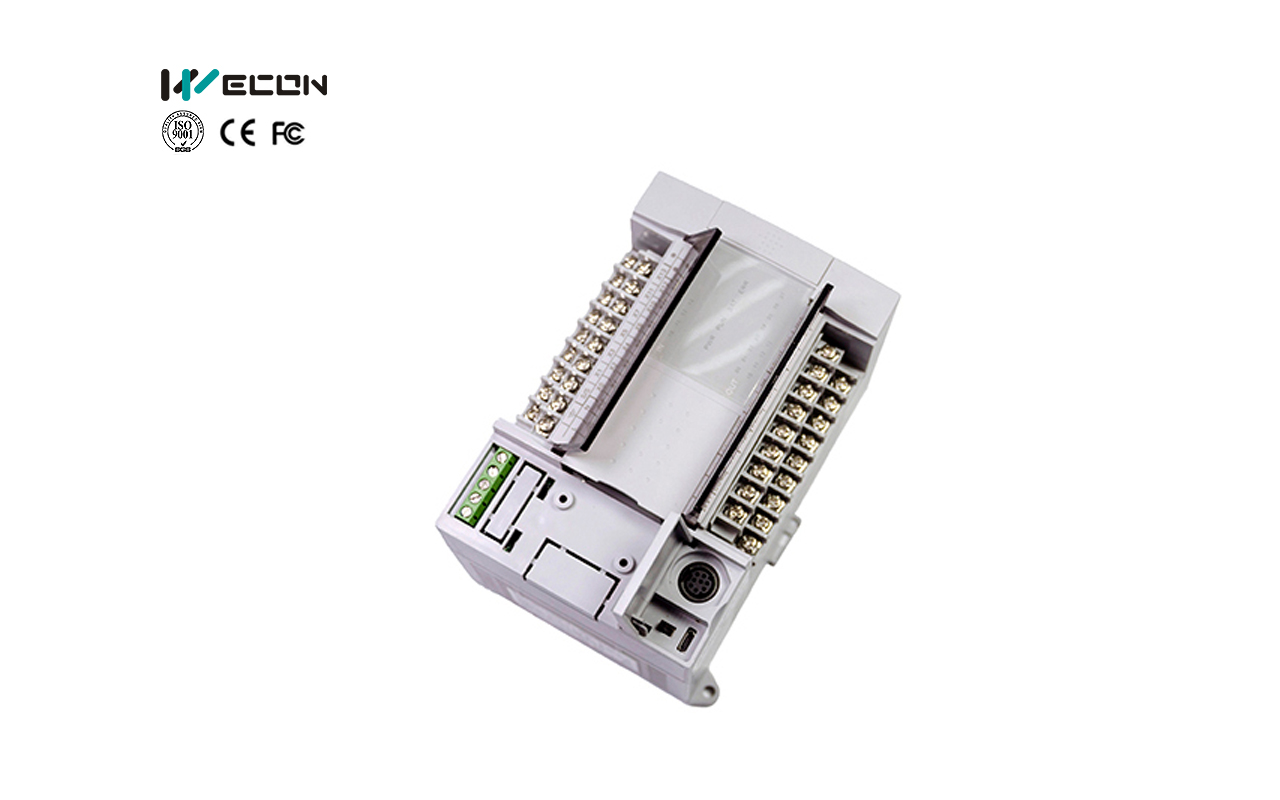

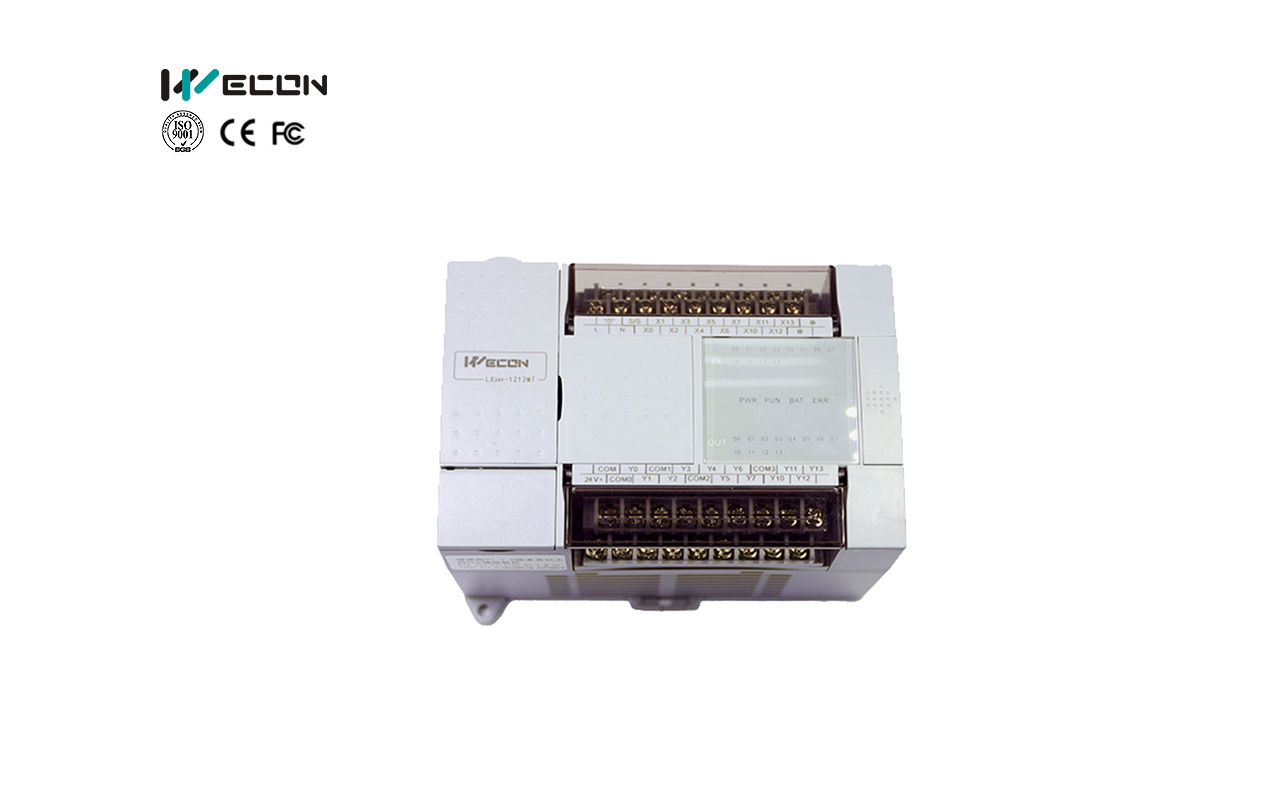

LX3VP 1212M/1412M PLC

◇Power supply:A: AC100-240V power,D:DC24V power. 20W rated power

◇IO: 12xDI/12xDO(Transistor-type),2-channel 200K high-speed pulse output

◇Port:RS422, RS485,1 BD board supported.

◇Protocol:  2N NO PROTOCOL, LX3VP PROTOCOL

◇Support 64K-step ladder.

◇Support N:N PLC network up to 8 PLCs;

◇T50~T191 can be changed to 1ms timers by M8028


Software&manual Inquiry sales@we-con.com.cn
Specification
Physical & Electrical

Model

I/O

Output Type

Pulse

Output

RS485

BD

Board

Module

LX3VP-1212MT-A

12  |  12

T

2

2

1

√

LX3VP-1212MR-A

12  |  12

R

0

2

1

√

LX3VP-1212MR2H-A

12  |  12

R/T

2

2

1

√

LX3VP-1212MT4H-A

12  |  12

T

4

2

1

√

LX3VP-1412MT-A

14  |  12

T

2

2

1

√

LX3VP-1412MR-A

14  |  12

R

0

2

1

√

LX3VP-1412MR2H-A

14  |  12

R/T

2

2

1

√

LX3VP-1412MT4H-A

14  |  12

T

4

2

1

√

LX3VP-1212MT-D

12  |  12

T

2

2

1

√

LX3VP-1212MR-D

12  |  12

R

0

2

1

√

LX3VP-1212MR2H-D

12  |  12

R/T

2

2

1

√

LX3VP-1212MT4H-D

12  |  12

T

4

2

1

√

LX3VP-1412MT-D

14  |  12

T

2

2

1

√

LX3VP-1412MR-D

14  |  12

R

0

2

1

√

LX3VP-1412MR2H-D

14  |  12

R/T

2

2

1

√

LX3VP-1412MT4H-D

14  |  12

T

4

2

1

√

GENERAL

Item

LX3VP Series

Running Mode

Round Scan/ Interrupt

Programming

Instruction List/ Ladder

Total Instructions

Basic Instructions: 27 / Applied Instruction: 138

Execute time

Basic Instructions: 0.06us / Applied Instruction: 1~10us

System Storage

64K

Download/ Monitoring

Serial Programming Cable / Mini USB

High Speed Pulse Output

Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional)

External Interrupt

6 Channels

Timer Interrupt

3 Channels

Holding Addresses

Adjustable

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1: RS422 or RS485

COM2: RS485

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃

Humidity

5~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<35W

<30W

Power Output

DC 24V 850mA

No



OUTPUT

Item

Relay

Transistor

Output Mode

--

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or < DC 30

DC 5~30V

COM Port Current

--

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

--

0.1mA / DC 30V

Min. Load

--

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
