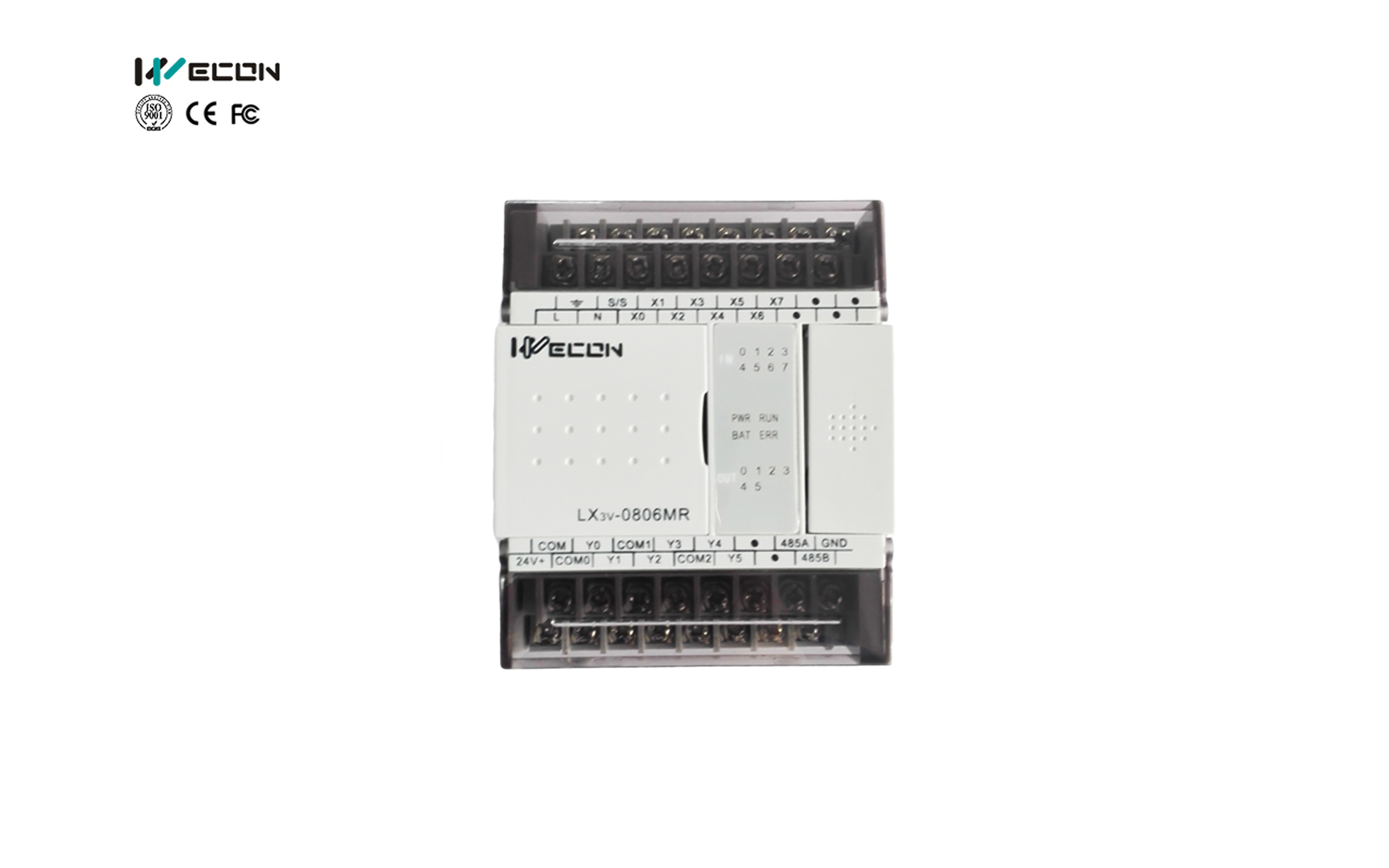

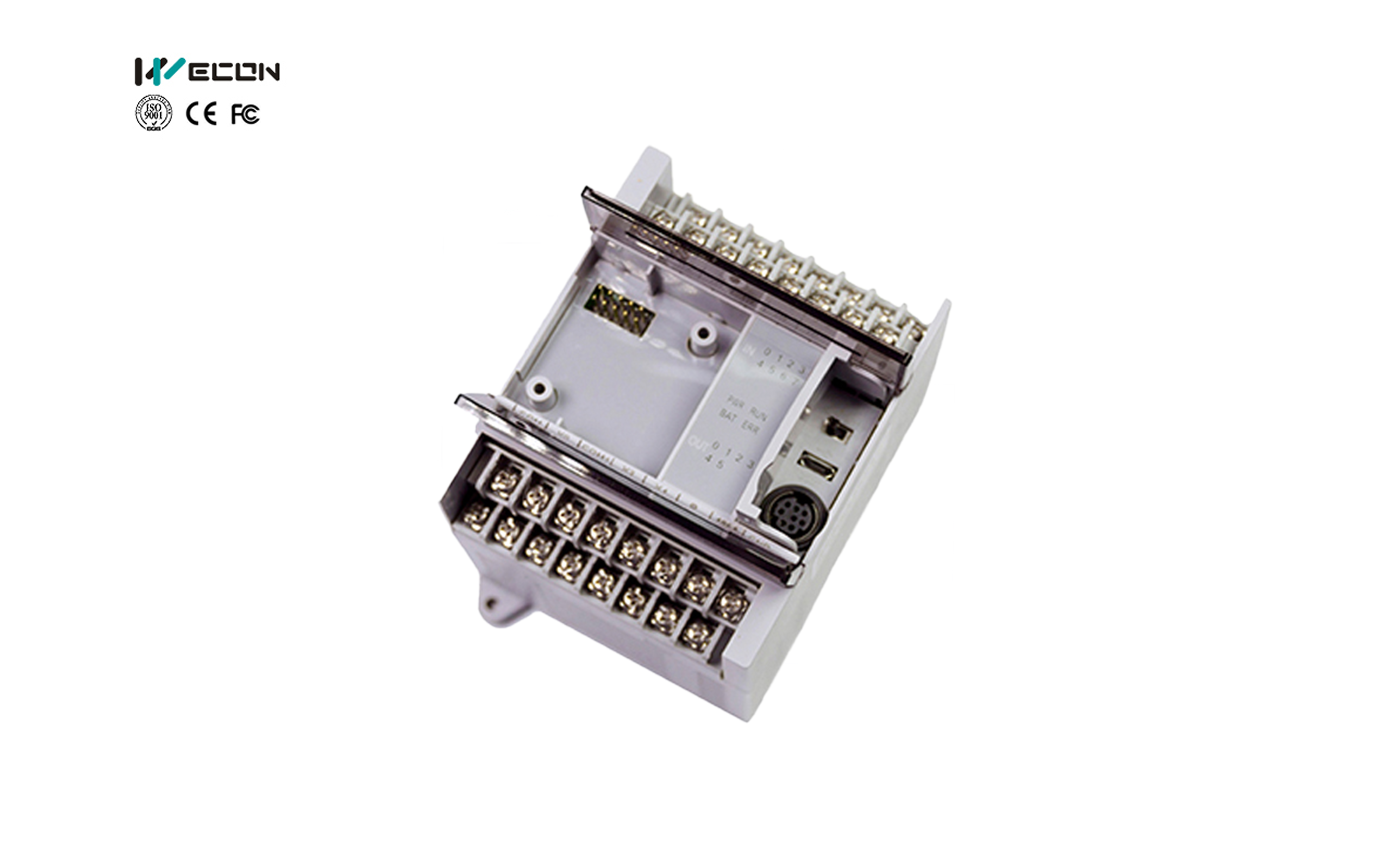

◇Power supply: A: AC85-265V power,D:DC24V power.50W rated power
◇IO: 8xDI/6xDO(transistor-type),2-channel 100K high-speed pulse output
◇Port:RS422, RS485 and 1 BD board supported.
◇Protocol: LX3V-0806MT-A(D)1 ：1S NO PROTOCOL
LX3V-0806MT-A(D)2 ：2N NO PROTOCOL
Model | I/O | Output Type | Pulse Output | RS485 | BD Board | Module |
LX3V-0806MR-A2 | 8 / 6 | R | 0 | 1 | 1 | × |
LX3V-0806MT-A2 | 8 / 6 | T | 2 | 1 | 1 | × |
LX3V-1208MR-A2 | 12 / 8 | R | 0 | 1 | 1 | × |
LX3V-1208MT-A2 | 12 / 8 | T | 2 | 1 | 1 | × |
LX3V-1208MR-A2 | 12 / 8 | R | 0 | 1 | 1 | × |
LX3V-1208MR2H-A2 | 12 / 8 | R/T | 2 | 1 | 1 | × |
LX3V-0806MR-D2 | 8 / 6 | R | 0 | 1 | 1 | × |
LX3V-0806MT-D2 | 8 / 6 | T | 2 | 1 | 1 | × |
LX3V-1208MR-D2 | 12 / 8 | R | 0 | 1 | 1 | × |
LX3V-1208MT-D2 | 12 / 8 | T | 2 | 1 | 1 | × |
LX3V-1208MR-D2 | 12 / 8 | R | 0 | 1 | 1 | × |
LX3V-1208MR2H-D2 | 12 / 8 | R/T | 2 | 1 | 1 | × |

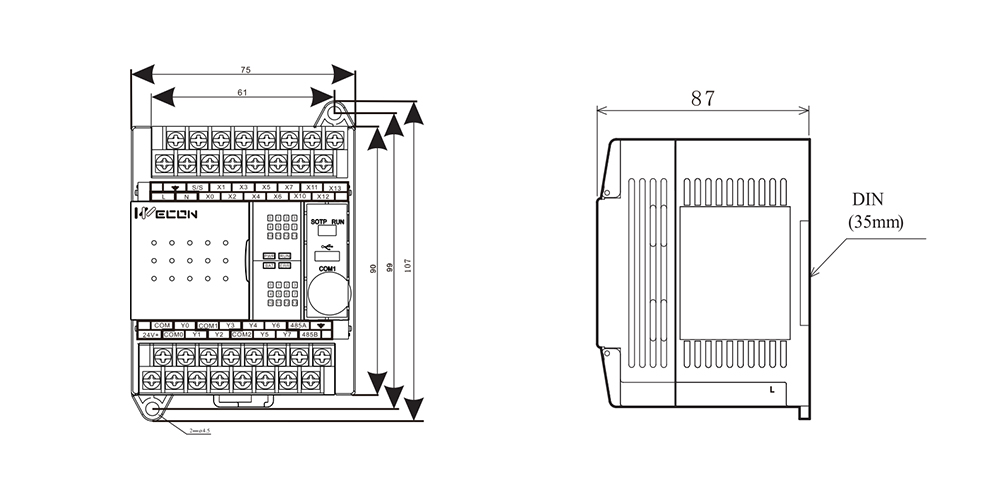

GENERAL
Item | LX3V Series |
Running Mode | Round Scan/ Interrupt |
Programming | Instruction List/ Ladder |
Total Instructions | Basic Instructions: 27 / Applied Instruction: 138 |
Execute time | Basic Instructions: 0.06us / Applied Instruction: 1~10us |
System Storage | 16K |
Download/ Monitoring | Serial Programming Cable / Mini USB |
High Speed Pulse Output | Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional) |
External Interrupt | 6 Channels |
Timer Interrupt | 3 Channels |
Holding Addresses | Adjustable |
Storage | FLASH |
Filter | For all X input terminals |
Serial Port | COM1: RS422 COM2: RS485 |
Temperature | Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃ |
Humidity | 5~ 85%RH (Without condensation) |
Shock Resistance | JIS C 0040 Standard |
Influence Immunity | Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min. |
POWER SUPPLY
Item | AC | DC |
Power Supply | AC 85~265V 50 ~ 60Hz | DC 24V±10% |
Power Outage Time | 10ms | 10ms |
Power Fuse | 250V 3.15A | 250V 3.15A |
Rush Current | <15A 5ms / AC 100V; <30A 5ms / AC 200V | <15A 1ms / DC 24V |
Power Consumption | <35W | <30W |
Power Output | DC 24V 850mA | No |
OUTPUT
Item | Relay | Transistor | |
Output Mode | -- | NPN | |
Input Power Supply | DC 24V | DC 24V | |
Output Circuit | <AC 250V or < DC 30 | DC 5~30V | |
COM Port Current | -- | <0.1mA (DC 30V) | |
Insulation | Mechanistic | Optical Coupling | |
Leak current | -- | 0.1mA / DC 30V | |
Min. Load | -- | DC5V 2mA | |
Max. Load | Resistive | 2A point 8A COM port | 0.5A point 0.8A COM port 0.3A HSPO point |
Inductive | 80VA | 12W/DC24V 7.2W HSPO point | |
General | 100W | 0.9W/DC 24V | |
Response Time | <10ms | <0.2ms (Pulse output terminal: <5us) | |
